Soome Ink Circulation Pneumatic Diaphragm Pump For Flexo Printing Machine

Place of Origin Heibei Province China
Brand Name SOOME
Certification CE Certification
Minimum Order Quantity 2 set
Price negotiation
Packaging Details Carton packaging with plastic filling
Delivery Time 10 days after deopist
Payment Terms Western Union, T/T, L/C
Supply Ability 1000 per/mounth
Product Details
Voltage 220V/380V/440V Warranty 30 Days
Automatic Grade Automatic Power Pneumatic
Flux 10L/min Usage Air Pump
Fuel Diesel, Pneumatic Solid Particle Limit 2mm
High Light

pneumatic ink pumps flexo


ink circulation pneumatic diaphragm pump


flexo printing machine pneumatic diaphragm pump

Leave a Message
Product Description

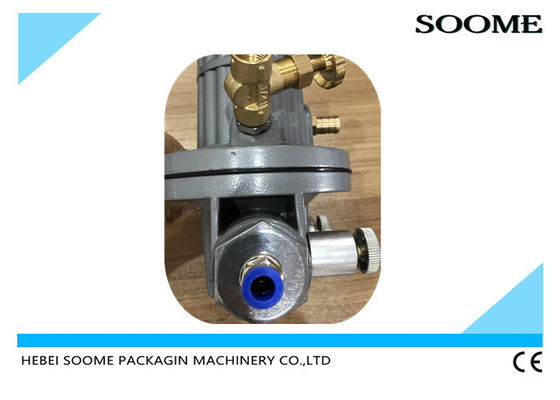

SOOME Flexo Printing Machine Pneumatic Ink Circulation Diaphragm Pump
Pneumatic diaphragm pump is a new conveying machine, which is the latest novel kind of pump. Compressed air as the power source, it can be use in any corrosive liquid, liquid with particle, high viscosity, easy volatile, inflammable, highly toxic liquid.
There are four materials in Pneumatic Diaphragm Pump: plastic, aluminum alloy, cast iron and stainless steel. The diaphragm pump will adopt Buna-N rubber, Chloroprene rubber, fluororubber, PTFE, according to the different liquid and to meet customers’ need. Place in all kinds of special occasion; use to pumping the medium which the general pump cannot do so. And it is gain a satisfied effect.
Thus the above features that pneumatic pump possessed, this kind of pump is gradually invaded other pump market when it is born and cover a part of it. Such as painting, ceramic industry, printing industry, the pneumatic pump has an absolute dominant position.
1. Because it is using air as power, the diaphragm pump does not heat and produce sparks; suitable for use in flammable and explosive environment.
2. Use PTFE diaphragm, can be used for chemical properties relatively volatile liquid, corrosive medium.
3. Diaphragm Pump can pump particle liquid;
4. The liquid can be conveyed by diaphragm pump is wide, the viscosity from low to high, from corrosive liquid to viscous liquid.
5. Diaphragm Pump is small, light and easy to move.
Used for water-based ink printing machine, gravure printing, flexo printing and composite glue machine and the liquid with particle, all kinds of the cycle of flammable liquid delivery system.



1. Inlet or outlet PV Tube: 2m(Respectively)

2. A strainer set

3. A G shaped fixation clamp

Usage Machine feature:
The main electric elements all adapt French Schneider brand. Name-brand PLC controlling, colorful touch screen , frequency converter.
The transmission gear adopt 40 Cr, 20GrMo Ti high quality alloy steel which is grinded, and after the heat treatment ,it can up to six grade precision.
The machine lubrication system uses an automatic spray lubrication, and with the device impermeable to oil spills institutions.
Each unit of the machine with electric separation, and pneumatic locking, pneumatic total lock, to ensure the stability of the unit, and continue ring for caution when machine be separated, to ensure the safety of operating person.
Every unit of machine with emergency stop switch, so the machine can be stopped between the unit, it can ensure the workers safe (remark: every unit moving is drag by feeder unit

Main parameter

Model Unit  all type carton printing machine
Plate roller diametermm¢300/380/420/500
Board thicknessmm2-12
Print plate thicknessmm7.2
Print roller axle circle-oriented regulatingdegree360°revolving
Topping precisionmm±0.5

Printing unit:
1. Printing of high quality thick-walled seamless steel roll, surface conditioning, grinding, hard chromium plating.
2. All axes of roller correct by dynamic balance, the machinery running steady.
3.  Handling print, the foot switch is convenient and flexible electric control reversing.
4. Printing , roller clearance adjusted by hand, the scale panel shows the data.
5. Printing phase fixed device, using pneumatic brake mechanism. While the machine separates or the phase is adjusting, the brakes can restrict the revolving of the machine platform and keep the fixed point of original gears position.
6. roller diameter Φ300mm, diameter with printing plate Φ312mm, adopt high quality thick seamless steel pipe, with surface grinding, hard chrome plating.
7. Use famous Dalian Tengda anilox roller, high quality steel, mesh is 220LPI or 250LPI as per customer need.
Rubber roller adopt high quality wear / oil and acid-base resisting, medium height grinding, better ink distribution effect.
8. The printing roller pressure adopt high precision crosshead shoe gapless adjustment to do micro adjustment, can make the printing pressure reach the best condition.
After-Sales Service:
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: DHL, TNT USP etc.
Q3. How about your delivery time?
A: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days.
Generally speaking, all of the goods can be reach your address within 4 weeks.

Q4. Can you produce according to the samples?
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: e can supply the sample , but the customers have to pay the sample cost and the courier cost.
