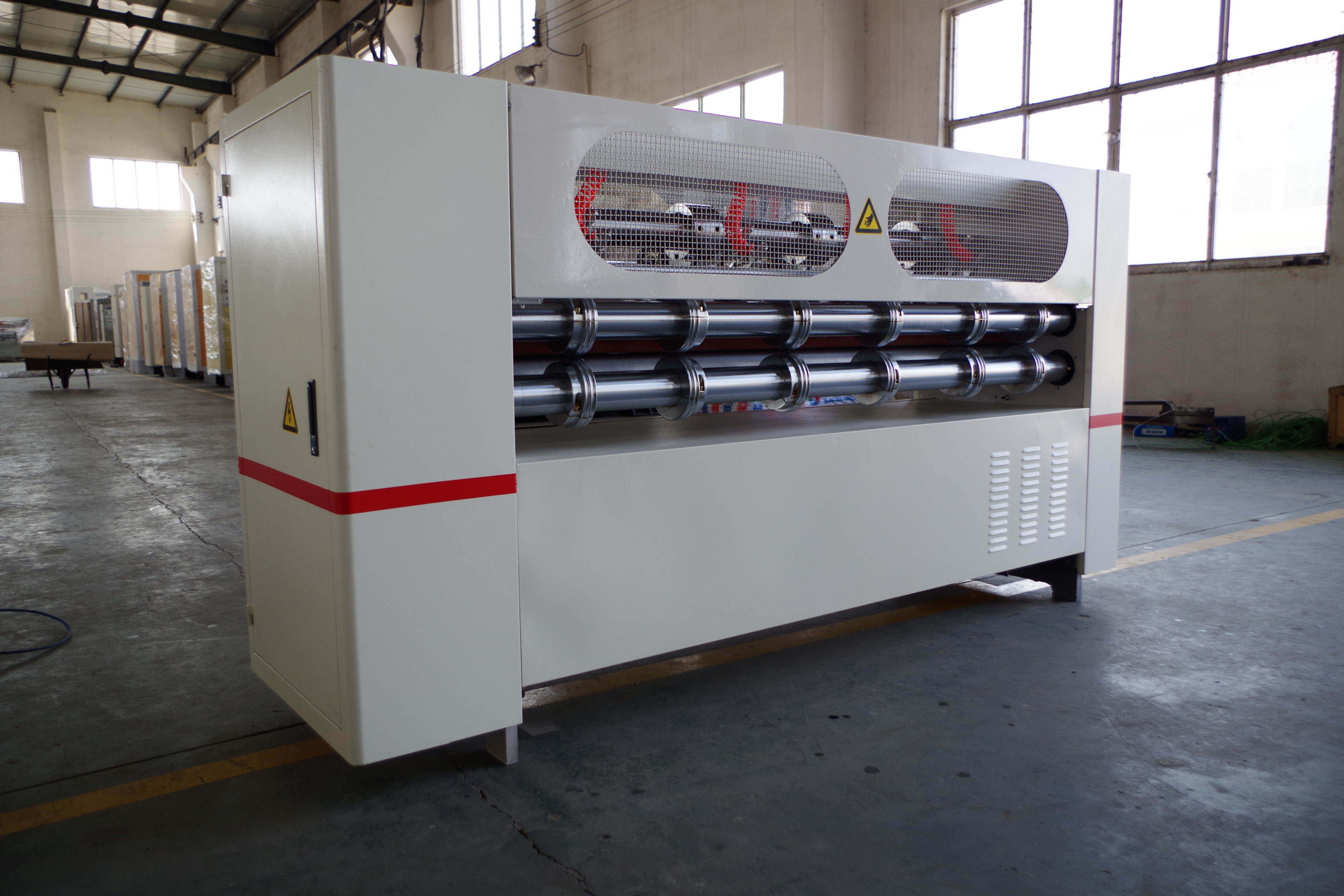

120mm Min Slitting Width Manual Adjustment Thin Blade Slitter Scorer
| Place of Origin | Made in China |
|---|---|
| Brand Name | SOOME |
| Certification | CE |
| Model Number | SMBD-PT-2500 |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | wooden case or film. |
| Delivery Time | 14 days after deposit |
| Payment Terms | L/C, T/T, MoneyGram |
| Supply Ability | 20 sets per month |
Product Details
| Product Name | Manual Adjustment Thin Blade Slitter Scorer | Driven Type | Manual Adjustment |
|---|---|---|---|
| Type | Thin Blade Slitter Scorer | Function | For Corrugated Paper Dividing Creasing |
| Keywords | Thin Blade Slitter Scorer Machine | Voltage | 220V/380V/440V |
| Place Of Origin | Hebei, China | Blade Size | 190*122 |
| Power | 5.5kw | Grinding Type | Pneumatic |
| High Light | manual adjustment thin blade slitter scorer,120mm width thin blade slitter scorer,width 120mm thin blade slitter scorer |
||
Product Description
120mm Min Slitting Width Manual Adjustment Thin Blade Slitter Scorer
1. Summarize
120mm Min Slitting Width Manual Adjustment Thin Blade Slitter Scorer used for slitting corrugated paperboard, adopting high quality tungsten steel blades, sharp and long working-life, slicing tidyly. 5 points scoring of the 120mm Min Slitting Width Manual Adjustment Thin Blade Slitter Scorer, scoring distance in-phase adjust, blazonry and easy to bend 2-10mm thickness corrugated paperboard. Minimum the length of feeding paperboard is 260mm.
2. Features and Functions
1) Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
2) Grinding part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work
efficiency.
3) Press the thread first, then slit, and finally the paper-feeding rubber shaft.
4) Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
3. Technical Parameters
| 型号 | Model | 2000 | 2200 | 2500 | 2800 | 3000 |
| 有效分切 | Max slitting size(mm) | 1800 | 2000 | 2300 | 2600 | 2800 |
| 最小分切 | Min slitting size(mm) | 120 | ||||
| 最小分切长度 | Min slitting length(mm) | 400 | ||||
| 最小压线尺寸 | Min scorer width(mm) | 30 | ||||
| 压痕高度 | Scorer height(mm) | 0-12 | ||||
| 刀片规格 | Blade size(mm) | 190*122 | ||||
| 刀线配置 | Blade/scorer | 4/6 ,5/8 ,6/10,7/12,8/14 | ||||
|
尺寸 (长宽高) |
Machine dimension (LWH) |
2630*700* 1350 |
2830*700* 1350 |
3130*700* 1350 |
3430*700 *1350 |
3630*700* 1350 |
| 功率 | Power | 4 | 4 | 5.5 | 5.5 | 7.5 |
