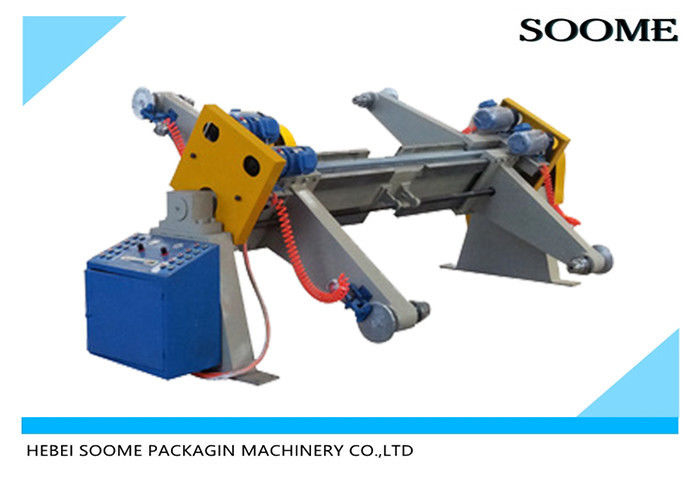

Automatic Adjust 1600mm Width Mill Roll Stand Electric Drive

Automatic Adjust 1600mm Width Mill Roll Stand Electric Drive

  • Automatic Adjust 1600mm Width Mill Roll Stand Electric Drive
  • Automatic Adjust 1600mm Width Mill Roll Stand Electric Drive
Automatic Adjust 1600mm Width Mill Roll Stand Electric Drive
Product Details:
Place of Origin: Made in China
Certification: CE
Model Number: SMYZJ-1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case or film
Delivery Time: 14 days after deposit
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Brand Name: SOOME Condition: New
Machine Type: Holding Paper Rolls Drive Source: Electric
Max.Design Speed: 80-120m/min Work Width: 1600mm/1800mm/2000mm/2200mm/2500mm
Name: Electric Mill Roll Stand Machine Key Selling Points: Easy To Operate
Power: 6.5kw Weight: 2T
High Light:

1600mm width mill roll stand

,

1.6m width mill roll stand

,

odm mill roll stand

1600mm Width Automatic Adjust Electric Drive Mill Roll stand

1. Summarize


1600mm Width Automatic Adjust Electric Drive Mill Roll stand Machine, the use of electric original clamp, loosen, movement, center, left and right translation and other actions;
The butterfly disc system for mill roll stand machine is used for brake adjustment.
With double level automatic expansion type paper clip, clip head is three inches in the mill roll stand machine.



2. Features and Characteristics



1). Mill roll stand is important unit in the corrugated cardboard production line, it is used to hold the roll paper (liner board and medium board), and adjust tension of paper keep paper go in next unit smoothly.
2). Four arms are symmetrical in two sides, it can hold 2 rolls of paper one time.
3). Roll paper lift-lower, clamp, loosen, movement, contra position operated by motorize.
4). It used pneumatic brake to adjust tension of paper.
5). Bulge clamp reduce paper waste.
6). It used cycloid motor to control arm clamp and lift-down, when the arm carry overload or touch on floor the motor can protect machine from damage.



3. Technical Parameters



Type SMYZJ-1600/1800/2000/2200/2500
Max length 1900mm/2100mm/2300mm/2500mm/2800mm
Work width 1600mm/1800mm/2000mm/2200mm/2500mm
Heating source oil/steam/electricity
Voltage 380V/440V
Speed customized















Automatic Adjust 1600mm Width Mill Roll Stand Electric Drive 0

Automatic Adjust 1600mm Width Mill Roll Stand Electric Drive 1

Automatic Adjust 1600mm Width Mill Roll Stand Electric Drive 2
