| Place of Origin: | Made in China |
| Brand Name: | SOOME |
| Certification: | CE |
| Model Number: | SMBD-160I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Contact |
| Packaging Details: | Wooden case or plastic film ,1*40' Container |
| Delivery Time: | 35 Days |
| Payment Terms: | T/T |
| Supply Ability: | 30Sets/month |
| Usage: | Recycling Used Waste Paper Cardboard | Package Size: | L800~1500mm*W750mm*H750mm |
|---|---|---|---|
| Feed Port Size: | L1000mm*W690mm*H1200mm | Main Cylinder Thrust: | 50T/490kn（25mpa） |
| Bale Line Material: | Annealed Iron Wire Φ3.0~3.2mm | Blade Line Control: | Automatic Winding Baling System |
| Host Machine Size: | L6300*W3300*H2000mm | Installation Size: | L10~15m*W5~8m*H4~6m |
| High Light: | 60t cardboard press machine,waste paper press baler machine,cardboard press baler machine |
||

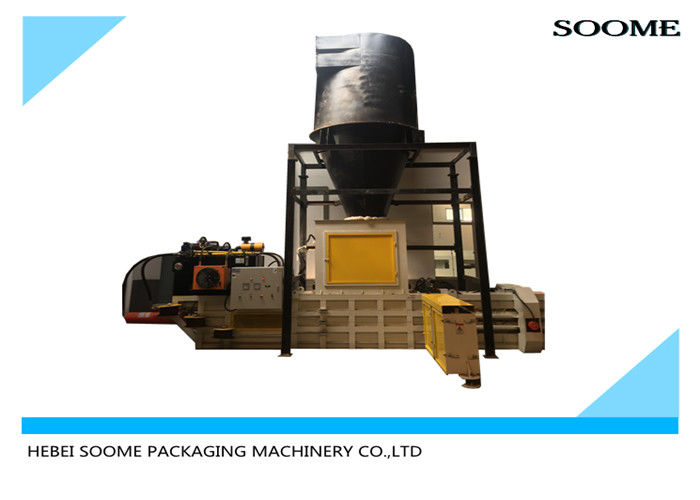

60T Hydraulic Recycling Used Waste Paper Cardboard Press Baler Machine
Automatic compression,automatic wire binding,continuous package,suitable for any installation,solid waste after compressed bundles,easy storage and storage,prevention of fire hazards,reduce transport costs by exceeding national allowable load.
1 . Continuous package,fast package delivery,package length arbitrary setting,high packing density,steady action.low failure rate,increase speed,saving labor costs,saving electricity consumption,can meet all customer output needs.
2 . Hydraulic motor chain drive, curved hook wire binding device, low speed failure rate and easy to clean and maintain
3 . Computer Automation Control: One-click start/auto-press/no personnel control,Schneider(IPC Computer-PLC)/ MCGS(7 inch true color touch screen)Automated man-machine interface(Automation control)Cost savings
4 . Autonics Korea material monitoring system,accurate and stable material detection control to avoid trapezoidal package,Make the package firm, smooth and beautiful
5 . Electrical Safety Control:DC24V isolation power/(Ensuring personal safety)Main power supply overcurrent and overload protection/break item missing item protection/system overpressure protection alarm shutdown/conveyor overload and overcurrent protection/automatic detection/alarm reminder/fault reminder
6 . Using corrugated serrated double-shear swallowtail knife to improve shear efficiency and prolong the service life of the blade
7 . Unique (barrier-free) feed box, feed more smoothly, no jam phenomenon
8 . International standard circuit layout, detailed and clear electrical wiring marking, components control parts marking, improve maintenance efficiency
9 . Hull welding process is adopted to ensure welding strength and more stable and reliable equipment
10 . Wide range of applications: suitable for waste paper, plastic, straw, straw and other soft solid waste compression, to save transportation costs
11 . Photoelectric switch activates baler when charge box is full
12 . Particular anti-slide design of the machine makes nicer bales
13 . Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity
14 . Automatic tension system ensures “brick-like” bales on all loose materials.
Parameter
| Model | SMDB-160I Automatic waste paper baler |
| Machine size | |
| Package size | L800~1500mm*W750mm*H750mm |
| Feed port size | L1000mm*W690mm*H1200mm |
| Compressed cavity size | L2450mm*W750mm*H750mm |
| Host machine size | L6300*W3300*H2000mm |
| Installation size | L10~15m*W5~8m*H4~6m |
| Dynamic system | |
| Main power | YX3-4 series 15Kw/15Hp |
| Main cylinder | Outer diameter Φ194mm/ Inter diameter φ160mm/Core diameter φ110mm/Stroke length 1900mm |
| Main cylinder thrust | 50T/490kn(25mpa) |
| Working pressure | 18~20mpa |
| Main oil pump | High pressure variable plunger pump |
| Performance | |
| pressed density | 200-350Kg/m³ |
| pressing speed | Forward 15.72 s/ Back 8.29 s/ Cycle |
| Suppressed production | Theoretical value: feed 1.5~2.5T hr |
| Automatic hold System | |
| Hold the main cylinder | Φ146mmφ125mmφ70mm-150mm*2set |
| control method | Left and right side telescopic hold (hydraulic cylinder) |
| Automatic control | Set density pressure (automatic control) |
| Hydraulic control | |
| Oil pump | Use high and low pressure with oil pump |
| Oil road control | High and Low Pressure Automatic Variable Speed Valve Body / Control System |
| Hydraulic control | Insert valve integrated forging valve body/control system |
| Solenoid valve control | DC24V Ultra-low voltage (to ensure personal safety) |
| Hydraulic oil capacity | 46#32# Antiwear hydraulic oil/510KG |
| Electrical automatic control system | |
| Suppression control | One-click start-up/automatic suppression/no personnel control |
| operation control | Automated man-machine interface/automated control |
| IPC Computer | Schneider IPC - PLC |
| Touch screen | Siemens 7 inch true color touch screen |
| Material monitoring | Autonics Korea material monitoring system |
| Source | AC380/50hz/3 phase |
| Bale line parameters | |
| Number of bundles | 3 pcs |
| Bale line material | Annealed Iron Wire Φ3.0~3.2mm |
| Blade line control | Automatic winding baling system |
| Cooling Control (Independent Cooling System) | |
| Motor power | YX3-4 series 5.5Kw |
| Oil pump | YUKEN Japan YCY series |
| Chiller | Risen * Air-cooled |
Configuration list
| Main motor | Hengshui |
| Hydraulic valve | Beijing huade |
| Material monitoring | Autonics |
| Hydraulic fittings | Beijing huade |
| Oil seal | Taiwan EK |
| PLC | Schneider |
| Touch screen | Siemens |
| low-voltage apparatus | Schneider |
| Breaker | Schneider |
| Cooler | Risen |
| oil pump | Qidong |
| Pipeline | Lead Flex |
| Bearing | HRB |
