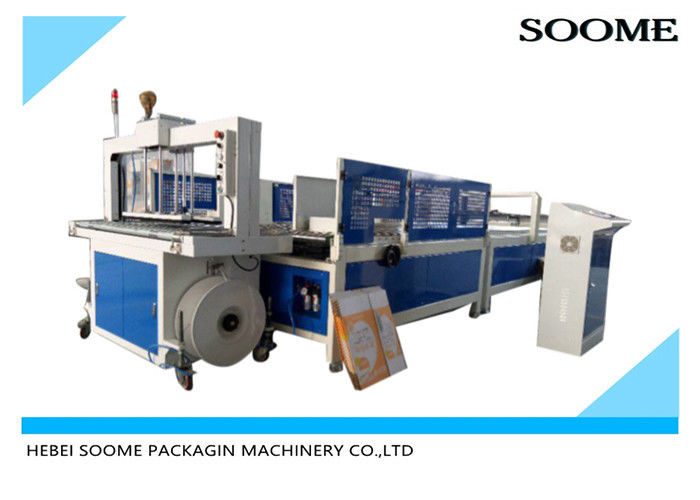

Heat Fusion Power 3kw Corrugated Box Strapping Machine And Bundler

Place of Origin Made in China
Brand Name SOOME
Certification CE
Model Number SMQDB-2000
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Wooden case or film
Delivery Time 14 days after deposit
Payment Terms L/C, T/T, MoneyGram
Supply Ability 25 sets/month
Product Details
Type Automatic Strapping And Bundling Machine Condition New
Brand Name SOOME Color Customized
Driven Type Electric And Pneumatic Place Of Origin Hebei, China
Voltage 220/380V 50Hz/60Hz After-sales Service Provided Engineers Available To Service Machinery Overseas
Packaging Material Plastic Certification CE
High Light

3kw corrugated box strapping machine

,

corrugated box strapping machine and bundler

,

carton strapping machine and bundler

Leave a Message
Product Description

Heat Fusion Power 3kw Corrugated Carton Box Bundler And Strapper

1. Summarize



While using the strapper and bundler machine, workers must understand the function of each switch to run correction, safe operation of the strapper and bundler machine, so as to avoid the cost of the strapper and bundler machine can not run.



2. Features and Functions




1). Turn on Push
After the Corrugated Carton Box Bundler And Strapper starts, press the start button, the Corrugated Carton Box Bundler And Strapper starts to work properly.
2). Reset button
The Corrugated Carton Box Bundler And Strapper in an emergency stop, suddenly cutting off or after the failure of the boot, pressing the reset button for 3 seconds to complete the whole Corrugated Carton Box Bundler And Strapper reset.
3). Safety Push
Press the emergency stop switch, the power indicator light is still on, the rest of the action to stop. No matter what kind of machine, if the Corrugated Carton Box Bundler And Strapper immediately stop running, just press this switch can, if need to restart, in accordance with the direction of the arrow on the switch to a point, then press the reset button, so that the Corrugated Carton Box Bundler And Strapper reset and then start work.

4). Convey Selection Push
(1) while button is in the auto gear, the Corrugated Carton Box Bundler And Strapper automatically carries on the box.
(2) while button is in the position of the transmission, the Corrugated Carton Box Bundler And Strapper is only the delivery table work, the product of the input only forward.

5). Touch Screen
Users could make choices according to the strapping requirements of the operation of the Corrugated Carton Box Bundler And Strapper.



3. Technical Parameters



Name Parameter
Driven Type Electric
Weight 15pcs/min
Operating capacity 9-18 pieces/ min
Belt width 5mm
The bandwidth 5 mm - 9 mm, optionally
Glue way Heat fusion
The tape reel 200-210 mm
The outer diameter 400-450 mm
Air pressure 0.5-0.8Mpa
