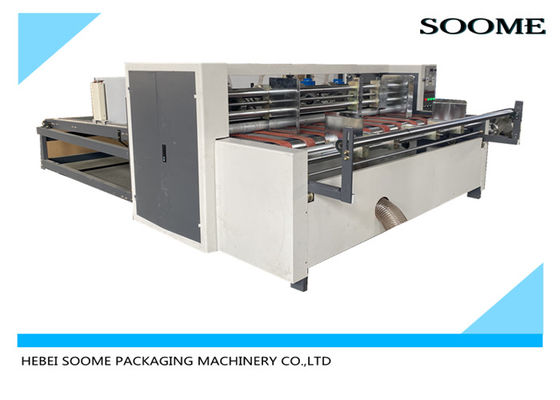

2200mm Carton Making Thin Blade Slitter Scorer Machine With Counter Stacker

2200mm Carton Making Thin Blade Slitter Scorer Machine With Counter Stacker

2200mm Carton Making Thin Blade Slitter Scorer Machine With Counter Stacker
video
2200mm Carton Making Thin Blade Slitter Scorer Machine With Counter Stacker
Product Details:
Place of Origin: Made in China
Brand Name: SOOME
Certification: CE
Model Number: SMBD-ZDSL
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact
Packaging Details: Wooden case or plastic film 1*20'' container
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets / month
Contact Now
Detailed Product Description
Max Slitting Size: 1800-3000mm Scorer Height: 0-12mm
Feeder Type: Belt Feeder Blade&Scorer: 4,5,7blade;6,8,12scorer
Usage: Cutting And Pressing Paperboard Blade Size: 200*122
Power: 3kw Blade Material: Tungsten Steel
Highlight:

2200mm thin blade slitter scorer machine

,

carton thin blade slitter scorer machine

,

carton making slitter scorer machine

Paper Carton Making Machine 2200 Type Thin Blade Slitter Scorer With Stacker Counter



FEATURES



 Adopt high quality tungsten steel blade,sharp and long work-life,slice more tidy,non-pressing and non-burr.

Adopt eight roll,two roll-rang feeding,then scoring,easy to adjustment.It could be do slitting only without scoring,avoid error when scoring.

The baffle size for screw adjustment,easy to operation.

Can set the qty. Of paperboard,automatic stop the feeding after finishing.

Automatic feeding paper,improve the safe operation,decreased the working load.

Stacked neatly and discharged in batches.It is suitable for mass production of cardboard and greatly improves work efficiency.



TECHNICAL INDEX



Model 2000 2200 2500
Max.slitting size(mm) 1800 2000 2300
Min.slitting size(mm) 120 120 120
Min slitting length(mm) 260 260 260
Blade size(mm) 190*105 190*105 190*105
Machine dimension (mm) 2630*770*1350 2830*770*1350 3130*770*1350
Power 9KW 11KW 13KW
Paperboard stacker length 1200mm(2000mm) 1200mm(2000mm) 1200mm(2000mm)
Paperboard stacker height 300 300 300



DETAILS



Parts Origin or brand
Contactor France Schneider
Motor Yongshun China
Blade Tungsten steel raw material
Bearing HRB China
Pneumatic(cylinder,solenoid valve,etc.) Tianao China
Synchronous belt SUBAK Japan
Frequency converter Delta Taiwan
Button CHINT China



2200mm Carton Making Thin Blade Slitter Scorer Machine With Counter Stacker 0

2200mm Carton Making Thin Blade Slitter Scorer Machine With Counter Stacker 1
