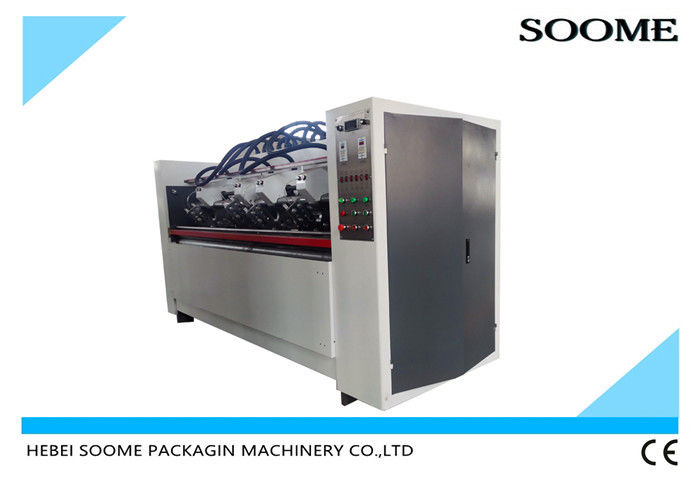

Tungsten Steel Blade 2800 Type Slitter Scorer Corrugated

Place of Origin China
Brand Name SOOME
Certification CE
Model Number 2500 TYPE
Minimum Order Quantity 1 set
Price negotiation
Packaging Details wooden case with plastic film
Delivery Time 24 days after depoist
Payment Terms L/C, T/T, Western Union
Supply Ability 200 per/mounth
Product Details
Voltage 380V/400V/415V Or Others Machine Power 4.5/6/8KW
Condition New Driven Type Electric
Warranty 1 Year Max Slitting Size(mm) 1800/2000/2800
Min Slitting Size(mm) 130 Min Slitting Length (mm) 350
Min Scorer Width(mm) 130
High Light

2800 type slitter scorer corrugated

,

tungsten steel blade slitter scorer corrugated

,

2800mm thin blade slitter scorer

Leave a Message
Product Description

Tungsten Steel Blade 2800 Type Thin Blade Slittter Scorer Machine



Equipment introduction:



1. Adopt front-scoring feeding, back double rubber roll leading paper, paperboard running steady.
2. Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
3. Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
4. Electric control lift-down and correct error, easy to operate, suit for different requirements.
5. Adopt China famous brand or imported electric element, dependable performance.





Blade unit:



Branch : Adopt high – quality tungsten steel alloy blade , sharp edge of blade front , long service life , cut – out board cut
neatly , no fracturing , no burrBranch : Adopt high – quality tungsten steel alloy blade , sharp edge of blade front , long service life , cut – out board cut neatly , no fracturing , no burr

Indentation part:

Adopt five-point indentation line, indentation clearance is adjusted synchronously. The line shape is beautiful,
does not explode the line, NOT easy to bend.

Grinding part:

Automatic and manual pneumatic grinding tools are used in the grinding device, which can improve the working efficiency while grinding the knife

Blade unit



About our company:



SOOME established in 1995. Specialized in developing and manufacturing the automatic, high speed, precise and good quality corrugated machines. Our target to the customer :

1. Supply the best quality product

2. Ensure the delivery time

3. Good after sales service

We are specialized in developing and producing thin blade slitter scorer and cutting machines for corrugated cardboard, provide the whole dry-end solution of production line. And we also manufacture carton production line, which is composed of hydraulic mill roll stand, pre-heater, high speed single facer corrugation machine, gluer, double facer, N.C slitter scorer machine, N. C cut-off machine, stacker as well as flexo printing slotting and die cutting machine, rotary die cutting machine, folder gluer machine, laminator, etc.







Technical index:







Model 2000 2200 2500 2800 3000
Max slitting size(mm) 1800 2000 2300 2600 2800
Min slitting size(mm) 130
Min slitting length(mm) 350
Blade size(mm) 200*122
Blade/scorer 4/6 ,5/8 ,6/10,7/12,8/14
Machine dimension 2630*1100*1450 2830*1100*1450 3130*1100*11450 3430*1100*1450 3630*1100*1450
Power 4.5kw 4.5kw 6kw 6kw 8kw
