100pcs/Min Corrugated Carton Box Automatic Die Cutting And Creasing Machine

Place of Origin Made in China
Brand Name SOOME
Certification CE
Model Number SMY-1060/1080/1100/1200
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Wrapped with film or wooden case.
Delivery Time 14 days after deposit
Payment Terms L/C, T/T, MoneyGram
Supply Ability 40 sets per month
Product Details
Product Name Die Cutting And Creasing Machine Type Corrugated Carton Process
Application Machinery & Hardware Function Carton Box Die Cut Crease
Speed 100psc/min Precision ±0.1mm
Contactor(switch) CHINT Or Schneider Bearing HRB Or NSK
High Light

carton box creasing and cutting machine

,

100pcs/min die cutting and creasing machine

,

automatic die cutting and creasing machine

Leave a Message
Product Description

100pcs/min Corrugated Carton Box Die Cutting and Creasing Machine

1.Summarize



Corrugated die cutting and creasing machine equipped sharp blades, cutting multiple kinds of shapes as customers' demand. The paperboards will be printed by flexo ink printer, then processed by die cutting and creasing machine. The spaces between blades can be adjusted by computer.



2.Features and Characteristics



1. MY1060/1080/1100/1200 automatic die cutting and creasing machine with stripping station is pivotal equipment, which is designed for die cutting and creasing and cold embossing paper products such as paper cassettes, box board containers, paper clutch, overpower protection, electric compression relief, etc. to ensure stable and high speed running of the die cutting and creasing machine.

2. This die cutting and creasing machine is equipped with practical and reliable mechanisms such as pre-stack device, secondary feeding device, speedy changing paper feeding mechanism automatic secondary delivery mechanism, pneumatic sampling, automatic timing lubricating device, cooling facility for oil etc.

3. Which ensure the excellent performance of the die cutting and creasing machine, electrical components and driving elements of internationally known brands are adopted to ensure die cutting precision and reliability of running, PLC and electronic cam monitor an display the electric control system. It is convenient for fault diagnosis, man-machine ineterface monilors machine state displaying running instructions, trouble location, trouble shooting to fully actualize man-machine communication, industry refrigerator of electrical cabinet ensure that electric components work stably at uniform temperature.



3.Technical Parameters



Model MY-1060 MY-1080 MY-1100 MY-1200
Max. paper size (mm) 1060x750 1080x780 1100x780 1200x780
Min. paper size (mm) 400x350 400x370 400x370 400x380
Max. die cutting size (mm) 1050x730 1070x760 1090x770 1180x770
Min. size in mouth (mm) 5 5 5 5
Max. die cutting pressure (T) 300N/cm2 300N/cm2 300N/cm2 300N/cm2
Suitable paper (mm):cardboard corrugated paper 0.1-0.3 0.1-0.3 0.1-2 0.1-1.5
≤4 ≤4 ≤5 ≤5
Die cutting precision (mm) ±0.1 ±0.1 ±0.1 ±0.1
Max. die cutting speed (sheets/h) 6500 6500 6500 6500
Max. feeding pile height (mm) 1000 1100 1100 1100
Max. delivery pile height (mm) 1000 1100 1100 1100
Total power (kw) 13.5 15 17 17
Weight (T) 15 16 17

18

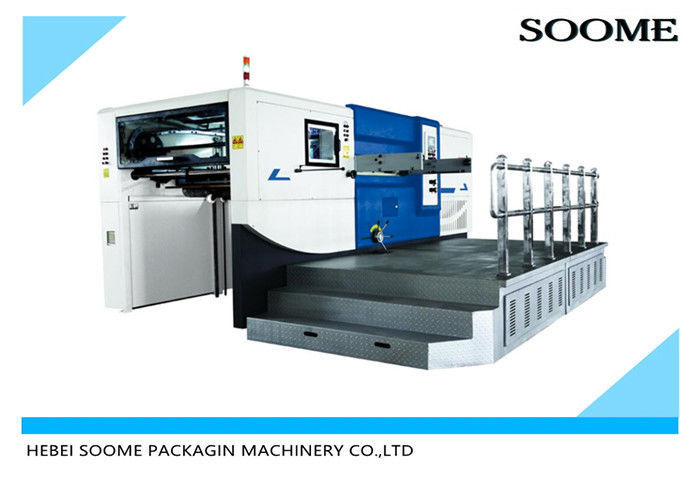

100pcs/Min Corrugated Carton Box Automatic Die Cutting And Creasing Machine 0
