Plc Scream Diameter 380 1224 Type Rotary Die Cutting Machine For Corrugated

Place of Origin Heibei Province China
Brand Name SOOME
Certification CE Certification
Model Number SMYS-GYM 1224
Minimum Order Quantity 1set
Price negotiation
Packaging Details wooden case with plastic film
Delivery Time 35 days after deopist
Payment Terms Western Union, T/T, L/C
Supply Ability 100per/mounth

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Voltage 380V/400V/415V Or Others Design Speed 150-180pcs/min
Warranty 1 Year Power 37 Kw
Driven Type Electric And Pneumatic Automatic Grade Automatic
Packaging Type Cartons,Case,Film Printing Precision ±0.5
High Light

Corrugated rotary die cutting machine


Plc rotary die cutter for corrugated


rotary die cutting machine for corrugated

Leave a Message
Product Description

Diameter 380 1224 Type Printing Slotting Rotary Die Cutting Machine


The product can complete single-color printing, cutting, indentation, grooving, die-cutting and other procedures in one time. Adopt Taiwan roller type front positioning automatic paper feeding mechanism, adjustable air volume, host frequency conversion control. The main machine adopts PLC and color display screen to control the machine, which is convenient, fast and flexible. Phase adjustment by digital display electric adjustment, automatic zero, automatic reset; The transmission gear is made of 40Cr high quality alloy steel, the material is carburized and quenched, and the grinding process is fine. The main transmission gear and transmission shaft are connected by tension-free key, which enlarges the virtual position, cancelling the wear of the center, and keeping the printing machine with long life overprint precision. The whole machine adopts electric split, pneumatic lock, single machine combination is tight, overprint does not move position; The machine has the characteristics of accurate color set, exquisite printing pattern, convenient use and maintenance, and high degree of automation.


Machine feature:


1. The main electric elements all adapt French Schneider brand. Name-brand PLC controlling, colorful touch screen , frequency converter.

2. The transmission gear adopt 40 Cr, 20GrMo Ti high quality alloy steel which is grinded, and after the heat treatment ,it can up to six grade precision.

3. The machine lubrication system uses an automatic spray lubrication, and with the device impermeable to oil spills institutions.

4. Each unit of the machine with electric separation, and pneumatic locking, pneumatic total lock, to ensure the stability of the unit, and continue ring for caution when machine be separated, to ensure the safety of operating person.

5. Every unit of machine with emergency stop switch, so the machine can be stopped between the unit, it can ensure the workers safe (remark: every unit moving is drag by feeder unit


Main parameter:


Type Unit SMYS-GYM-2600
Plate roller diameter mm ¢480
Plate roller length mm 2500
Inner width of machine mm 2600
Speed pcs/min 180
Max printing area mm 1400×2200
Max feeding paper size mm 1450×2400
Feeding paper by skip mm 1600x2400
Min feeding paper size mm 320×600
Board thickness mm 2-12
Print plate thickness mm 7.2
Print roller axle circle-oriented regulating degree 360°revolving
Topping precision mm ±0.5
Weight kg 19000


Feeding unit:


The master control panel by the control buttons and touch screen control operation, convenient and reliable.
1. Skip paper feeding with counter, showing the production number.
2. The front bezel to manually adjust the gap.
3. 11KW wind turbine, suction feeding, the electric inverter to adjust the air volume, according to board bending different, so air flow adjustments to ensure smooth paper.
4. The dust removal device and fan brush the surface clean cardboard scraps of paper.

5. Thick-walled seamless steel pipe, wrapped in plastic wear phase, that is to maintain flexibility and ensure that the surface wear and reduce the squash into the board.
6. Front feed under the roller diameter ф159 mm, back feed under diameter ф149 m, quenched and tempered seamless steel grinding the surface of hard chromium plated embossed and treatment.

7. The transmission uses two roller drive coupling, reducing wear and tear to make the drive more stable.
8. The use of electric sub-machine fit, with a continuous alarm warning lights to ensure the safety of operations.
9. Shaft with electromagnetic friction clutch, to prevent malfunction or overload protection of the motor will not burn.

10.Feeder, printing department, the Department of cutting electric automatic zero.
11. Pneumatic chain of devices.


Printing unit:


1. The outer diameter is Ø410mm (including the size of the outer diameter of the plate).

2. The surface of steel pipe is ground and plated with hard chromium , balance correction, smooth operation.

ratchet wheel fixed roll plate shaft. the whole plate plate hanging slot, suitable for 10mm×3mm plate hanging bar.

3. With quick plate changing device, convenient loading and unloading printing plate, with foot switch electric control of positive and negative rotation.

4. The outer diameter is Ø156mm and the wall thickness is 18mm

5. The surface of steel pipe is ground and plated with hard chromium.

6. Balance correction, smooth operation.

7. Manual adjustment range of printing press roll gap dial is 1.2 ~ 11mm.


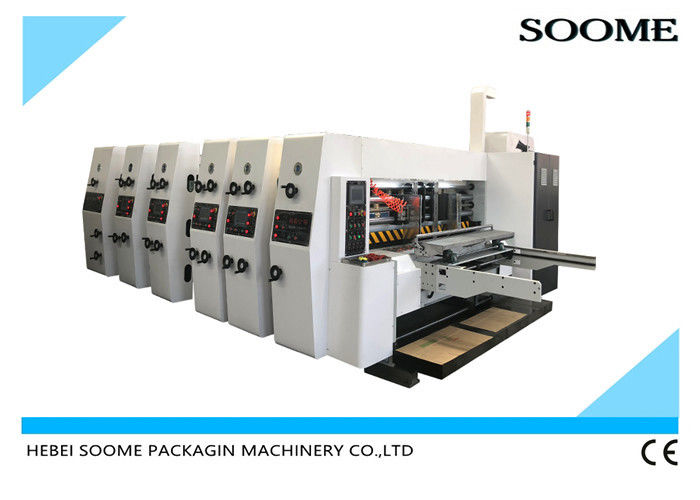

Plc Scream Diameter 380 1224 Type Rotary Die Cutting Machine For Corrugated 0
