Ce Servo Driven Carton Gluing Machine , Automatic Corrugation Machine
|Type||Paperboard Laminating Machine||Automatic Grade||Automatic|
|Application||Machinery & Hardware||Driven Type||Servo|
|Voltage||220V/380V/440V||Packaging Material||Wood, Film|
CE carton gluing machine,
servo driven carton gluing machine,
servo driven automatic corrugation machine

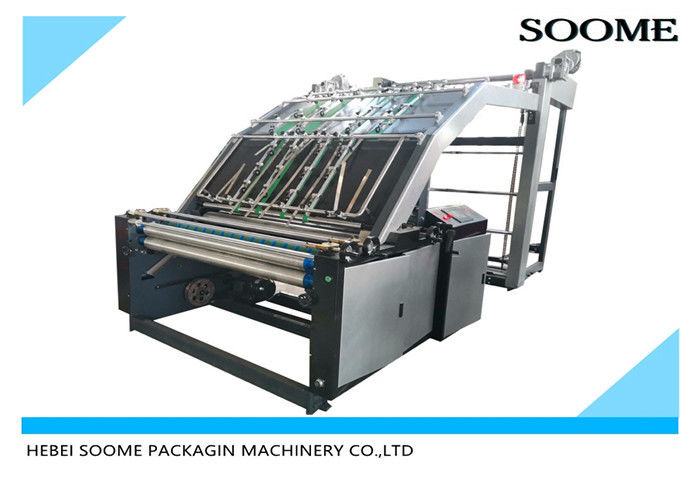

Manual Feeder Single Corrugation Sheet Board Gluing Machine
This gluing machine adopts the bottom paper suction automatic feeding system, the face paper can be piled up
to 1.5 meters in height at a time, and it rises automatically, saving the trouble of frequently moving the face paper.
Feeding paper is easier, adding bottom paper is more convenient and more efficient. It is suitable for the laminating
of facial paper and single-wall cardboard, the laminating of color printing facial paper and corrugated paper,
and the laminating of color printing facial paper and gray board paper.
|Max size of laminating||1300*1250mm||1400*1250mm|
|Min size of laminating||360*360mm||360*360mm|
1. The surface paper can be piled up to 1.5 meters at a time, and the paper pile rises automatically during the paper feeding process, which makes the paper feeding easier and more efficient.
2. The bottom paper is automatically fed by suction, which can be automatically tracked according to the speed of manual feeding of the paper;
3. The position is set before the new concept, the positioning accuracy is high, the bottom paper is never advanced; the amount of front paper is adjustable;
4. The whole glue machine adopts a touch screen/PLC control system, the circuit system runs stably, and can automatically display fault alarms;
5. The glue of the gluing machine contains borax and caustic soda, which causes the glue to dry very quickly, and glue has a thin layer, so it dries very quickly.
6. Fully automatic glue replenishment system, which can automatically replenish the amount of glue lost during the lamination process, and cooperate with glue recycling to avoid glue loss and waste;
7. The linear speed of the glue roller is scientifically designed to ensure uniform glue application while avoiding glue rejection during high-speed operation;
8. The rubber roller is used for cleaning, so that the lower roller is clean and thorough, and the back of the corrugated paper is not glued, eliminating the trouble of frequent replacement of the scraper;
9. Floating movable press, to ensure that the corrugated paper will not be squashed after laminating, while ensuring that the cardboard is flat and straight;
10. The cleaning water source adopts independent water tank to control the water circulation method, which is clean and not easy to accumulate glue;
11. The roller pressure is adjusted unilaterally. When changing the bottom paper specification, you only need to roll it unilaterally to the required scale. There is no need to test the pressure of each roller. The adjustment is convenient and quick.
