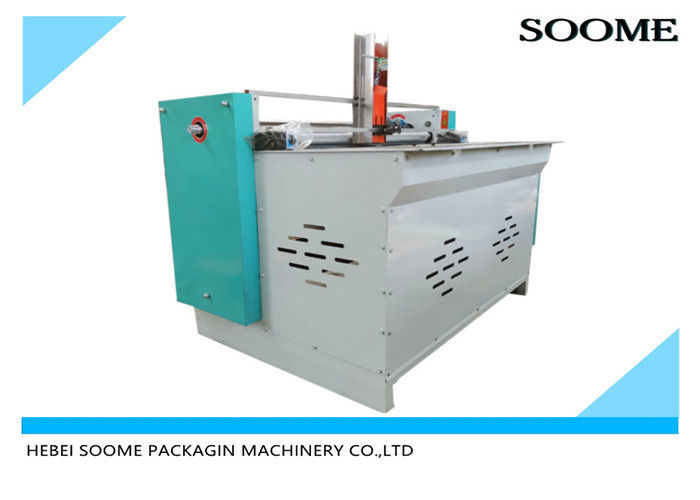

Clapboard Partition Phase Adjust Handle Auto Corrugated Slotter Machine CE

  • Clapboard Partition Phase Adjust Handle Auto Corrugated Slotter Machine CE
  • Clapboard Partition Phase Adjust Handle Auto Corrugated Slotter Machine CE
  • Clapboard Partition Phase Adjust Handle Auto Corrugated Slotter Machine CE
Place of Origin Made in China
Brand Name SOOME
Certification CE
Model Number SMKC-1000
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details film, wooden case
Delivery Time 14 days after deposit
Payment Terms L/C, T/T, MoneyGram
Supply Ability 30 sets/month
Product Details
Application Machinery & Hardware Packaging Material Plastic, Wood
Applicable Industry Manufacturing Plant, Printing Shops, Advertising Company,Packing Company Voltage 220V/380V/440V
Warranty 1 Year
High Light

auto corrugated slotter machine

,

corrugated slotter machine CE

,

CE corrugated slotter machine
Leave a Message
Product Description

Clapboard Partition Phase Adjust Handle Auto Corrugated Slotter Machine CE



Summarize



This auto corrugated board slotter is used in slotting and cutting corner of paperboard.



Features



1. Choose the corrugated paperboard which you want to process, adjust the side feeding baffle .Adjustment method : loose the screws in circle of below picture, move the two side feeding baffles right or left , adjust the distance between two side baffles according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .
2. When the length of paperboard is big , can move the front feeding baffle right or left. Adjustment method : loose the screws in circle of below picture, move the two front feeding baffles , adjust the front feeding baffles to the suitable positions according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .
3. Adjust the back feeding baffle, adjustment method : loose the screws in circle of below picture , move the two back feeding baffles forwards or backwards , adjust the suitable positions according to the width of paperboard , after finishing adjustment , tight the screw and fix the baffles .
4. Adjust the suction range of feeding table : first put one piece of paperboard on the feeding table , rotate the belt wheel which is with yellow circle in Picture Left , check the walking range of the pushing plate . Ensure that the distance between the pushing plate and the paperboard is 2mm when the pushing plate move the extreme edge of machine , then it can push the paperboard and make it feed forwards. If need to adjust the position of pushing plate , loose the screws which are circled in Picture Right , find the suitable position , and fix the pushing plate .



Functions and Characteristics



1. The auto corrugated board slotter machine working interval adjustment adopts fast spanner-free adjustment and the electromagnetic brake system with the worm wheel and worm setting operates fastly and conveniently.
2. The mainframe chooses control by conversion frequency ,with more stable and energy-saving start-up and running.
3. Option for the vacuum adsorption, kick feeding or leading edge feeding.



Technical Parameters



Model 1000type
Machine Max Speed 120piece/min
Max Feeding Size(L*W) 1000*300(mm)
Min Feeder Size(L*W) 100*75(mm)
Min Slotting Distance 45mm
Slotting Amount 9 groups slotting knives
Slotting Width (Choose one according to the thickness of paperboard)
Dimension(L*W*H) 1500*1450*1300(mm)
