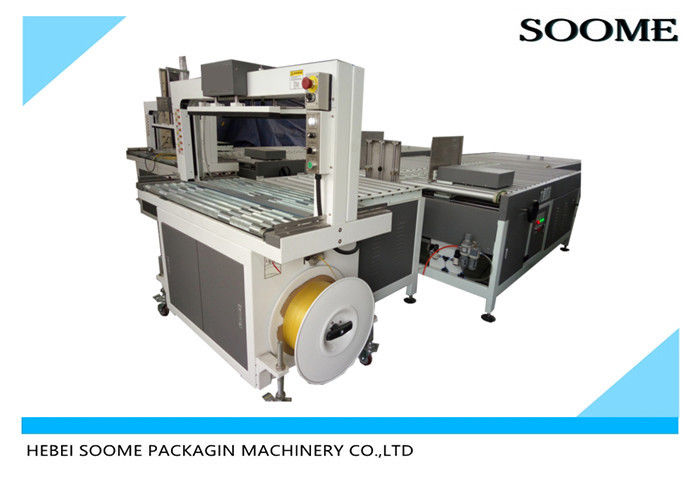

Corrugated Boards Pneumatic Pp Belt Carton Strapper And Bundler
Type | Automatic Strapping And Bundling Machine | Condition | New |
---|---|---|---|
Brand Name | SOOME | Color | Customized |
Driven Type | Electric And Pneumatic | Place Of Origin | Hebei, China |
Voltage | 220/380V 50Hz/60Hz | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
Packaging Material | Plastic | Certification | CE |
High Light | carton strapper and bundler,pneumatic carton strapper,carton strapper pneumatic |
Corrugated Boards Pneumatic PP Belt Carton Strapper And Bundler
1. Summarize
When using the pneumatic PP belt carton strapper and bundler machine, users have to understand the function of each switch to ensure correctment, safe operation of the pneumatic PP belt carton strapper and bundler machine, so as to avoid the cost of the pneumatic PP belt carton strapper and bundler machine can not work.
2. Features and Functions
1). Touch screen
Users can choose according to the strapping requirements of the operation of the pneumatic PP belt carton strapper and bundler machine.
2). Start button
After the pneumatic PP belt carton strapper and bundler machine starts, press the start button, the pneumatic PP belt carton strapper and bundler machine starts to work properly.
3). Reset button
The pneumatic PP belt carton strapper and bundler machine in an emergency stop, suddenly cut off or after the failure of the boot, press the reset button for 3 seconds to complete the pneumatic PP belt carton strapper and bundler reset.
4). Transport selection button
(1) when the knob is in the automatic gear, the pneumatic PP belt carton strapper and bundler machine automatically carries on the box.
(2) when the knob is in the position of the transmission, the pneumatic PP belt carton strapper and bundler machine is only the delivery table work, the product of the input only forward.
5). Emergency stop button
Press the emergency stop switch, the power indicator light is still on, the rest of the action to stop. No matter what kind of machine, if the pneumatic PP belt carton strapper and bundler machine immediately stop running, just press this switch can, if need to restart, in accordance with the direction of the arrow on the switch to a point, then press the reset button, so that the pneumatic PP belt carton strapper and bundler machine reset and then start work.
3. Technical Parameters
Name | Parameter |
Source | AC380V(1+10%)50HZ, Three phase five line |
Speed | 15pcs/min |
Working environment | Relative humidity is less than 90%,temperature 0-40,noise less75db. |
Belt width | 5mm |
Belt index dial specification | Paper core inner diameter 200-210mm,outer diameter 400-450mm. |
Glue way | Heat fusion |
Glue connect way | Bottom glue |
Strapping machine | L1500 W665 H1792 |
Air pressure | 0.5-0.8Mpa |
