Conveying And Stacking Basket Down 200pcs/Min Paperboard Machine

Basic Information
Place of Origin: Made in China
Brand Name: SOOME
Certification: CE
Model Number: SMZX-PT
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case or film
Delivery Time: 14 days after deposit
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 30 sets per month
Detail Information
Condition: New Brand NameBrand NameBrand NameBrand NameBrand Name: SOOME
Color: Customize Material: Steel
Application: Cardboard Conveyor And Stacker Machine Type: Conveyor And Collection Machine
Voltage: 220V/380V/440V Driven Type: Electric And Pneumatic
Packaging Material: Plastic Weight: 2500kg-5500kg
High Light:

200pcs/min paperboard machine

,

paperboard conveying and stacking machine


Product Description

200pcs/Min Paperboard Conveying And Stacking Basket Down Machine

1. Summarize



The basket down machine smoothly conveys and stacks the cardboard output from the cross-cutting machine, and basket down machine smoothly transfers the cardboard output from the cross-cutting machine, stacks neatly, and discharges the paper horizontally;

Basket down machine three-section flat belt cardboard conveying, frequency conversion motor, frequency conversion speed control, computer controlled, stable conveying and energy saving; basket down machine for cardboard conveying and production line speed are automatically synchronized, and the speed is automatically basket down machine adjusted to ensure smooth and reliable action when changing stacks and orders; basket down machine hanging basket stacking, AC servo motor, AC servo control.



2. Features and Characteristics



1) Working speed: 200m/min.
2) Maximum stacking height: 1400mm.
3) Maximum stacking length: 3000mm, minimum sheet length: 500mm.
4) Effective working width: 1600mm-2500mm.

5) Automatic sheet stacking and side delivery.

6) Simplex or duplex down stacker structure.

7) Hydraulic servo valve control of elevator deck to ensure stable and quickly stacking.

8) Conveyor belt keeping synchronous with production line speed, keep stacking stable.

9) This basket down machine can be connected with production management system to achieve order change and order management.

10) Adopt man-machine conversation and touch screen display ,easy operation.

11) Automatic clapboard setting for sheet length and automatic paper sheet side delivery.



3.Technical Parameters



No.

Model

Parameters
1

SMZX-PT-1600

17500x2278x1856mm

2

SMZX-PT-1800

17500x2478x1856mm
3

SMZX-PT-2000

17500x2678x1856mm
4

SMZX-PT-2200

17500x2878x1856mm
5

SMZX-PT-2500

17500x3178x1856mm
6 Max stacking height 1600mm

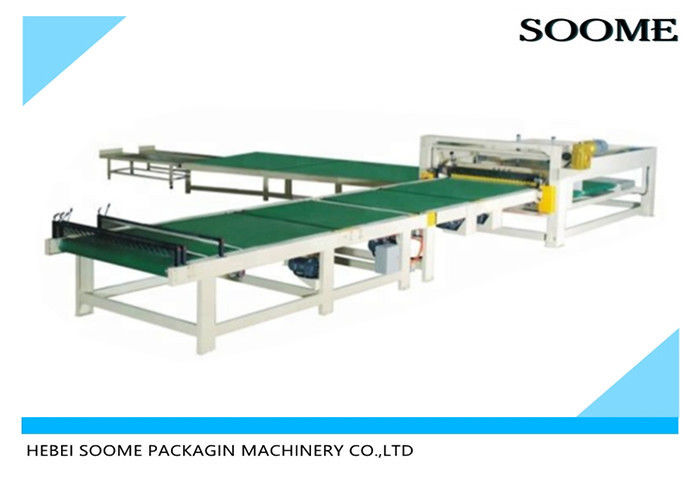

Conveying And Stacking Basket Down 200pcs/Min Paperboard Machine 0

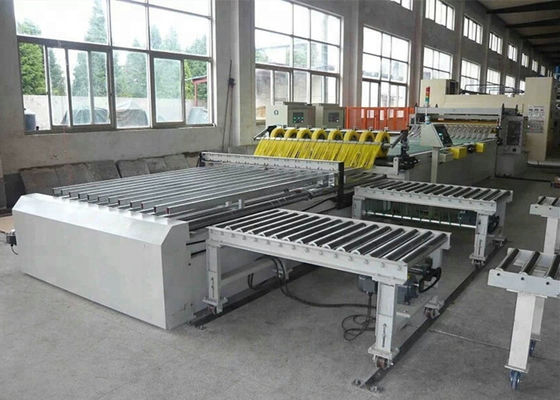

Conveying And Stacking Basket Down 200pcs/Min Paperboard Machine 1
