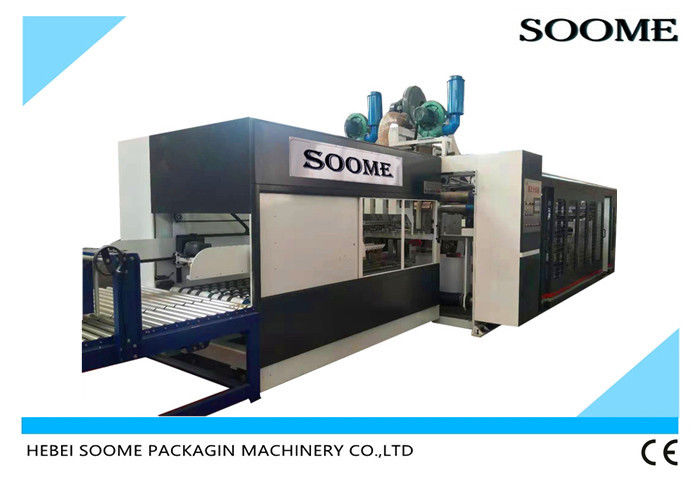

2600mm Automatic Corrugation Machine Corrugated Carton Industry Linkage Line

2600mm Automatic Corrugation Machine Corrugated Carton Industry Linkage Line

  • 2600mm Automatic Corrugation Machine Corrugated Carton Industry Linkage Line
  • 2600mm Automatic Corrugation Machine Corrugated Carton Industry Linkage Line
2600mm Automatic Corrugation Machine Corrugated Carton Industry Linkage Line
Product Details:
Place of Origin: China
Brand Name: SOOME
Certification: CE
Model Number: SMYS-QY-2600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: wrapped with plastic film
Delivery Time: 60 days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 set pre/year
Contact Now
Detailed Product Description
Linkage Line Speed: 300m/min Minimum Square Size Of Folding Box: 350*260 Mm
Maximum Box Size Of Folding Box: 1375*1200 Mm Total Mechanical Weight: 15 T
Maxpaper Size: 1200*2400 Mm Min Paper Size: 300*550 Mm
Skip Feeding Size: 1280*2400 Mm Board Thickness: 2-11 Mm
Voltage: 380V/400V/415V Or Others Driven Type: Electric And Pneumatic
High Light:

2600mm Automatic Corrugation Machine

,

2600mm Automatic corrugated Machine

,

CE Automatic Corrugation Machine

SMYS-QY-2600 Corrugated Carton Industry Linkage Line Automatic Corrguation Machine



Main configuration:



This automatic corrugation machine the light pressure leading edge, Jiangsu Haili screen roller, 20CrMnTi alloy steel gear, the automatic corrugation machine traveling motor of the unit and the uniform ink motor are all made of Taiwan motor, the automatic corrguation machine main machine, the fan and the phase are all made of variable frequency motor, which can save energy and reduce noise

This automatic corrguation machine wall plate is 50 thick and the cast rail is equipped with hardened steel bars (long-term use prevents crushing the rail). Each unit adopts touch screen operation, order memory, complete machine resetting, pressing ink supply, ink shortage alarm, leading edge feeding board length, width size automatic adjustment.

Automatic corrugation machine order memory function can adjust the printing plate and slotting knife to the correct position, easy to operate, avoid waste of cardboard.

Strong suction dust and brush dust, remove paper impurities, ensure the printing effect.

Double housing, double stage worm gear box self-locking hand wheel to adjust the pressure of each group.





1. Printing of high quality thick-walled seamless steel roll, surface conditioning, grinding, hard chromium plating.
2. All axes of roller correct by dynamic balance, the machinery running steady.

3. Handling print, the foot switch is convenient and flexible electric control reversing.
4. Printing , roller clearance adjusted by hand, the scale panel shows the data.

5. Printing phase fixed device, using pneumatic brake mechanism. While the machine separates or the phase is adjusting, the brakes can restrict the revolving of the machine platform and keep the fixed point of original gears position.

6. Rubber roller: the surface of the roller is steel pipe which is packed by the wear-resisting rubber. Adopting medium and high special grinding the rubber roller has effective ink-spreading.

7. The steel roller adopt high precision hard chrome plating net-grain roller.

8. Installed with ink roller rotation electrical machinery to avoid the main engine’s drying up while its stopping.



 Slotter unit:

1. The function of the double shaft slotting unit (adopt units). Big size carton box or kicking paperboard slotting can save loading knife time.

2. Slotting phase and the height carton box adjusting, computer and the electrical number can be controlled in this automatic corrugation machine.

3. Slotting knife with a move transversely structure, screw with linear axis that mobile more flexible and accurate.

4. This automatic corrugation machine the up and down knife move at the same time, keep the linkage of knives, accurate, extend the service life tools.

5. Slotting knife shaft space, computers and digital electronic adjustment automatically.

6. The slotting knife move transversely with double prevent collision protection device (electronic and mechanical).

7. Elastic and corner cutting blade structure, three and five layers board corner cutting no adjustment and operation more convenient.

8. Line wheel, slotting knife move transversely adjustment, computer and electric control.

9. Creasing gap adjusting with computer and digital electronic control (choose configuration).



High precision bevel gear, adopt 20CrMnTi quality steel, carburizing quenching, fine grinded gear, transmission gear of high strength, good wear resistance, low noise, longtime ensure the machine rotation precision

Lubrication adopt closed type spray lubrication system, to ensure transmission accuracy and use-life



Main Bought-in Parts (from Good Famous Manufacturers )



Material:



Wallboard thickness: 50mm

Gears thickness: 50~60mm

Inner housing thickness: 6mm steel plate

Outer housing thickness: 2mm

Common gears material: 40# chrome, hardness 50~55

45# steel, with quenching, hardness 45~50

Our gears material: 20# chrome, hardness 60~65. With Mn and Ti, good toughness



Technical index:



Type Unit SMYS-QY-2600
Plate roller diameter mm ¢380
Plate roller length mm 2500
Inner width of machine mm 2600
Speed pcs/min 240
Max printing area mm 1200×2200
Max feeding paper size mm 1200×2400
Feeding paper by skip mm 1280x2400
Min feeding paper size mm 300×550
Board thickness mm 2-11
Print plate thickness mm 7.2
Print roller axle circle-oriented regulating degree 360°revolving
Topping precision mm ±0.5



2600mm Automatic Corrugation Machine Corrugated Carton Industry Linkage Line 0
