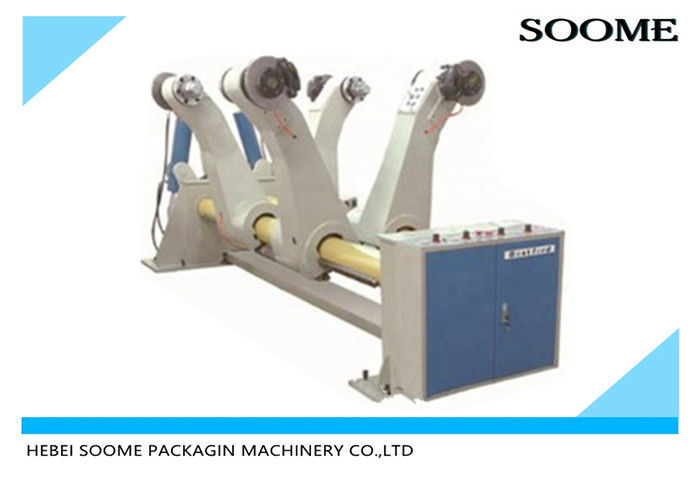

2500mm Carton Machine 7kw Mill Roll Stand

2500mm China For Cardboard Production Line Mill Roll Stand Carton Machine

1. Summarize

The symmetric structure of mill roll stand carton machine can be installed at the same time two bundles of paper tube, can be used as a non-stop machine for paper work.
Mill roll stand carton machine, the use of electric original clamping, loosening, moving, centering, left and right translation and other actions;
The butterfly disc system for mill roll stand carton machine is used for brake adjustment.
With double level automatic expansion type paper clip, clip head is three inches in the mill roll stand carton machine.

2. Features and Characteristics

1).Real stand movement:Mechanical electric


2).Folder range max :1600mm 1800mm min:100mm

3).Folder diametre max:1400mm


4).Load on one side:max 1500Kg

5).Flip motor Power:1.5kW;1 piece;Clamping motor power:0.37kW,4 piece.

3. Technical Parameters
