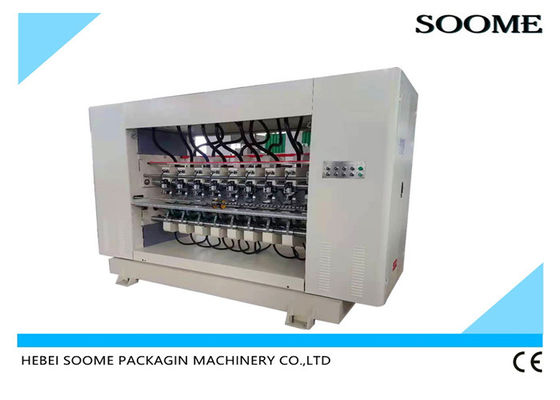

Electrical Control 100pcs/Min Thin Blade Slitter Scorer Machine

  • Electrical Control 100pcs/Min Thin Blade Slitter Scorer Machine
  • Electrical Control 100pcs/Min Thin Blade Slitter Scorer Machine
Place of Origin China
Brand Name SOOME
Certification CE
Model Number 1600/1800/2200mm
Minimum Order Quantity 1 set
Price negotation
Packaging Details wrapped with plastic film
Delivery Time 24 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 per/mounth
Product Details
Voltage 220V/380V Automatic Grade Automatic
Speed Track Production Speed Correction Range ±100mm
Color Customer's Request Function Slitter The Corrugated Cardboards
Warranty 1 Year Blade Model Φ200*122*1.3mm
Power 8/10/11 Kw Design Speed 100pcs/min
High Light

electrical control slitter scorer machine

,

electrical thin blade slitter scorer machine

,

100pcs/min thin blade slitter scorer machine
Leave a Message
Product Description

Model 1600 Type On Line Electrical Control Thin Blade Slitter Scorer Machine



Machine features:



The slitter scorer machine space between slitting blades is electrically adjusted,automatic locking,improved working efficiency.

slitter scorer machine blade and scorer adopt automatic locking,double smooth shaft guide way,sturdy and durable.

Slitting knife adopt synchronous belt transmission,low noise.

Automatic and manual two kinds grinding type.Patent type passive grinding,compact structure,can work while sharpening,improve work efficiency.



Electrical configuration:



This thin blade slitter scorer machine adopt world famous brand

1. Low-voltage apparatus adopts France Schenider

2.Blade and scorer control adopts Taiwan Delta frequency converter

3.Blade and scorer motor adopt Yongshun frequency converter China

4.Pneumatic adopts Tianao China

5.Synchronous belt SUBAK Japan

6. Bearing adopts HRB China



Technical index:



                  Model 1600 1800 2200
Efficient width 1650mm 1850mm 2250mm
Min. slitting width 120mm
Min. creasing width 120mm
Blade model Φ200*122*1.3mm
Creasing roller model Φ162mm
Correction range ±100mm
QTY of blade/scorer 4/6 5/8 6/10
Depth of creasing 12mm
Power 8kw 10kw 11kw
Design speed 100 m/min
Types of scorer

Five-point press /three-point press/ convex-to-flat press
Electrical Control 100pcs/Min Thin Blade Slitter Scorer Machine 0







Tags:

slitter scorer machine

corrugated slitter machine

cardboard slitting machine
