Penumatic Auto Belt Feeding 75kw Thin Blade Slitter Scorer Machine

Auto Belt Feeding Thin Knife Blade Slitter Scorer Machine

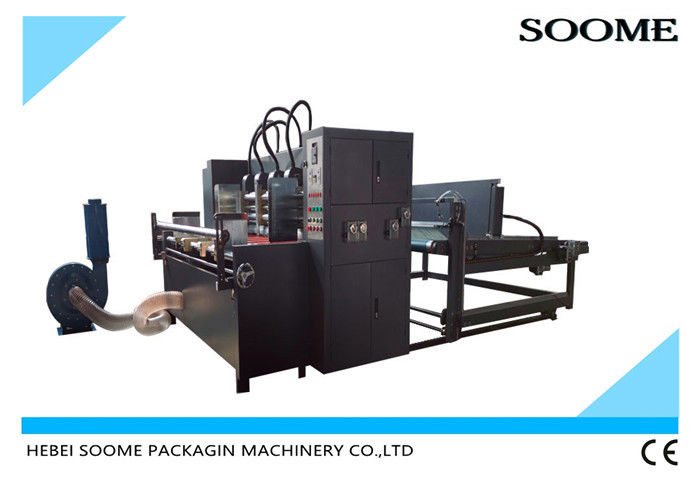

The thin blade slitter scorer machine adopt auto suction feeding , decreased the working load, preventing cardboard from running askew,and ensuring the safety of staff operation.Axis-adding thin blade slitter scorer machine,because of the use of front and rear double rubber axis design,greatly reduces the length requirements of cardboard,thin blade slitter scorer not only meets the cutting size of conventional cardboard,but also can be used for cutting small size cardboard. Stacked neatly and discharged in batches, it is suitable for mass production of cardboard and greatly improve work efficiency.



Characteristic:



1: The thin blade slitter scorer machine adopts leading edge automatic feeding mode, frequency converter control , labor saving is greatly saved, and the edge of the paperboard with thin knife is smooth and neat, and the corrugation is straight and non -degumming, which improves the quality of the outer tube of the incision.

2.The thin balded slitter score machine is eight axis machine, two roll-rang feeding, then scoring, easy to ad-justment, slitter scorer machine can be do scorer with out scorer, avoid error when scoring, which greatly improves the working efficiency.

3:There are two kinds of sharpening knives, manual automatic grinding mode, each group of knife can be electrically adjusted, and work independently, saving time and effort. The machine adopts dual frequency conversion control, runs smoothly, low noise, and paper quality is good, so it is an ideal choice for customers.



Detail image:



1. The thin blade slitter scorer machine baffle size for screw sdjustment ,easy to  operate.Can set the paperboard,automatic stop the feeding after finishing.Automatic feeding paper,improve the safe operation,decreased the working load.

2. Slitting part:adopt tungsten steel blade slice and creaser corrugated carton, slice more tidy,non-pressing and non-burr, electric adjusted the space of slitter blade, our factory can also provide blade for customer. Auto penumatic locking,double guide optical axis,double locking cylinder,stable operation,convenient adjustment.The knife rest build-in polyurethane rubber ,dust prevention,reduce the failure rate.

3. Scorer part: adopt 5 points scoring, 3 Types creaser model selected: convex-to-concave, (Three-layers plate), convex-to-concave(Five-layers plate),convex-to flate, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet. Electric adjusted the space of slitter scorer blade, auto penumatic locking, double guide optical axis, double locking cylinder, stable peration, convenient adjustment. the knife rest built-in polyurethane rubber, dust prevention, reduce the failure rate, under teh scorer for driving wheel, six- rowed axis drive, paper smoth.



Technical index:



Model	2000	2200	2500	2800	3000
Max slitting size(mm)	1800	2000	2300	2600	2800
Min slitting size(mm)	130
Min slitting length(mm)	270
Min scorer width(mm)	30
Scorer height(mm)	0-12
Blade size(mm)	190*105
Blade/scorer	4/6 ,5/8 ,6/10,7/12,8/14
Min. Paper size	500*270
Machine dimension (LWH)	2640*1750*1400	2840*1750*1400	3140*1750*1400	3640*1750*1400	3830*1750*1400
Power(kw)	10	10	13	13	15

















































Electric appliance:



Touch screen	WEINVIEW	Taiwan
PLC	Panasonnic	Japan
Circuit breaker	SHILIN	Taiwan
Electric relay	Schneider	France
Push-button	ABB	Switzerland
Main motor	Yongshun	Guangzhou
Actuator	YANKONG	CHINA
Driving motor	YANKONG	CHINA
Bearing	HRB	China
Button	CHINT	China
Frequency converter	Delta	Taiwan
Air cylinder	Tianao	China
