150pcs/Min Corrugated Paperboard Machine Conveyor And Collection

Basic Information
Place of Origin: Made in China
Brand Name: SOOME
Certification: CE
Model Number: SMDM-2200
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case or film
Delivery Time: 14 days after deposit
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 30 sets per month
Detail Information
Condition: New Brand NameBrand NameBrand NameBrand NameBrand Name: SOOME
Color: Customize Material: Steel
Application: Cardboard Conveyor And Stacker Machine Type: Conveyor And Collection Machine
Voltage: 220V/380V Driven Type: Electric And Pneumatic
Packaging Material: Plastic Weight: 2500kg-5500kg
High Light:

150pcs/Min Corrugated Paperboard Machine

,

Corrugated Paperboard Machine Conveyor

,

Corrugated Paperboard Machine Collection


Product Description

150pcs/Min High Speed Corrugated Paperboard Conveyor And Collection

1. Summarize



The automatic corrugated paperboard conveyor and collection smoothly conveys and stacks the cardboard output from the cross-cutting machine, and corrugated paperboard conveyor and collection smoothly transfers the cardboard output from the cross-cutting machine, stacks neatly, and discharges the paper horizontally;

Corrugated paperboard conveyor and collection three-section flat belt cardboard conveying, frequency conversion motor, frequency conversion speed control, computer controlled, stable conveying and energy saving; corrugated paperboard conveyor and collection for cardboard conveying and production line speed are automatically synchronized, and the speed is automatically corrugated paperboard conveyor and collection adjusted to ensure smooth and reliable action when changing stacks and orders; corrugated paperboard conveyor and collection hanging basket stacking, AC servo motor, AC servo control.



2. Features and Characteristics



a. Corrugated paperboard conveyor and collection transmission paper platform using RV typed reducer turbine motor drive and control the lifting platform, and a counter weight lifting device, corrugated paperboard conveyor and collection reduce the load of a motor, prolongs the service life of the reducer.

b. The transmission platform of this corrugated paperboard conveyor and collection is driven by the travel switch and photoelectric control, and has two operation modes.

c. For this corrugated paperboard conveyor and collection conveyor belt conveying belt for the special climbing, belt surface folds, to ensure that the platform is not in the process of raising the output of paperboard after falling off.

d. Maximum stacking height: 1800mm, length of paper: 1600mm.



3.Technical Parameters



No.

Item

2200model conveyor and stacker
1

Economic speed

100-150pcs/min

2

Max. receving length

2200mm
3

Receving width

1400mm/1600mm/1800mm
4

Suitable board thickness(per)

2-12mm
5

Inner wallboard width

2200mm
6 Max stacking height 1200mm

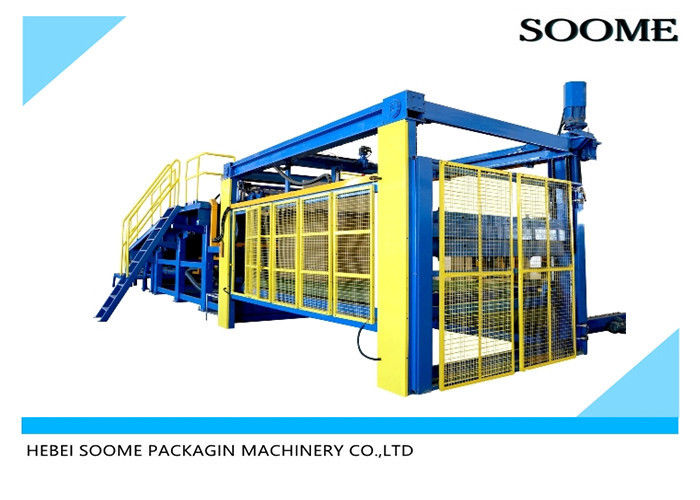

150pcs/Min Corrugated Paperboard Machine Conveyor And Collection 0

150pcs/Min Corrugated Paperboard Machine Conveyor And Collection 1
