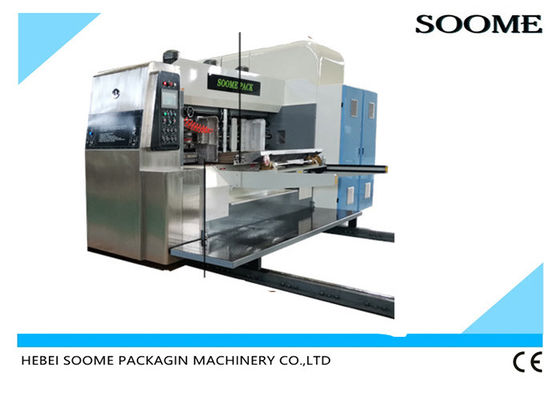

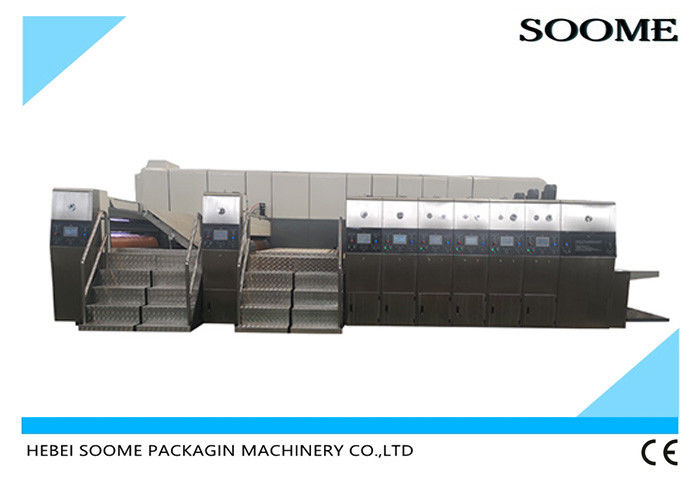

Pizza Box Corrugated Flexo 200pcs/Min Printing Die Cutting Machine
|Key Words||Cardboard Box Printing Machine||Color||5 Color|
Flexo Printing Die Cutting Machine,
200pcs/min printing die cutting machine
Pizza Box Corrugated Flexo Cardboard Printing Die Cutting Machine
Used for corrugated cardboard box making
High definition and high speed corrugated flexo printing machine
Max feeding size(mm)
|Max speed pcs/min)||250||200||160/150/120||150/140/120||120|
|Min feeding size(mm)||650*270||650*270||650*330/350/400||650*330/350/400||650*400|
|Skip feeding size(mm)||1800/2000*1000||1800/2200*1200||2500*1400/1600/1800||2800*1400/1600/1800||3200*1800|
|Max. printing size(mm)||1750/1950*750||1750/2150*950||2450*1180/1330/1580||2750*1180/1330/1580||3150*1580|
|Print plate depth (mm)||7.2|
|Max die cutter area(mm)||1700/1900*750||1700/2100*930||2400*1150/1310/1550||2700*1150/1310/1550||3100*1550|
1. International famous brand electric parts and computer software are used in the whole machine with stable and reliable quality; human-computer interface, computer order storage, convenient operation and faster order update.(It can prestore 999 orders in the computer.) Printing Die Cutting Machine
2.Complete machine baffle and important parts use tempering to decrease the metal internal force; and all parts are made by high-precision processing center and grinded by numerical -control grinder Printing Die Cutting Machine.
3. All transmission axles and rollers are made by high quality steel, and processed through tempering and dynamic balance; plated with rigid chrome and grinded surface Printing Die Cutting Machine.
4. All transmission gears are made by 20CrMnTi alloy steel, which is grinded after heat-treatment, rigidity HRC58-62,and which is made by rubbing,6 grade precision to maintain high topping precision after long using Printing Die Cutting Machine.
5.All transmission parts (connected with the axles and gears) adopt the hand-free connecting ring to eliminate the interval, suitable for long-term high-speed running Printing Die Cutting Machine.
6. All transmission bearings adopt strengthened model bearing, equipped with dustproof windtight parts and the oiling, handy to maintenance, lasting for longer using Printing Die Cutting Machine.
7.The whole machine undergoes automatic spray lubrication, with intuitionistically showing facilities and double oil pipe balance system Printing Die Cutting Machine.
8 The whole machine runs with the adjustment presetting function, feeding, printing, slotting, die cutting all featuring auto- zeroing and memory automatic reposition Printing Die Cutting Machine.
Quality: Due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment Printing Die Cutting Machine.
Efficiency: Patent type feeding width automatic adjustment device and printing locking device with screw. With 4.0 engineering design of industrialization, both hardware and software are charged with the author’s high efficiency tools Printing Die Cutting Machine.
Service: Based on the industry’s first use of PDM design file management system, complete technical support files, regardless of the long time can still be credible commitment to customers, continuous and efficient after-service for the customer support. 24 hours service with 12 engineers Printing Die Cutting Machine.
