Egg Meat Milk Box Corrugated Cardboard Printing Machine 200pcs/Min

Place of Origin Hebei China
Brand Name SOOME
Certification CE
Model Number 1200 X 2400
Minimum Order Quantity 1 set
Price contract
Packaging Details plastic folm
Delivery Time 120 days
Payment Terms L/C, T/T, Western Union
Supply Ability 40 per year
Product Details
Material Iron Voltage 220/380/440V
Conditon New Type Packaging Line
Certification CE Warranty 1 Year
Key Words Cardboard Box Printing Machine Color 5 Color
Speed 200pcs/min Weight 40T
High Light

Corrugated Cardboard Printing Machine


Corrugated cardboard box printing machine


200pcs/min Cardboard Printing Machine

Leave a Message
Product Description

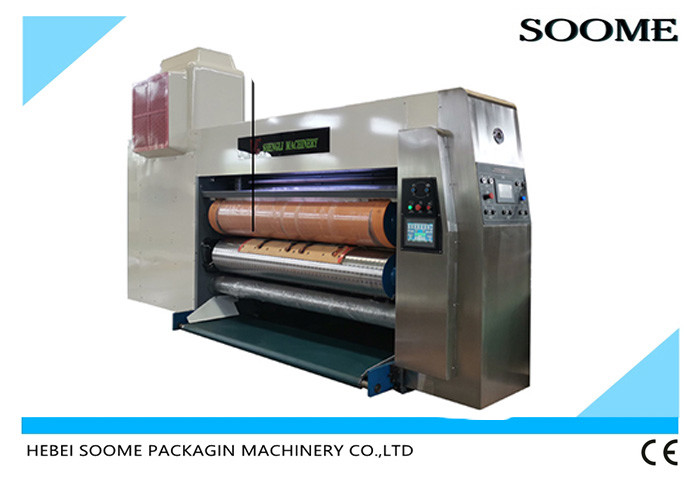

Egg Meat Milk Box Corrugated Cardboard Printing Machine

Used for corrugated cardboard box making

High definition and high speed corrugated flexo printing machine

Max feeding size(mm)
1800/2000*800> 1800/2200*1000 2500*1200/1400/1600 2800*1200/1400/1600 3200*1600
Max speed pcs/min) 250 200 160/150/120 150/140/120 120
Min feeding size(mm) 650*270 650*270 650*330/350/400 650*330/350/400 650*400
Skip feeding size(mm) 1800/2000*1000 1800/2200*1200 2500*1400/1600/1800 2800*1400/1600/1800 3200*1800
=Cardboard Thickness= 2-10 2-10 2-12 2-12 2-12
Max. printing size(mm) 1750/1950*750 1750/2150*950 2450*1180/1330/1580 2750*1180/1330/1580 3150*1580
Print plate depth (mm) 7.2
Min slot
Positive cut 120*120*120*120 120*120*120*120 140*140*140*140 140*140*140*140 140*140*140*140
Reverse cut 200*80*200*80 200*80*200*80 240*70*240*70 240*70*240*70 240*70*240*70
Max die cutter area(mm) 1700/1900*750 1700/2100*930 2400*1150/1310/1550 2700*1150/1310/1550 3100*1550

Egg Meat Milk Box Corrugated Cardboard Printing Machine 200pcs/Min 0Egg Meat Milk Box Corrugated Cardboard Printing Machine 200pcs/Min 1Egg Meat Milk Box Corrugated Cardboard Printing Machine 200pcs/Min 2Egg Meat Milk Box Corrugated Cardboard Printing Machine 200pcs/Min 3Egg Meat Milk Box Corrugated Cardboard Printing Machine 200pcs/Min 4

Function and characteristic of Corrugated cardboard flexo printing machine/Carton printer manufacturers


1.Lead edge feeding system , vaccum adsorption transmission Cardboard Printing Machine


2.The engine lubrication system is adopted automatic spray type lubrication, Equipped with automatic balancing device, keep the oil in every units at the same level Cardboard Printing Machine.

3.Reset function of one key combine and separate , the machine every unit separate and every unit combine one key reset , when separate unit the light work ,High accuracy and improve work efficiency.


Paper feeding unit


Lead edge feeder system, inverter adjust air volume, feeding in precision and steady Cardboard Printing Machine.


Double feeding roller model, quick replacement mechanism for the first feeding rubber roller, with spring adjustment function, it can prevent distortion and to ensure accurate feeding of cardboard Cardboard Printing Machine.


Brushes and suction device remove dust from board surface Cardboard Printing Machine.


Touch screen displays production speed and quantity Cardboard Printing Machine.


Adjust the feed interval by manual Cardboard Printing Machine.


Die cutting unit



Die cut unit roller adopt high quality steel, plated with rigid chrome. high precision dynamic and static balance increase running stable Cardboard Printing Machine.


Mould roller and rubber roller can auto separate by cylinder eccentric device when the machine don’t die cut, this can lighten machine load and increase rubber roller and die knife life Cardboard Printing Machine.


Matching with feeding system, it with auto up and down device, the rubber roller will down when feeding paper. The rubber roller will up when stop feeding paper. To make sure every paper die cut correctly Cardboard Printing Machine.


The mechanical transmission rubber roller move 58mm in left and right side. It also with wear and tear regular could increase the life of rubber roller Cardboard Printing Machine.


Die cut phase adopt PLC touch screen, 360 degree adjust electric number Cardboard Printing Machine.


Machine with rubber amend device, the rubber roller can be used after many times amend Cardboard Printing Machine.


Free die mould slotting unit, no need to make the die mould when making normal box, saving cost and improved efficiency. (optional )
