Product Details:
Place of Origin: Hebei China
Brand Name: SOOME
Model Number: 1200 X 2400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: contract
Packaging Details: plastic folm
Delivery Time: 120 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40 per year
Contact Now
Detailed Product Description
Certification: CE Material: Iron
Voltage: 220/380/440V Conditon: New
Type: Packaging Line Warranty: 1 Year
Key Words: Cardboard Box Printing Machine Color: 5 Color
Speed: 200pcs/min Weight: 40T
High Light:

flexo printer slotter die cutter

,

corrugated printer slotter die cutter

,

sunction transfer printer slotter

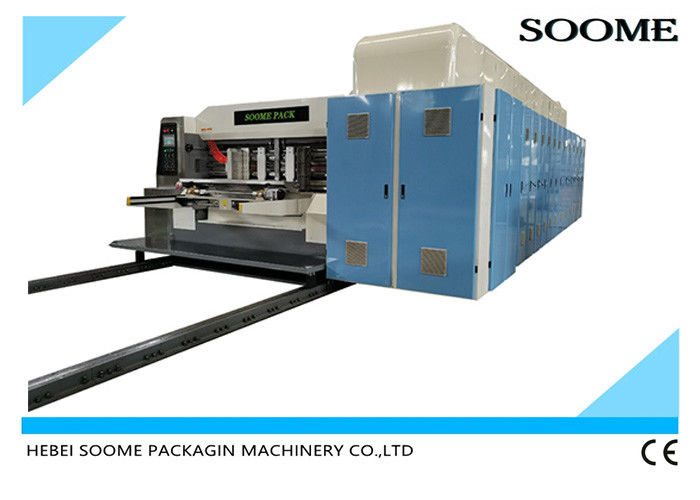

Sunction Transfer Corrugated Flexo Printing Slotting Die Cutter Machine

Used for corrugated cardboard box making

High definition and high speed corrugated flexo printing machine

Specification/
Max feeding size(mm)
1800/2000*800> 1800/2200*1000 2500*1200/1400/1600 2800*1200/1400/1600 3200*1600
Max speed pcs/min) 250 200 160/150/120 150/140/120 120
Min feeding size(mm) 650*270 650*270 650*330/350/400 650*330/350/400 650*400
Skip feeding size(mm) 1800/2000*1000 1800/2200*1200 2500*1400/1600/1800 2800*1400/1600/1800 3200*1800
=Cardboard Thickness= 2-10 2-10 2-12 2-12 2-12
Max. printing size(mm) 1750/1950*750 1750/2150*950 2450*1180/1330/1580 2750*1180/1330/1580 3150*1580
Print plate depth (mm) 7.2
Min slot
(mm)
Positive cut 120*120*120*120 120*120*120*120 140*140*140*140 140*140*140*140 140*140*140*140
Reverse cut 200*80*200*80 200*80*200*80 240*70*240*70 240*70*240*70 240*70*240*70
Max die cutter area(mm) 1700/1900*750 1700/2100*930 2400*1150/1310/1550 2700*1150/1310/1550 3100*1550

Sunction Transfer Corrugated Flexo Printer Slotter Die Cutter 0Sunction Transfer Corrugated Flexo Printer Slotter Die Cutter 1Sunction Transfer Corrugated Flexo Printer Slotter Die Cutter 2Sunction Transfer Corrugated Flexo Printer Slotter Die Cutter 3Sunction Transfer Corrugated Flexo Printer Slotter Die Cutter 4

Characteristics of each unit

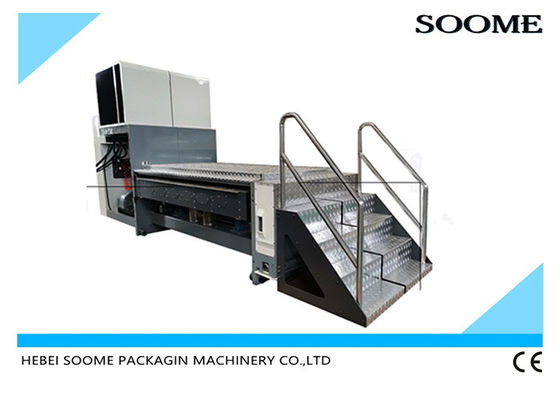

A. Feeding section
1) Main control panel consists of touch screen, VFD controller and buttons, convenient and reliable Flexo Printing Slotting Die Cutter Machine.
2) Main motor switching-on is controlled by double buttons which ensure the safety of the operators and the main machine Flexo Printing Slotting Die Cutter Machine.
3) Continuous and skip feeding (with counter) (choosing skip feeding if necessary) Flexo Printing Slotting Die Cutter Machine.
4) Paperboard feeding counting setting, displaying production quantity Flexo Printing Slotting Die Cutter Machine.
5) Left and right baffles are controlled by motor-driven with gauge display Flexo Printing Slotting Die Cutter Machine.
6) The gap of the front baffle is adjusted manually. And there are dust-removing brushes at the rear of the baffle to clean the
dust and miscellany and improve the printing quality Flexo Printing Slotting Die Cutter Machine.
7) Four shafts front edge feeding motor 11.0Kw, auxiliary suction feeding, can adjust the suction strength as per the warping
degree of the paperboards to ensure smooth feeding Flexo Printing Slotting Die Cutter Machine.
8) Upper feeding roller outer dia. 149 mm, coated with anti-wear rubber which can avoid to press down the paperboard Flexo Printing Slotting Die Cutter Machine.
9) Lower feeding roller outer dia. 149mm, chrome coat with anilox Flexo Printing Slotting Die Cutter Machine.
10) Cross slide block coupling transmission to decrease abrasion and make transmission much more stable Flexo Printing Slotting Die Cutter Machine.
11) Electromotive control clutch, and with continuous alarming while moving to ensure the operators safe Flexo Printing Slotting Die Cutter Machine.
12) Driving shaft with electromagnetic abrasion clutch to avoid faulty operation or protect motors while overload Flexo Printing Slotting Die Cutter Machine.
13) Automatic return to zero in Feeding, printing and die cutting sections Flexo Printing Slotting Die Cutter Machine.
14) Air pressure interlocking devices Flexo Printing Slotting Die Cutter Machine.

B. Printing units
1. Forme roller
1) Forme roller outer dia. 390.6mm (405mm including the forme) Flexo Printing Slotting Die Cutter Machine
2) Printing roller with fine grinding and chrome coated Flexo Printing Slotting Die Cutter Machine.
3) Balancing correction, stable running Flexo Printing Slotting Die Cutter Machine.
4) Forme-hanging device, single side locking, accurate, convenient and fast Flexo Printing Slotting Die Cutter Machine.
5) Forme-hanging groove at the whole forme, suitable for 10mm forme-hanging slices Flexo Printing Slotting Die Cutter Machine.
6) Foot switch electromotive control the rotation making it easy to mount and disassemble the forme Flexo Printing Slotting Die Cutter Machine.
2. Print-pressing roller
1) Outer dia. of the print-pressing roller 130mm Flexo Printing Slotting Die Cutter Machine.
2) Fine grinding with chrome coated Flexo Printing Slotting Die Cutter Machine.
3) Balancing correction, stable running Flexo Printing Slotting Die Cutter Machine.
4) Self-locking device for the gap adjustment, adjusting range 0-11mm Flexo Printing Slotting Die Cutter Machine.
5) Flexo Printing Slotting Die Cutter Machine Flexo Printing Slotting Die Cutter Machine
3. Ceramic anilox rollers(180LPI – 700LPI optional) Flexo Printing Slotting Die Cutter Machine.
1) Anilox roller dia. 187.57mm Flexo Printing Slotting Die Cutter Machine.
2) ceramic material.
3) Even ink applying, lengthen the life of the forme and the rubber roller Flexo Printing Slotting Die Cutter Machine.
4) Air pressure automatic lifting gear match the feeding section (the anilox roller descends to contact with the forme while
printing, and the anilox roller lifts to depart from the forme while stopping printing) Flexo Printing Slotting Die Cutter Machine.
5) Double doctor blade chamber system
Doctor blades form a sealed chamber with the ink inside,promote the printing quality with excellent inking quality (much better
than the rubber roller inking system) Flexo Printing Slotting Die Cutter Machine.
It can save much ink during the printing process. Automatic clear system for the anilox rollers and doctor blade .
China famous brand Flexo Printing Slotting Die Cutter Machine.

C. Die cutting section
Accuracy of die cutting: ±1.0mm
1. Operation
1) The die roller and the anvil roller will separate automatically via cylinder eccentric device while not die cutting, which can
decrease the idle load and lengthen life of the anvil and the die.
2) Plant-type gear structure, the same as that in printing section.
3) PLC control and 360 degree electric and digital adjustment for the die cutting phases.
4) Electric digital transverse movement, range: 10mm.
5) with the anvil correction device which can make the anvil roller to be used repeatedly.

2. die roller (lower roller)
1) Outer dia. 360mm, not including the die.
2) Cast with fine grinding and hard chrome plated
3) Balancing correction, stable running.
4) The hole distance of the fixing screw for the die, axial direction: 100mm, radial: 20 aliquot.
5) Knife height: 25.4mm.
Wooden die plate thickness: 16-18mm (for 3ply corrugation paperboard)
17-15.3mm (for 5ply corrugation paperboard)
3. Anvil roller (upper roller)
1) Outer dia. 384mm.
2) Alloy steel with fine grinding and hard chrome plated.
3) Balancing correction, stable running.
4) Manual adjustment the gat with the die.
5) Anvil thickness 10mm, width 250mm, normal life: 8 millions times cutting.
6) Mechanical transverse movement 50mm.
