Flexo 200pcs/Min Automatic Carton Box Making Machine

Place of Origin Hebei China
Brand Name SOOME
Certification CE
Model Number 1200 X 2400
Minimum Order Quantity 1 set
Price contract
Packaging Details plastic folm
Delivery Time 120 days
Payment Terms L/C, T/T, Western Union
Supply Ability 40 per year
Product Details
Material Iron Voltage 220/380/440V
Conditon New Type Packaging Line
Certification CE Warranty 1 Year
Key Words Cardboard Box Printing Machine Color 5 Color
Speed 200pcs/min Weight 40T
High Light

flexo automatic carton box making machine


flexo carton box making machine


200pcs/min automatic carton box making machine

Leave a Message
Product Description

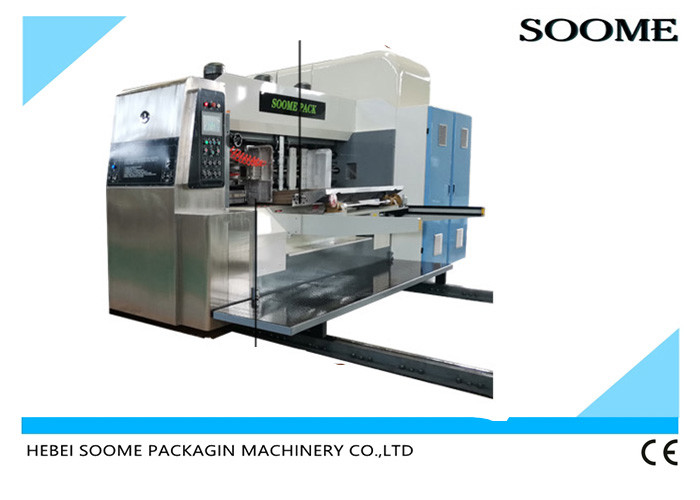

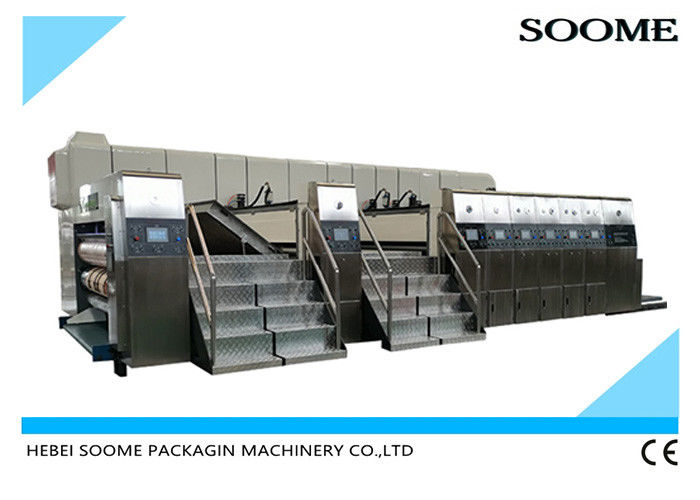

1224 Leading Edge Feeder Vacuum Transfer Flexo Carton Box Making Machine

Used for corrugated cardboard box making

High definition and high speed corrugated flexo printing machine

Max feeding size(mm)
1800/2000*800> 1800/2200*1000 2500*1200/1400/1600 2800*1200/1400/1600 3200*1600
Max speed pcs/min) 250 200 160/150/120 150/140/120 120
Min feeding size(mm) 650*270 650*270 650*330/350/400 650*330/350/400 650*400
Skip feeding size(mm) 1800/2000*1000 1800/2200*1200 2500*1400/1600/1800 2800*1400/1600/1800 3200*1800
=Cardboard Thickness= 2-10 2-10 2-12 2-12 2-12
Max. printing size(mm) 1750/1950*750 1750/2150*950 2450*1180/1330/1580 2750*1180/1330/1580 3150*1580
Print plate depth (mm) 7.2
Min slot
Positive cut 120*120*120*120 120*120*120*120 140*140*140*140 140*140*140*140 140*140*140*140
Reverse cut 200*80*200*80 200*80*200*80 240*70*240*70 240*70*240*70 240*70*240*70
Max die cutter area(mm) 1700/1900*750 1700/2100*930 2400*1150/1310/1550 2700*1150/1310/1550 3100*1550

Flexo 200pcs/Min Automatic Carton Box Making Machine 0Flexo 200pcs/Min Automatic Carton Box Making Machine 1Flexo 200pcs/Min Automatic Carton Box Making Machine 2Flexo 200pcs/Min Automatic Carton Box Making Machine 3Flexo 200pcs/Min Automatic Carton Box Making Machine 4

Feeder paper department(one unit)

1, Feed the leading edge positioning, frequency adjust the feed rate Carton Box Making Machine.
2. Adjustable air flow, increase warped cardboard and thin cardboard secure transmission, accuracy Carton Box Making Machine
3. Right and left side covers, a guide mechanism, the smooth displacement accuracy Carton Box Making Machine
4. Clutch, pneumatic locking, safe and reliable Carton Box Making Machine.
5.The feed roller is seamless wear rubber wrapped and do balance correction Carton Box Making Machine.
6.Lower feed roller is seamless embossed hard chrome plating, balance correction Carton Box Making Machine.
7.Feed roll gap adjustment dial worm adjustment range 0-12mm, the use of cross-slider mechanism, when adjusted to ensure the correct transmission gear is always engaged state Carton Box Making Machine.
8.Computer adjustment device Carton Box Making Machine

Printing department :(equipped with ceramic anilox roller and doctor blade)

1.printing roller 1)Steel material, surface grinding, hard chrome plating. 2)Balance correction, smooth operation. 3) Type using thorns hanging version, convenient, reduce printing test print and scrap 2. printing press roller 1)Steel surface grinding, hard chrome plating. 2)Balance correction, smooth operation. 3)Between the printing press roller and the printing roll dial display, manual adjustment, the adjustment range 0-12mm, using rocker panels institutions, adjust the transmission gear is always to ensure the correct rodents state. 4)Steel surface using advanced hard chrome plating process, hard, smooth, wear-resistant. 5)When feeder with pneumatic lift net roller to prevent duplication inked plate and short downtime, network roll hole in the ink dry.

3. Rubber roller (optional 80% natural rubber high temperature refining) 1)Seamless steel surface wear rubber wrapped by balance correction. 2)High special rubber roller grinding, good ink transfer effect. 3)Cots with overload device, can significantly extend the life of rubber roller. 4. Upper and lower feeding paper roller 1)Upper roller:with left and right adjustable feed roller 2)Lower roller :seamless, surface grinding, hard chrome plating. 3)Gap between the upper and lower feed rollers dial display, worm adjustment, the adjustment range 0-12mm, using the rocker panels connected, always adjusting the transmission gear teeth together to ensure the correct center distance. 4)Anilox roller Thick-walled seamless steel pipe, through balance correction, surface grinding, coining Identifies the mesh is, a group of 200, two groups 220,3 240,4 group 240 group Phase adjustment 1), the differential planetary gear mechanism 2), the printing phase micro controller and electric digital 360 ° adjustment (the machine is running, stop can be adjusted) 3), the lateral position of the hand wheel adjustment. Ink circulation 1), the use of pneumatic diaphragm pumps ink, ink stability, operation and maintenance simple. 2), the ink filter, filter impurities. 3), with automatic inking unit, the ink can be realized down stop function to prevent the shutdown of the ink dry. 4), the ink reservoir cup to prevent ink splashes and exhaust. 5), the automatic cleaning cycle and automatic ink.
