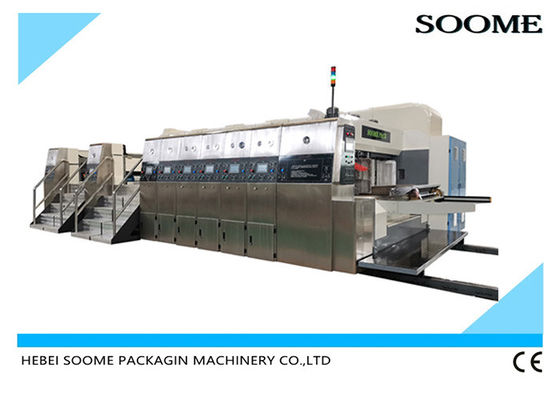

Colorful Box Coating Paper 2.4m Corrugated Printing Machine

Colorful Box Coating Paper 2.4m Corrugated Printing Machine

  • Colorful Box Coating Paper 2.4m Corrugated Printing Machine
  • Colorful Box Coating Paper 2.4m Corrugated Printing Machine
  • Colorful Box Coating Paper 2.4m Corrugated Printing Machine
  • Colorful Box Coating Paper 2.4m Corrugated Printing Machine
  • Colorful Box Coating Paper 2.4m Corrugated Printing Machine
  • Colorful Box Coating Paper 2.4m Corrugated Printing Machine
Colorful Box Coating Paper 2.4m Corrugated Printing Machine
Product Details:
Place of Origin: Hebei China
Brand Name: SOOME
Model Number: 1200 X 2400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: contract
Packaging Details: plastic folm
Delivery Time: 120 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40 per year
Contact Now
Detailed Product Description
Certification: CE Material: Iron
Voltage: 220/380/440V Conditon: New
Type: Packaging Line Warranty: 1 Year
Key Words: Cardboard Box Printing Machine Color: 5 Color
Speed: 200pcs/min Weight: 40T
High Light:

2.4m Corrugated Printing Machine

,

2.4m corrugated box printing machine

,

440V Corrugated Printing Machine

2.4m Corrugated Colorful Box Coating Paper Printing Machine

Used for corrugated cardboard box making

High definition and high speed corrugated flexo printing machine

Specification/
Max feeding size(mm)
1800/2000*800> 1800/2200*1000 2500*1200/1400/1600 2800*1200/1400/1600 3200*1600
Max speed pcs/min) 250 200 160/150/120 150/140/120 120
Min feeding size(mm) 650*270 650*270 650*330/350/400 650*330/350/400 650*400
Skip feeding size(mm) 1800/2000*1000 1800/2200*1200 2500*1400/1600/1800 2800*1400/1600/1800 3200*1800
=Cardboard Thickness= 2-10 2-10 2-12 2-12 2-12
Max. printing size(mm) 1750/1950*750 1750/2150*950 2450*1180/1330/1580 2750*1180/1330/1580 3150*1580
Print plate depth (mm) 7.2
Min slot
(mm)
Positive cut 120*120*120*120 120*120*120*120 140*140*140*140 140*140*140*140 140*140*140*140
Reverse cut 200*80*200*80 200*80*200*80 240*70*240*70 240*70*240*70 240*70*240*70
Max die cutter area(mm) 1700/1900*750 1700/2100*930 2400*1150/1310/1550 2700*1150/1310/1550 3100*1550

Colorful Box Coating Paper 2.4m Corrugated Printing Machine 0Colorful Box Coating Paper 2.4m Corrugated Printing Machine 1Colorful Box Coating Paper 2.4m Corrugated Printing Machine 2Colorful Box Coating Paper 2.4m Corrugated Printing Machine 3Colorful Box Coating Paper 2.4m Corrugated Printing Machine 4

Fuction

1. Triaxial leading edge servo paper feed system,the vacuum pressure is adjusted by frequency converter,suitable for different board sizes and variable board.
2. The whole machine is designed and manufactured according to reliability function and safety. Accordance with European CE standards.
3. Remote computer maintenance (if the client has networking conditions), quickly solve equipment failures, improve service efficiency, reduce maintenance costs.
4. All driving rollers are made of high quality steel,abrasive grinding and hard chrome plated on the surface.
5. Each unit is equipped with an emergency stop switch, which can stop the walking of each unit internally to ensure safety.



Electrical automatic control system

1. Most of the electrical components are international famous brands,the main control adopts PLC computer technology,the touch screen is installed in the paper feeding section, printing section, slotting section and die-cutting section to store memory parameters.
2. Equipped with ink shortage alarm device.
3. Lack of paper stop feeding function, the anilox roller is lifted at the same time to prevent empty printing.

Triaxial leading edge roller wheel vacuum adsorption paper feeding system,the frequency changer adjusts the vacuum pressure, accommodate the different paperboard size and the variable paperboard.
The whole machine is designed and manufactured according to reliability function and safety, in accordance with European CE standard.
Remote maintenance of computers (customers with networking conditions), quickly solve equipment failures, improve service efficiency, reduce maintenance costs.
All drive rollers are made of high quality steel with abrasive and hard chrome plated surface.
Each unit is equipped with an emergency stop switch, which can stop the walking of each unit internally to ensure safety.
Centralized treatment of paper dust to keep the working environment clean.
Order storage for 100,000, automatic zero, automatic reset.
The modular design facilitates the equipment upgrade.
The transmission gear is made of high quality steel and grinded, after heat treatment, HRC hardness is greater than 60 degrees.
The application of keyless shaft collar, transmission gear and shaft do not loose after long-term using, to ensure the accuracy of printing.
The whole machine adopts high precision ball screw for more accurate adjustment and durability.

Most of the electrical components are international famous brands,the main control adopts PLC computer technology,touch screen is installed in the paper feeding section, printing section, slotting section and die-cutting section to store memory parameters.
Equipped with ink shortage alarm device.
Lack of paper stop feed function, anilox roller lifted at the same time to prevent empty printing.
Each part is pneumatically locked and electrically separated. When separating, the feeding wheel will brake automatically to ensure the accuracy of the next printing.
Plate changing function, can make the printing plate roller stay in a fixed position, hanging plate slot exposed, convenient for plate changing.
Equipped with function of anilox roller does not close on the rubber roller to prevent ink leakage.
