| Place of Origin: | Made in China |
| Brand Name: | SOOME |
| Certification: | CE |
| Model Number: | SMDB-160I |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | contact |
| Packaging Details: | Wooden case or plastic film 1*40' container |
| Delivery Time: | 40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets / month |
| Type: | Packaging Line | Voltage: | 380V/400V/415V Or Others |
|---|---|---|---|
| Application: | Machinery & Hardware | Driven Type: | Hydraulic |
| Automatic Grade: | Automatic | After-sales Service Provided: | Online Support,Free Spare Parts,Video Technical Support |
| Warranty: | 1 Year | Usage: | Making Carton,Packaging,CORRUGATING CARDBOARD |
| Keywords: | Waste Paper Baler Machine | Machine Type: | Corrugated Paperboard Making Machine,Carton Packaging Machinery |
| High Light: | 180 Ton corrugated baler,Hydraulic corrugated baler,Automatic corrugated baler |
||

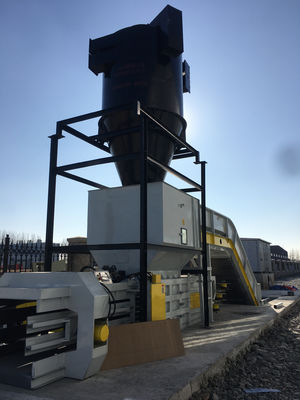

180 Ton Hydraulic Type Automatic Corrugation Package Baler Machine
Automatic compression,automatic package baler machine,continuous package,suitable for any installation,solid waste after compressed bundles,easy storage and storage,prevention of fire hazards,reduce transport costs by exceeding national allowable load.
1 . Package baler machine Continuous package,fast package delivery,package length arbitrary setting,high packing density,steady action.low failure rate,increase speed,saving labor costs,saving electricity consumption,can meet all customer output needs.
2 . Hydraulic motor chain drive, curved hook wire binding device, low speed failure rate and easy to clean and maintain
3 . Computer Automation Control: One-click start/auto-press/no personnel control,Schneider(IPC Computer-PLC)/ Schneider(7 inch true color touch screen)Automated man-machine interface(Automation control)Cost savings
4 . Autonics Korea material monitoring system,accurate and stable material detection control to avoid trapezoidal package,Make the package firm, smooth and beautiful
5 . Electrical Safety Control:DC24V isolation power/(Ensuring personal safety)Main power supply overcurrent and overload protection/break item missing item protection/system overpressure protection alarm shutdown/conveyor overload and overcurrent protection/automatic detection/alarm reminder/fault reminder
6 . Using corrugated serrated double-shear swallowtail knife to improve shear efficiency and prolong the service life of the blade
7 . Unique (barrier-free) feed box, feed more smoothly, no jam phenomenon
8 . International standard circuit layout, detailed and clear electrical wiring marking, components control parts marking, improve maintenance efficiency
9 . Hull welding process is adopted to ensure welding strength and more stable and reliable equipment
10 . Wide range of applications: suitable for waste paper, plastic, straw, straw and other soft solid waste compression, to save transportation costs
11 . No special site foundation requirements, easy to install construction
| Model | SMDB-160I Package Baler Machine | ||
| Package Baler Machine size | Hydraulic control | ||
| Package size | L800~1500mm*W750mm*H750mm | Oil pump | Double oil pump with high pressure and large flow rate |
| Feed port size | L1000mm*W690mm*H1200mm | Oil road control | High and Low Pressure Automatic Variable Speed Valve Body / Control System |
| Compressed cavity size | L2450mm*W750mm*H750mm | Hydraulic control | Insert valve integrated forging valve body/control system |
| Host machine size | L6230*(W1650~3400)*H970+1200mm | Solenoid valve control | DC24V Ultra-low voltage (to ensure personal safety) |
| Installation size | L10~15m*W5~8m*H4~6m | Hydraulic oil capacity | 46#32# Antiwear hydraulic oil/500 L |
| Dynamic system | Electrical automatic control system | ||
| Main power | YX3-4 series 11Kw/15Hp | Suppression control | One-click start-up/automatic suppression/no personnel control |
| Main cylinder | Φ194mm/φ160mm/φ110mm/1800mm | operation control | Automated man-machine interface/automated control |
| Main cylinder thrust | 50T/490kn(25mpa) | IPC Computer | Schneider IPC - PLC |
| Working pressure | 18~20mpa | Touch screen | Schneider 7 inch true color touch screen |
| Main oil pump | VQ series double pumps/25/20 | Material monitoring | Autonics Korea material monitoring system |
| Main oil pump | (high pressure oil pump x1set+Low pressure oil pump x1set) | Source | AC380/50hz/3 phase |
| Performance | Bale line parameters | ||
| pressed density | 400~500/m³ | Number of bundles | 3 pcs |
| pressing speed | Forward 15.72 s/ Back 8.29 s/ Cycle | Bale line material | Annealed Iron Wire Φ3.0~3.2mm |
| Suppressed production | Theoretical value: feed 1m³=40~60kg/1.5~2.5T hr | Blade line control | Automatic winding baling system |
| Automatic hold System | Cooling Control (Independent Cooling System) | ||
| Hold the main cylinder | Φ146mmφ125mmφ70mm-150mm*2set | Motor power | YX3-4 series 5.5Kw |
| control method | Left and right side telescopic hold (hydraulic cylinder) | Oil pump | YUKEN Japan PV2R series |
| Automatic control | Set density pressure (automatic control) | Chiller | Dongxu * Air-cooled Jinyu * Water cooled |
