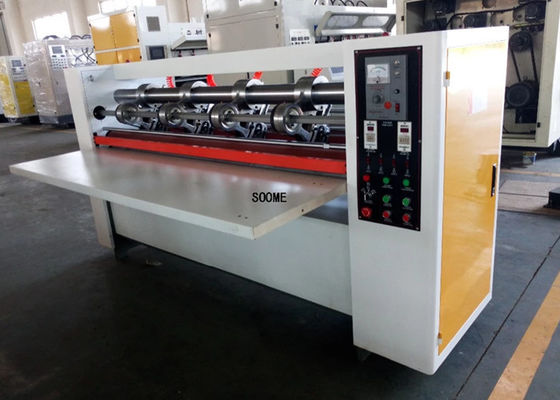

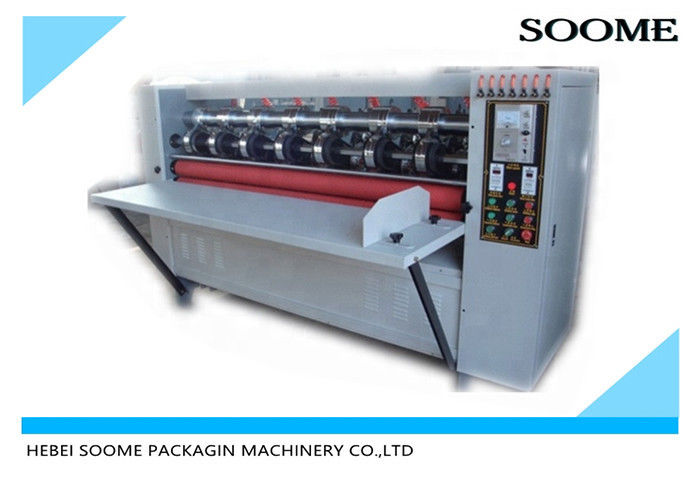

8 Shaft 2000mm Manual Adjustment Tungsten Slitter Scorer

  • 8 Shaft 2000mm Manual Adjustment Tungsten Slitter Scorer
  • 8 Shaft 2000mm Manual Adjustment Tungsten Slitter Scorer
Place of Origin Made in China
Brand Name SOOME
Certification CE
Model Number SMBD-SD-2000
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details wooden case or film.
Delivery Time 14 days after deposit
Payment Terms L/C, T/T, MoneyGram
Supply Ability 30 sets per month
Product Details
Product Name Manual Adjustment Thin Blade Slitter Scorer Condition New
Driven Type Manual Adjustment Type Thin Blade Slitter Scorer
Function For Corrugated Paper Dividing Creasing Color Customer's Request
Keywords Thin Blade Slitter Scorer Machine Voltage 220V/380V/440V
Place Of Origin Hebei, China Automatic Grade Semi-Automatic
High Light

Tungsten Slitter Scorer

,

8 Shaft Slitter Scorer

,

2000mm Slitter Scorer
Leave a Message
Product Description

8 shaft 2000mm Manual Adjustment Tungsten Thin Blade Slitter Scorer

1. Summarize



Thin blade slitter scorer used for slitting corrugated paperboard, adopting high quality tungsten steel blades, sharp and long working-life, slicing tidyly. Thin blade slitter scorer 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend 2-10mm thickness corrugated paperboard. Minimum the length of feeding paperboard is 260mm.



2. Features and Functions



1) Thin blade slitter scorer adopts high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.

2) Thin blade slitter scorer for slitting and creasing corrugated paperboard adopting 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.

3) 8 shaft design,two shafts in front and back of the slitter, can minimize the length of paperboard machining for thin blade slitter scorer machine.

4) Adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency with thin blade slitter scorer.

5) Option eletric adjusted blades and scorers for thin blade slitter scorer.

6) Thin blade slitter scorer is for high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-poressing and non-burr.

7) Manual adjusted the space of slitter blade, auto pneumatic locking for this thin blade slitter scorer, easy to operate, improve the efficiency.

8) Scorer electrically adjusted, the above scorer pneumatic lifting, dual smooth shaft guidy way, pneumatic locking, fast order changing.
The scorer part for this thin blade slitter scorer adopts above&lower button for rectification, can make the above amd lower scorers align center.
9) Thin blade slitter scorer can set the quantity of the paperboard, automatic stop the feeding after finishing for the thin blade slitter scorer.
10) Auto suction feeding, assured the safety of workers and decreased the working load. Thin blade slitter scorer is suitable to a large scale paperboard maching.



3. Technical Parameters



Type SMBD-SD-2000 SMBD-SD-2500 SMBD-SD-3000
Effective width 1800mm 2300mm 2800mm
Min slitting spacing 150mm 150mm 150mm
Min scorer spacing 30mm 30mm 30mm
Min paper length 260mm 260mm 260mm
Total power 3kw 4kw 4kw
Dimensions(L*W*H) 2600*800*1450mm 3100*800*1450mm 3800*800*1450mm



















8 Shaft 2000mm Manual Adjustment Tungsten Slitter Scorer 0
