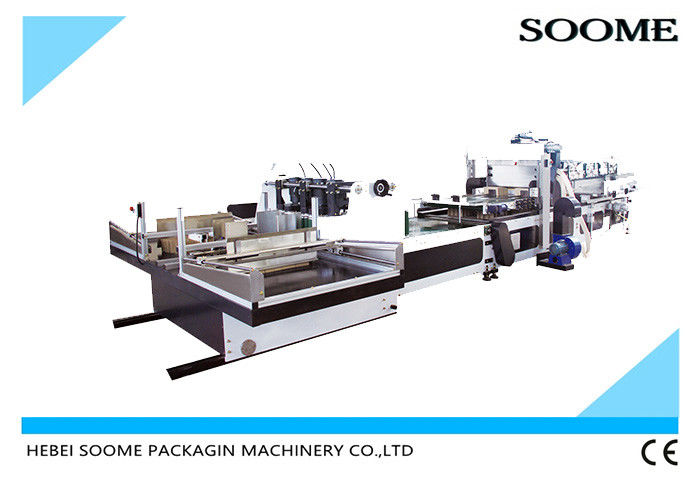

Cardboard Partition Assembly 3.7kw Automatic Corrugation Machine

Place of Origin Hebei China
Brand Name Soome
Certification CE
Model Number SM-1500
Minimum Order Quantity 1 set
Price contract
Packaging Details plastic film
Delivery Time 30 days
Payment Terms L/C, T/T, Western Union
Supply Ability 80 set per month
Product Details
Voltage 380V/400V/415V Or Other Driven Type Electric And Pneumatic
Automatic Grade Automatic Condition New
Packaging Material Plastic, Wood Weight 3500kg-7500kg
Dimension(l*w*h) 4200x2200x2000 Power 3.7KW
Warranty 1 Year Machine Type Carton Packaging Machinery
After-sales Service Provided Engineers Available To Service Machinery Overseas
High Light

3.7kw Automatic Corrugation Machine


Partition Assembly Automatic Corrugation Machine


3.7kw partition assembly machine

Leave a Message
Product Description

Automatic Corrugated High Speed Cardboard Partition Assemble Machine

Used for cardboard partition making

Cardboard Partition Assembly 3.7kw Automatic Corrugation Machine 0

< border="0" ori-width="750" ori-height="306" />

Name Unit Data
Horizontal inserting width: A mm 120~900
Lengthways sheets length: B mm 210~450
Clapboard Height: C mm 85~300
Lengthways clapboard distance: D mm 20~400
Horizontal clapboard distance: E mm 45-850
Lengthways sheets No. PCS 1-6
Horizontal clapboard No. PCS 1-21
Carton inserting mouth width:F mm >board thickness
Carton thickness:G mm 1.5~8mm

Cardboard Partition Assembly 3.7kw Automatic Corrugation Machine 1Cardboard Partition Assembly 3.7kw Automatic Corrugation Machine 2

Customer Prepare:

1. Air pressure: Work normal 0.4-0.8Mpa Partition Assemble Machine

2. Power Requirements: 380v 50Hz Three-phase four-wire syste Partition Assemble Machine

3.Electric wire need join to operate cabinet, and pneumatic pipeline need join to main pneumatic pipeline Partition Assemble Machine.

4.Test machine use die-cutting-clapboard Partition Assemble Machine

5.Machine use lubricate oil and grease Partition Assemble Machine

6.Foundation work Partition Assemble Machine.



SDJ series automatic collector is the follow-up machine of partition assembler. With the function of collect, count, part. It can instead of the manual perfectly.


Structure Features :

Suitable for the auto insertion of all kinds of carton clapboard Partition Assemble Machine.

Vertical direct using vacuum adsorption feeding , landscape orientation using servo feeding , quick and accurate Partition Assemble Machine .

Longitudinal and transverse to cross the two pieces of paper at the same time Partition Assemble Machine.

Longitudinal feeding shaft adopts electric lifting Partition Assemble Machine.

Landscape orientation feeding worktable lifting adopts electric adjustment Partition Assemble Machine.

Electric adjust the clapboard height in landscape orientation Partition Assemble Machine.

Output in double work positions, high efficiency and energy saving Partition Assemble Machine.

Touch screen input control, electric to adjust the clapboard parameters Partition Assemble Machine.

Comprehensive using of pneumatic and electric control, to ensure the advancement of machine control Partition Assemble Machine.

Using compressed air storage tanks for gas centralized supply, gas supply pressure stability, enough gas source.The gas devices get the gas from the primary tracheal , independent control, no influence between each other Partition Assemble Machine.

Equipped with fault detection device, auto stop the machine when paper blocking Partition Assemble Machine.

1.Vacuum sucker adsorb feed cardboard length ways Partition Assemble Machine
2.Pneumatic feed cardboard crosswise,right and fast Partition Assemble Machine
3.Electric adjust length ways feeding cardboard device go up and down Partition Assemble Machine
4.Electric adjust crosswise feeding cardboard device go up and down Partition Assemble Machine
5.Electrical adjust crosswise grating heigh Partition Assemble Machine at same time Partition Assemble Machine
7.Adopt t for every carton boxes,grating,parrying Partition Assemble Machine
8.Double station feed cardboard,double work efficiency Partition Assemble Machine
9.Pneumatic and electric control ensure the machine advancement Partition Assemble Machine
10.Adopt for compressed air hold-up vessel central gas supply,air pressure reliable Partition Assemble Machine
11.Testing faulting device,if has problem during the operation of machine,then will automatic stop work Partition Assemble Machine
12. PLC system ,easy operation Partition Assemble Machine
13.Design speed: 40-60sers/min Partition Assemble Machine
14.Air pressure: common pressure 0.6-1.0Mpa Partition Assemble Machine
15.Electric: 380V 50Hz 3phase 4line Partition Assemble Machine
