Carton Thin Blades Creasing Cardboard Slitting Machine

  • Carton Thin Blades Creasing Cardboard Slitting Machine
Place of Origin China
Brand Name Soome
Certification CE
Model Number SM-BD
Minimum Order Quantity 1 set
Price Contact
Packaging Details plastic film
Delivery Time 80 days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 set per year
Product Details
Voltage 220V/380V Automatic Grade Automatic
Condition New Driven Type Electric
Packaging Type Film Packaging Material Plastic
Dimension(l*w*h) 5200*1800*2000 Type Packaging Line
Color Write And Red Weight 4000kg
High Light

Creasing Cardboard Slitting Machine

,

Cardboard Creasing Slitting Machine

,

Thin Blades Cardboard Slitting Machine
Leave a Message
Product Description

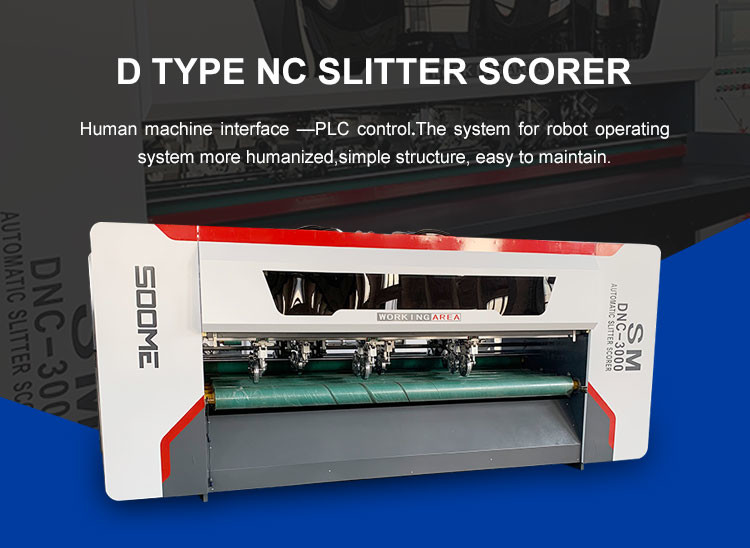

Carton Thin Blades Creasing Machine Cardboard slitting machine





Model SMBD-ANC-2750 SMBD-ANC-3250
No.s of slitting scoring 4/6 5/8 6/10
Max.production speed 180m/min Cardboard slitting machine
Max.feeding width The Max.slitting between the two blades:2250mm Cardboard slitting machine The Max.slitting between the two blades:2750mm Cardboard slitting machine
Max.slitting width 2600mm Cardboard slitting machine 3100mm Cardboard slitting machine
Min.slitting width 200mm Cardboard slitting machine 200mm Cardboard slitting machine
Min.feeding length 200mm Cardboard slitting machine

200mm Cardboard slitting machine
Min.scoring distance

40*135mm Cardboard slitting machine

 40*135mm Cardboard slitting machine
Gap adjustment Manual Cardboard slitting machine Manual Cardboard slitting machine
Main motor power 10kw  12kw
Dimensions L*W*H 1570*3450*1500mm 1570*3950*1500mm
Weigh 2780kg 2980kg









Carton Thin Blades Creasing Cardboard Slitting Machine 0

Carton Thin Blades Creasing Cardboard Slitting Machine 1



Carton Thin Blades Creasing Cardboard Slitting Machine 2





Function and features:





FEEDING UNIT:



The baffle size for screw adjustment, Cardboard slitting machine.



Can set the qty of paperboard,automatic stop feeding after finishing Cardboard slitting machine.



Automatic feeding the paper, Improve the safe operation,decreased the working load Cardboard slitting machine.

Cutting indentation for long cardboard Cardboard slitting machine.



SLITTER SCORER UNIT:



Electric adjusted the space of slitter blade,auto pneumatic locking, Double locking cylinder, stable operation, Convenient adjustment.The knife rest built-in polyurethane rubber, dust prevention,reduce the failure rate Cardboard slitting machine.



Slitting part: adopt the high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr



Adopt eight roll , two roll-rang feeding,easy to adjust.It could be do slitting only without scoring, avoid error when scoring Cardboard slitting machine.



Adopt automatic and manual two kinds grinding type Cardboard slitting machine.



Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, Cardboard slitting machine.



HRB bearing,long time running Cardboard slitting machine.



Q. Your company is a manufacturer or a foreign trade company?
Yes. We are manufacturer. HengYi carton machinery co., Itd is specialized in the production of packaging(carton)machine
Machineryand equipment manufacturers, main product packaging(carton,carton)mechanicalequipment,printing Machine,slottingmachine,
die cutting machine, gluing machine, paper dividing machine, box pasting machine,corner cutting machine.
Q. Which payment can offer?
We can accept the payment by T/T, L/C, Western Union, Paypal,Private Account, Cash,and others.
Q. How can you guarantee the products's quality?
We adhere to strict quality control procedures that begin with product design and carry through to the end of the production
process. In the whole process, to after many test, and finally after shipment inspection, the products leave the factory.
Q. Why choose a carton packaging machine?
Safe, environmentally friendly, resource recycling, the important is on boxin carton packaging to ensure quality and
cost-effective.
Q. How is your after sales service?
We can offer good technical support and good warranty for you after sales as professional manufacturer.
