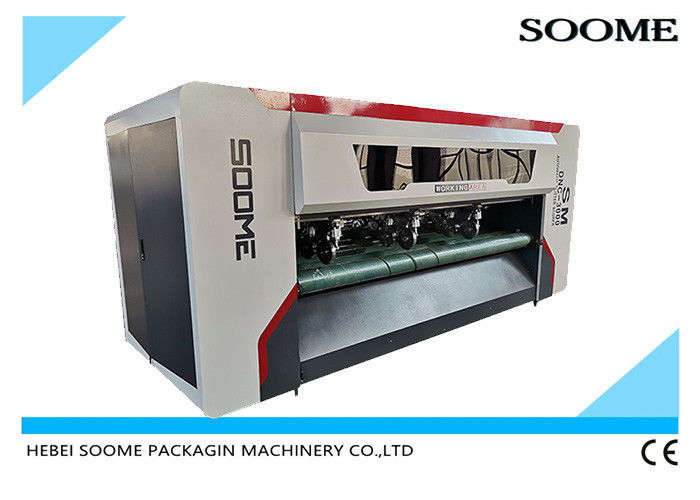

Corrugated Cardboard Thin Blade Slitter Scorer Machine

  • Corrugated Cardboard Thin Blade Slitter Scorer Machine
Place of Origin China
Brand Name Soome
Certification CE
Model Number SM-BD
Minimum Order Quantity 1 set
Price Contact
Packaging Details plastic film
Delivery Time 80 days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 set per year
Product Details
Voltage 220V/380V/440V Automatic Grade Automatic Grade
Condition New Driven Type Electric
Packaging Type Film Packaging Material Plastic
Dimension(l*w*h) 5500*1800*2000 Type Packaging Line
Color Write And Red Weight 5000kg
High Light

cardboard thin blade slitter scorer machine

,

corrugated thin blade slitter scorer machine

,

corrugated cardboard slitter scorer machine
Leave a Message
Product Description





3m Full Automatic Independent Rotary Carton Box Making Machine





Model SMBD-ANC-2750 SMBD-ANC-3250
No.s of slitting scoring 4/6 5/8 6/10
Max.production speed 180m/min Carton Box Making Machine
Max.feeding width The Max.slitting between the two blades:2250mm Carton Box Making Machine The Max.slitting between the two blades:2750mm Carton Box Making Machine
Max.slitting width 2600mm Carton Box Making Machine 3100mm Carton Box Making Machine
Min.slitting width 200mm Carton Box Making Machine 200mm Carton Box Making Machine
Min.feeding length 200mm Carton Box Making Machine

200mm Carton Box Making Machine
Min.scoring distance

40*135mm Carton Box Making Machine

 40*135mm Carton Box Making Machine
Gap adjustment Manual Carton Box Making Machine Manual Carton Box Making Machine
Main motor power 10kw  12kw
Dimensions L*W*H 1570*3450*1500mm 1570*3950*1500mm
Weigh 2780kg 2980kg









Corrugated Cardboard Thin Blade Slitter Scorer Machine 0

Corrugated Cardboard Thin Blade Slitter Scorer Machine 1



Corrugated Cardboard Thin Blade Slitter Scorer Machine 2





Corrugated Board Thin Blade Slitter Scorer And Creasing Machine Best Sale

The Corrugated Board Thin Blade Slitter Scorer And Creasing Machine Best Sale press the cardboard horizontally and divide the big cardboard into smaller ones. It is mainly aimed at the equipment used when there are many loose orders and the third-level factory produces cardboard boxes into the board without horizontal pressure lines Carton Box Making Machine.

The thin knife machine belongs to the carton processing machinery and equipment. It uses a cardboard thin line and a longitudinal slitting process. Because it uses an alloy thin knife, the paper is cut without burrs, and the line is neatly pressed Carton Box Making Machine.



Main function:
It is suitable for single ,double ,or more layers corrugated paperboard slitting and scoring Carton Box Making Machine.
It can divide paper, cut sides, press mark at one time Carton Box Making Machine
The main wallboard adopts high quality Cast iron, high precision processing Carton Box Making Machine.
Drive roller adopts high quality 45# steel ,hard chromium plating and the surface treated by lapping finish Carton Box Making Machine
Hand-wheel can adjust size, adjustment convenient and fast Carton Box Making Machine
The blades are made in Qingdao ,adopt high quality steel material ,processed by forging technology ,high frequency quenching ,Bowl
type design ,the blades are sharp and durable Carton Box Making Machine



Installation and Debugging

about 7-30 days installation and debugging

Training

about 2-5 days

Remote after service

when there is some problem with appliance software of our machine in customer's factory, tongbao company will romote check by net work. reply within 12 hours.solution will be given within 24 hours. ensure timely, efficient and low cost of solving problem.

Warranty

whole machine main part guaranteed for 1 year.

we present spare parts(for free) within 1 year.

suggest customers to buy necessary spare parts and quick-wear parts for two years.

10 years warranty for the main transmission gear insure the printing accuracy.
