150pcs/Min Lead Edge Feeder Cutter With Stacking Collection
|After-sales Service Provided||Avaliable||Voltage||380V 50HZ/220V 50HZ|
|Automatic Grade||Automatic||Type||Carton Cutting And Collection Machine|
|Warranty||1 Year||Name||Economic Lead Edge Feeder Cutting With Stacker|
|Application||Corrugated Carton Box||Color||Customer's Request|
feeder cutter with stacking collection,
lead edge feeder cutter,
150pcs/min feeder cutter

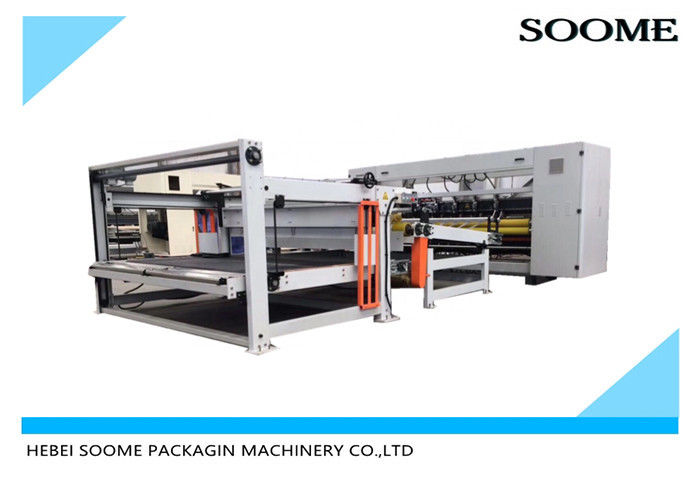

150pcs/Min Lead Edge Feeder Cutting Machine With Stacking Collection
Increasing the QTY of shafts of the cutting machine with stacking collection adopted two shafts in front and back of the slitter can minimize the length of cardboard which is suitable to the common paper and the small baffle paper. Electric control working width of the blades and automatic self locking on this cutting machine with stacking collection improve the working efficiency.
Features and Characteristics
1. Application: cutting machine with stacking collection for slitting,creasing,conveying,counting as well as stacking multiple size corrugated paper.
2. Performance description: the cutting machine with stacking collection achieves paper feeding,slitting as well as creasing of corrugated cardboard which improves the work efficiency for the users in the production of loose sheets. Its advantages for this cutting machine with stacking collection are automatic feeding, quick change of sheets, accurate positioning, high efficiency, simple operation, safety and reliability.
3. Highlights of the machine: Servo-controlled leading edge feeding mechanism to complete automatic paper feeding that matching the cutting machine with stacking collection. Automatic completion of the change of sheets, roller clearance linear automatic adjustment in this cutting machine with stacking collection.
Automatic paper feeding unit
1. Feeding paper for this cutting machine with stacking collection adopts servo control, which can automatically adjust the number of rotating turns of feeding wheel according to the length of cardboard, so as to realize stable feeding of cardboard of cutting machine with stacking collection with different lengths.
2. The cutting machine with stacking collection adopting the adjustable downdraft table and selecting the light pressure wheel mechanism, the high density pulley reduces the friction to the paperboard for cutting machine with stacking collection, thus making the paper feeding more smoothly and stably.
3. Side baffle position, back baffle position for cutting machine with stacking collection according to the width and length of cardboard automatically adjust positioning, and cutting machine with stacking collection has manual fine-tuning function.
Computerized slitter creasing unit
1. The gap between the cots and the height of the tool rest for this cutting machine with stacking collection is regulated synchronously to ensure the strength of the cardboard.
2. The position of the cutter wheel is automatically reset to zero, and the thin knife of the cutting machine with stacking collection adopts ultra-thin tungsten alloy steel with long service life.
3. The layout method of cutting machine with stacking collection is patented design, replacement order time is 15-25 seconds, precise positioning.
4. Adopt pneumatic / automatic lifting tool design for cutting machine with stacking collection, with flexible arrangement and simple operation.
5. Select high quality steel, guide rail beam box welded structure, improve the strength and stability of the whole machine equipped cutting machine with stacking collection.
Computerized automatic counting stacking unit
1. The use of two stages of belt conveyor frequency conversion control, according to the paper feeding speed automatic adjustment.
2. The end of the outlet of the paper wheel for cutting machine with stacking colloction is pressed out of the paper to prevent cardboard deviation.
3. Automatic control of hanging basket height, laser detection of stacking height, while controlling the drop between hanging basket and paper outlet to ensure the best stacking effect.
|Blade and scorer||5 blades 8 scorers|
|Max. Slitting width||3100mm|
|Min. Slitting width||135mm|
|Min. Creasing width||105mm|
|Min. Paper feeding length||360mm|
|Upper working table||Computer industrial integrated machine, touchable operation|
|Down working table||Schneider PLC|
|Leading edge feed drive||TECO / Schneider servo motor 3kw|
|Leading edge feed fan||Chinese brand 5.5kw|
|Changing order motor||TECO / Schneider servo motor 0.75kw|
|Cutter driving motor||Shandong power long inverter motor 5.5 kw-6|
|Flat belt paper driving motor||Taiwan Yong Kun gear reducer 1.5kw|
|Basket lifting||Gear reducer 2.2kw-40S|
|Suspension tray longitudinal paper discharge motor||Precision bevel gear reducer 1.5kw|
|Main drive inverter||Schneider series|
|Low voltage electrical appliances||Schneider low voltage apparatus|
|The main motor drive mode||Adopt imported synchronous belt drive device, which has stable transmission, high precision, long life and low running noise|
|The overall size of the whole machine||8800×4800×2100mm|
|Total motor power||26kw|
