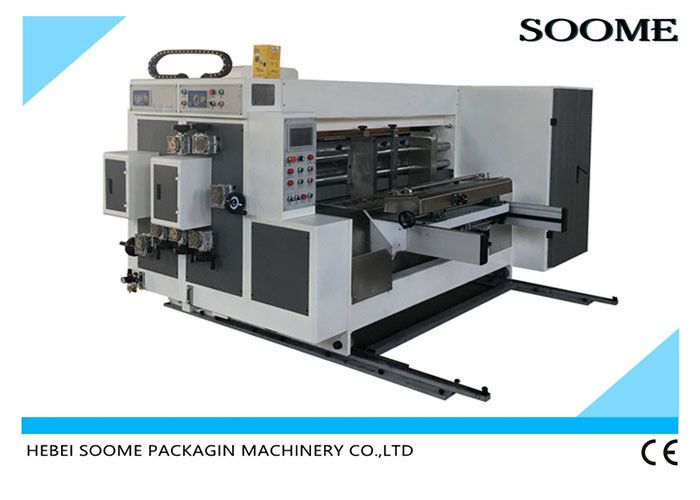

Leading Edge 120pieces/Min Automatic Corrugation Machine

Place of Origin Hebei province China
Brand Name SOOME
Certification CE
Model Number 2000 Type
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details wooden case packaging or wrapping with plastic film
Delivery Time 25 days after deposit
Payment Terms T/T, Western Union, L/C
Supply Ability 100 per/mounth
Product Details
Max Machine Speed 100—120pieces/min Max Feeding Size (L * W) 1700mmx620mm
Width Of Printing Roller 1600mm Min Feeding Size (L * W) 450mmx180mm
Condition New Warranty 1 Year
Roller Diameter Φ218mm Usage Making Carton
Machine Type High Speed Flexo Printing Machine Packaging Type Film
High Light

Leading Edge Automatic Corrugation Machine


High Speed Flexo Printing Machine


120pieces/min Automatic Corrugation Machine

Leave a Message
Product Description

Leading Edge Type Special Multi Colors Online Automatic Corrugation Machine


Machine introduction:


Automatic corrugation machine adopt manual sheets supplying, vacuum suction type automatic lead edge feeding. Automatic corrugated machine can finish corrugated cardboard printing, slotting, corner cutting, edge slitting, creasing, etc functions at the same time. Electrical carton height adjustment, equipped with ruler for easy size checking. The phase of slotting adjustment device is planetary gears structure, automatic corrugated carton adopt electrical adjustment in 360 degree. Above slotter and down knife holders and creasers can move left-right synchronously manually by professional tools. It is easy and convenient in using and maintenance, small and delicate, specially for small cartons printing slotting and forming.


Printing unit:


Automatic corrugation machine roller diameter Φ218mm, diameter with printing plate Φ230mm, adopt high quality thick seamless steel pipe, with surface grinding, hard chrome plating.

Automatic corrugation machine use famous Dalian Tengda anilox roller, high quality steel, mesh is 220LPI or 250LPI as per customer need.

Rubber roller adopt high quality wear / oil and acid-base resisting, medium height grinding, better ink distribution effect.

Automatic corrgation machine the printing roller pressure adopt high precision crosshead shoe gapless adjustment to do micro adjustment, can make the printing pressure reach the best condition.


Main structure and features:


1. Automatic corrugation machine the paper feeding shafts adopt rubbure roller with knurling, the pressure adjustment adopt eccentric wheels adjustment, left-right eccentric wheels pressure can be adjusted synchronously.


2. The sheet pushing plate adopt left right two sides baffles and back guard to fix the sheets, can avoid the above sheet moving malpostion when feeding the bottom sheet which will bring the wrong slotting. The baffles can fix different quality sheets, make sure the machine can feed in more steadily.


3. Automatic corrugation machine adopt electrical planetary gear phase adjustment to adjust the sheets size, can adjust directly without machine stop.


4. The rotary diecutter can die cut different shape cartons. With the slotting rings device.




8.8 the whole machine adopts high strength bolt reinforcement.

4.0kw variable frequency motor drive inverter control operation.

Phase by phase meter plus manual control

High electric control box

Transverses manually . Leading edge feeding paper

Electrical adopt universal haerbin

Lift version of automatic distributing, preventing downtime caused ink dries up.


Technical parameters:



Wallboard inner width2300mm

Max machine speed

100—120 pieces/min

Max feeding size (L * W)


Width of printing roller


Min feeding size (L * W)
