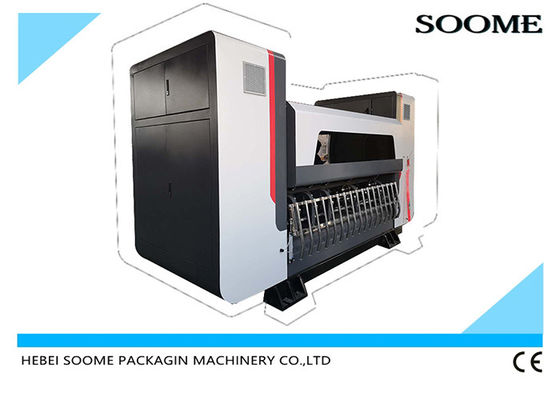

Corrugated Box 2200mm 24kw Thin Blade Slitter Scorer Machine

Place of Origin China
Brand Name Soome
Certification CE
Model Number SM-BD
Minimum Order Quantity 1 set
Price Contact
Packaging Details plastic film
Delivery Time 50 days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 set per year
Product Details
Voltage 220/380440V Automatic Grade Auto
Condition New Conditon Driven Type Electric Driven
Packaging Type Plastic Film Packaging Material Plastic Film
Dimension(l*w*h) 3000*1600*1900 Type Product Line
Weight 1.7T Certification CE
Blade 5-8 Scorer 7-14
High Light

Corrugated Box slitter scorer machine


24kw thin blade slitter scorer machine


2200mm thin blade slitter scorer machine

Leave a Message
Product Description

2200mm Online Slitter Creasing Machine

Nc Slitter Creasing Machine

Cardboard Product Line Slitter Creasing Machine

Model Slitter Creasing Machine 1800 Slitter Creasing Machine 2200 Slitter Creasing Machine 2500
Efficient width 1850mm Slitter Creasing Machine 2250mm Slitter Creasing Machine 2550mm Slitter Creasing Machine
Min. slitting width 135mm
Min. creasing width 0mm
Blade model Φ260*158*1.3mm
Creasing roller model φ130mm
Changing order time 1-3s(servo type)
Changing order time 3-8s(frequency type)
Correction range ±100mm
Precision ± 0.5mm
QTY of blade/scorer 5/8 6/10 7/12
Power(pre-creasing) 20kw 24kw 25kw
Power(normal type) 16kw 20kw 21kw
Boundary dimension
(pre-creasing type)
3840*2100*2450mm 4240*2100*2450mm 4540*2100*2450mm
Boundary dimension
(normal type)
3840*1720*2450mm 4240*1720*2450mm 4540*1720*2450mm
Depth of creasing 12mm
Design speed 150/200/250 m/min


Use for corrugated cardboard product line, for cardboard Slitter Creasing Machine

Use for pizza fruit vegetables ect boxes making Slitter Creasing Machine

Use for paperboard Slitter Creasing Machine


1.  High quality industry computer and high performance PLC make up the CNC system Slitter Creasing Machine.

2.  Adopt high precision linear guide way, grinding ball screw driving, can assure the slitting and creasing precision within ±0.5mm Slitter Creasing Machine.

3.  The convex flattening adopts dynamic optical axis, full-plate printing without drag marks Slitter Creasing Machine .

4.  The blade and scorer of this machine is driven by servo, and can be adjusted independently to reduce errors Slitter Creasing Machine.

5.  Single screw structure, less zero return origin, simple maintenance, small error Slitter Creasing Machine.

6.  The machine has compact structure, small vibration and long service life Slitter Creasing Machine.

7.  Automatically track the speed of production line to ensure synchronization with it. It can be connected with production management system and has strong compatibility Slitter Creasing Machine.

8.  Individual sealed electrical cabinet,dust-free,constant temperature and humidity ensure longer life Slitter Creasing Machine.

9.  Individual step motor and controller on each slitter and scorer sets,quick and accurate order change Slitter Creasing Machine.

10. Grinding knife is computer controlled automatic or manual grinding knife, passive grinding knife, lightweight structure, easy maintenance Slitter Creasing Machine Slitter Creasing Machine.

11.  Slitters and scorers are inverter controlled,speed synchronizes with board speed Slitter Creasing Machine.

12.  There are three types of scorers. Front row: Male-to-flat/ Pre-score; Back row: Male-to-female Slitter Creasing Machine.
