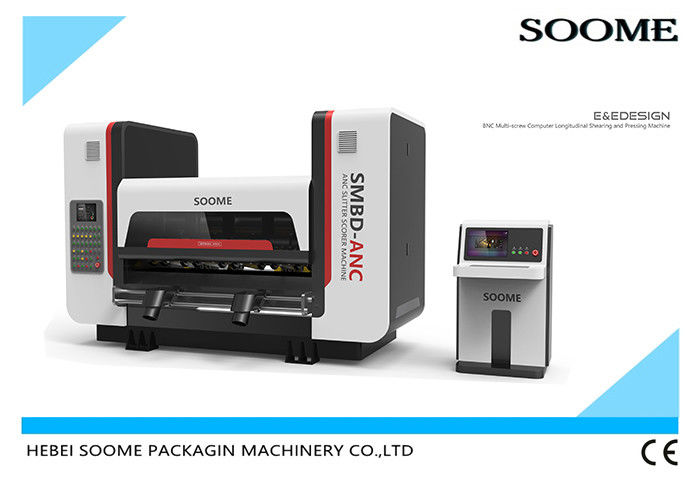

Automatic Cardboard 12mm Slitter Scorer Machine
| Place of Origin | China |
|---|---|
| Brand Name | Soome |
| Certification | CE |
| Model Number | SM-BD |
| Minimum Order Quantity | 1 set |
| Price | Contact |
| Packaging Details | plastic film |
| Delivery Time | 50 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100 set per year |
Product Details
| Voltage | 380/440V | Automatic Grade | Full Automatic |
|---|---|---|---|
| Condition | New Conditon | Driven Type | Electric Drive |
| Packaging Type | Film/wood | Packaging Material | Plastic Film |
| Dimension(l*w*h) | 3200*1600*1900 | Type | Packaging |
| Weight | 1.6T | Certification | CE ISO |
| Blade | 4-8 | Scorer | 6-14 |
| High Light | Cardboard slitter scorer machine,Automatic slitter scorer machine,12mm slitter scorer machine |
||
Product Description
2200mm Online Cutter Creasing Machine
Automatic Cutter Creasing Machine
Cardboard Cutter Creasing Machine
| Model | Cutter Creasing Machine 1800 | Cutter Creasing Machine 2200 | Cutter Creasing Machine 2500 |
| Efficient width | 1850mm Cutter Creasing Machine | 2250mm Cutter Creasing Machine | 2550mm Cutter Creasing Machine |
| Min. slitting width | 135mm | ||
| Min. creasing width | 0mm | ||
| Blade model | Φ260*158*1.3mm | ||
| Creasing roller model | φ130mm | ||
| Changing order time | 1-3s(servo type) | ||
| Changing order time | 3-8s(frequency type) | ||
| Correction range | ±100mm | ||
| Precision | ± 0.5mm | ||
| QTY of blade/scorer | 5/8 | 6/10 | 7/12 |
| Power(pre-creasing) | 20kw | 24kw | 25kw |
| Power(normal type) | 16kw | 20kw | 21kw |
| Boundary dimension (pre-creasing type) |
3840*2100*2450mm | 4240*2100*2450mm | 4540*2100*2450mm |
| Boundary dimension (normal type) |
3840*1720*2450mm | 4240*1720*2450mm | 4540*1720*2450mm |
| Depth of creasing | 12mm | ||
| Design speed | 150/200/250m/min | ||
Use for corrugated paperboard product line, for cardboard Cutter Creasing Machine
Use for wine fruit boxes making Cutter Creasing Machine
Use for cardboard Cutter Creasing Machine
1. High speed industry computer and high performance PLC make up the ANC system Cutter Creasing Machine.
2. Adopt precision linear guide way, grinding ball screw drivie, can ensure the slitting and creasing precision within ±0.5mm Cutter Creasing Machine.
3. Has the memory of 1000 orders, realize non-stop manual or automatic order changing, time within 3~8s. When two sets thin blade using together, can change order fast Cutter Creasing Machine.
4. The upper and down computer system consists of high-quality industrial computers and performance programmable controllers Cutter Creasing Machine.
5. High precision linear guide guide is used to grind ball screw transmission pair to ensure the positioning accuracy of the
Cutter Creasing Machine.
6. It can set multiple orders, and can change orders automatically or manually without stopping Cutter Creasing Machine.
7. Automatic track the speed of production line to ensure synchronization with it. It can be connected with product management system and has strong compatibility Cutter Creasing Machine.
8. Change orders fast, when two machine are used together, it can be realized to change orders without stopping Cutter Creasing Machine.
9. With tungsten steel blade, the blade is sharp and has a service life, more than 8 million meters Cutter Creasing Machine.
10. Grinding knife is computer control automatic or manual grinding knife, passive grinding knife, lightweight structure, easy maintenance Cutter Creasing Machine.
