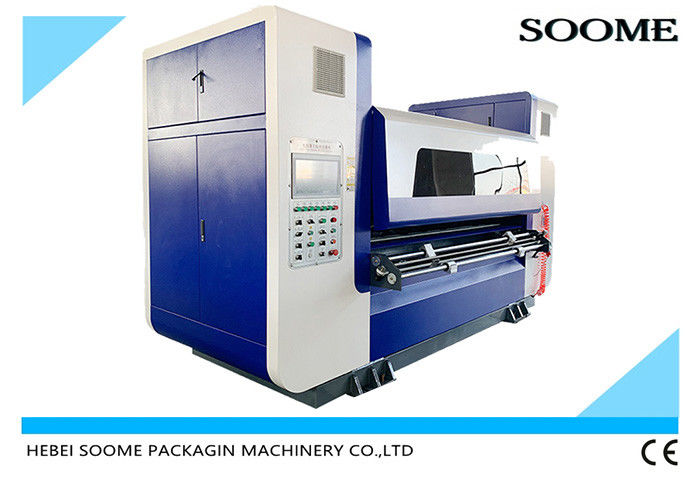

1800mm Nc Slitter Scorer Corrugated For Cardboard Product Line
| Place of Origin | China |
|---|---|
| Brand Name | Soome |
| Certification | CE |
| Model Number | SM-BD |
| Minimum Order Quantity | 1 set |
| Price | Contact |
| Packaging Details | plastic film |
| Delivery Time | 50 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100 set per year |
Product Details
| Voltage | 380V | Automatic Grade | Automatic |
|---|---|---|---|
| Condition | New | Driven Type | Electric |
| Packaging Type | Film | Packaging Material | Plastic |
| Dimension(l*w*h) | 3000*1600*1900 | Type | Packaging Line |
| Weight | 1.5T | Certification | CE |
| Blade | 4-7 | Scorer | 6-12 |
| High Light | Nc Slitter Scorer Corrugated,1800mm Slitter Scorer Corrugated,1800mm slitter scorer machine |
||
Product Description
1800mm Online Slitter Scorer
Nc Slitter Scorer
Cardboard Product Line Slitter Scorer
| Model | slitter scorer 1800 | slitter scorer 2200 | slitter scorer 2500 |
| Efficient width | 1850mm slitter scorer | 2250mm slitter scorer | 2550mm slitter scorer |
| Min. slitting width | 135mm | ||
| Min. creasing width | 0mm | ||
| Blade model | Φ260*158*1.3mm | ||
| Creasing roller model | φ130mm | ||
| Changing order time | 1-3s(servo type) | ||
| Changing order time | 3-8s(frequency type) | ||
| Correction range | ±100mm | ||
| Precision | ± 0.5mm | ||
| QTY of blade/scorer | 5/8 | 6/10 | 7/12 |
| Power(pre-creasing) | 20kw | 24kw | 25kw |
| Power(normal type) | 16kw | 20kw | 21kw |
| Boundary dimension (pre-creasing type) |
3840*2100*2450mm | 4240*2100*2450mm | 4540*2100*2450mm |
| Boundary dimension (normal type) |
3840*1720*2450mm | 4240*1720*2450mm | 4540*1720*2450mm |
| Depth of creasing | 12mm | ||
| Design speed | 150/200/250 m/min | ||
Use for corrugated cardboard product line, for cardboard slitter scorer
Use for pizza fruit vegetables ect boxes making slitter scorer
Use for paperboard slitter scorer
1. High quality industry computer and high performance PLC make up the CNC system slitter scorer.
2. Adopt high precision linear guide way, grinding ball screw driving, can assure the slitting and creasing precision within ±0.5mm slitter scorer.
3. Has the memory of 999 orders, realize non-stop automatic or manual order changing, time within 3~8s. When two sets slitters using together, can change order faster slitter scorer.
4. The upper and lower computer system consists of high-quality industrial computers and high-performance programmable controllers slitter scorer.
5. High precision linear guide guide guide is used to grind ball screw transmission pair to ensure the positioning accuracy of the slitting line slitter scorer.
6. It can store multiple orders, and can change orders automatically or manually without stopping slitter scorer.
7. Automatically track the speed of production line to ensure synchronization with it. It can be connected with production management system and has strong compatibility slitter scorer.
8. Change orders quickly, when two machines are used together, it can be realized to change orders without stopping slitter scorer.
9. With thin tungsten steel blade, the blade is sharp and has a service life of more than 8 million meters slitter scorer.
10. Grinding knife is computer controlled automatic or manual grinding knife, passive grinding knife, lightweight structure, easy maintenance slitter scorer.
`
