180pcs/Min Corrugated Carton Lead Feeder Linkage Line Machine

Place of Origin China
Brand Name SOOME
Certification CE
Model Number 1224 type
Minimum Order Quantity 1SET
Price Negotiation
Packaging Details wooden case with plastic film
Delivery Time 45 days after depoist
Payment Terms T/T, L/C, Western Union
Supply Ability 50 set/mounth
Product Details
Design Speed 200pcs/min Economic Speed 180pcs/min
Roller Diameter ø380 Max. Paper Size 1200x2400mm
Min. Paper Size 300x500mm Voltage 380V/400V/415V Or Others
Driven Type Electric And Pneumatic Warranty 1 Year
Wallboard Thickness 50mm Application Machinery & Hardware
High Light

180pcs/min linkage line machine

,

corrugated linkage line machine

,

carton linkage line machine

Leave a Message
Product Description

1224 Type Corrugated Carton Lead Feeder Linkage Line Machine



1. Can be set up continuous or skip feeding cardboard.(Have counter).

2. Lead feeder increased suction flow rate, feed more smoothly and accurately. Frequency conversion adjust vacuum and airflow, to fit for the board size.

3. Formfeed roller have double glue, maintain inner lining soft and rigid

4. outer, flexibility and ensure that the surface wear-resisting. Reduce the cardboard to be compressed.

5. Dust removal device, seven dust removal device, brush and fan can remove cardboard surface paper scrap, can be adjusted according to the size of the cardboard section.

6. Computer control to adjust feed roller clearance,left and right side baffle position.

7. The rear paper holder is electrically controlled front and back to accelerate the setting speed.

8. Host motor have protection device (the machine without solid lock, the host can't start running).



Printing part:



1. Scroll hanging version, lock device left and right sides, let hang version registration more accurately.

2. Printing phase, computer and electric digital control.

3. Horizontal phase, computer and electric digital control, range±10mm.

4. Vacuum transfer roller, embossing roller, rubber roller, anilox roll gap adjustment using computer and digital electronic control.

5. Printing phase fixing device, electromagnetic clutch brake mechanism, when the unit separation adjust phase or cleaning, the brake mechanism restricts gear rotation and maintains the fixed point of the original gear position.

6. Automatic cleaning device for switching to ink and recycling more thoroughly.

7. Automatic reset system after cleaning plate, scraper inking system.

8. Printing roller diameter is ø380 mm.



Parameter :



 touch screen Yong Hong, Taiwan
PLC (main control computer) Yong Hong, Taiwan
switching power supply Yong Hong, Taiwan
frequency converter Yong Hong, Taiwan
button Siemens
AC Contactor Siemens
intermadiate relay Siemens
travel switch Siemens
interrupter Siemens
magnetic clutch made in Zhejiang

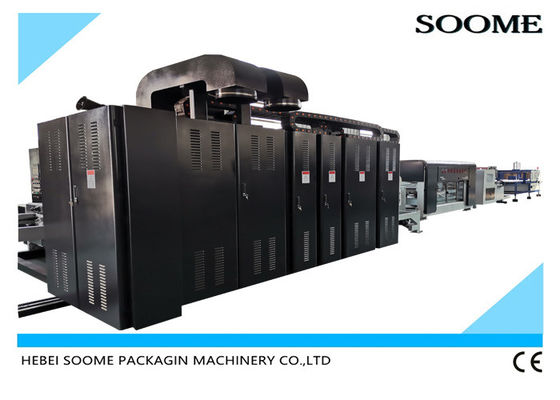

180pcs/Min Corrugated Carton Lead Feeder Linkage Line Machine 0
