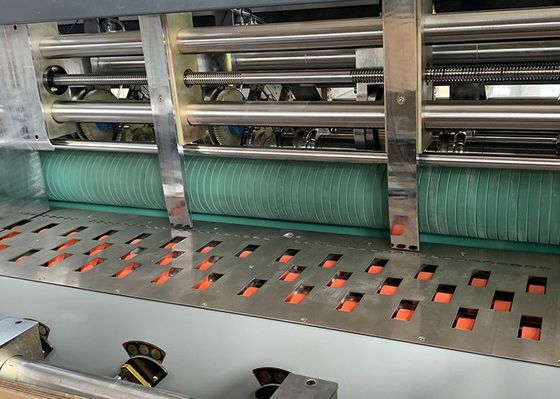

12kw Computerized Nc Corrugated Rotary Slitter Scorer Machine

12kw Computerized Nc Corrugated Rotary Slitter Scorer Machine

  • 12kw Computerized Nc Corrugated Rotary Slitter Scorer Machine
  • 12kw Computerized Nc Corrugated Rotary Slitter Scorer Machine
  • 12kw Computerized Nc Corrugated Rotary Slitter Scorer Machine
  • 12kw Computerized Nc Corrugated Rotary Slitter Scorer Machine
  • 12kw Computerized Nc Corrugated Rotary Slitter Scorer Machine
  • 12kw Computerized Nc Corrugated Rotary Slitter Scorer Machine
12kw Computerized Nc Corrugated Rotary Slitter Scorer Machine
Product Details:
Place of Origin: China
Brand Name: Soome
Certification: CE
Model Number: SM-BD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact
Packaging Details: plastic film
Delivery Time: 50 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 set per year
Contact Now
Detailed Product Description
Voltage: 380V Automatic Grade: Automatic
Condition: New Driven Type: Electric
Packaging Type: Film Packaging Material: Plastic
Dimension(l*w*h): 3000*1600*1900 Type: Packaging Line
Highlight:

rotary slitter scorer machine

,

Computerized slitter scorer machine

,

12kw slitter scorer machine



Computerized Nc Corrugated Then Knife Cutting Rotary Slitter Scorer Machine To USA





Model SMBD-ANC-2750 SMBD-ANC-3250
No.s of slitting scoring 4/6 5/8 6/10
Max.production speed 180m/min
Max.feeding width The Max.slitting between the two blades:2250mm The Max.slitting between the two blades:2750mm
Max.slitting width 2600mm 3100mm
Min.slitting width 200mm 200mm
Min.feeding length 200mm



200mm

Min.scoring distance

40*135mm



40*135mm
Gap adjustment Manual Manual
Main motor power 10kw 12kw
Dimensions L*W*H 1570*3450*1500mm 1570*3950*1500mm
Weigh 2780kg 2980kg



12kw Computerized Nc Corrugated Rotary Slitter Scorer Machine 0

12kw Computerized Nc Corrugated Rotary Slitter Scorer Machine 1

12kw Computerized Nc Corrugated Rotary Slitter Scorer Machine 2

12kw Computerized Nc Corrugated Rotary Slitter Scorer Machine 3





Function and features:





FEEDING UNIT:



The baffle size for screw adjustment,easy to operate.



Can set the qty.of paperboard,automatic stop the feeding after finishing.



Automatic feeding paper, Improve the safe operation,decreased the working load.



Cutting indentation for long cardboard.





SLITTER SCORER UNIT:



Electric adjusted the space of slitter blade,auto pneumatic locking,Double guide optical axis,Double locking cylinder,stable operation,Convenient adjustment.The knife rest built-in polyurethane rubber, dust prevention,reduce the failure rate.



Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr



Adopt eight roll , two roll-rang feeding, then scoring ,easy to adjust.It could be do slitting only without scoring, avoid error when scoring.



Adopt automatic and manual two kinds grinding type.



Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.



HRB bearing,long time running.



Mechanical parts



Taiwan HIWIN linear guide way.

Order changing used HIWIN precision ball screw.

Bearings:Germany FAG,China HRB famous brand.

Synchronous belt:Japan SUBAK.

Adopt raw material tungsten alloy thin blade



Name Brand From
Touch screen WEINVIEW Taiwan
PLC Panasonnic Japan
Circuit breaker SHILIN Taiwan
Electric relay Schneider France
Push-button ABB Switzerland
Main motor Yongshun Guangzhou
Actuator YANKONG CHINA
Driving motor YANKONG CHINA
Decelerator YONGKUN Taiwan
Photosensor OMRON Japan
Proximity switch OMRON Japan
Air cylinder Tianao China
Frequency transformer Mitsubishi Japan
Bearing RENBEN HRBIN
Blade 260×158 8 hole Chengdu Shengong
Electromagnetic valve Tianao China



















































Control system



Slitter and scorer order changed motor:Taiwan Delta AC servo motor(26sets for 6 blades 10 scorers)

Slitter and scorer order changed drive:Taiwan Delta AC servo drive(26sets for 6 blades 10 scorers)

Machine motor:Taiwan TECO frequency motor.

MCGS color touch screen.

Taiwan Delta PLC.

Position test sensor:Korea Autonics

Low voltage apparatus:France Schneider air switch,switch button, AC contactor,etc.



Q. Your company is a manufacturer or a foreign trade company?
Yes. We are manufacturer. HengYi carton machinery co., Itd is specialized in the production of packaging(carton)machine
Machineryand equipment manufacturers, main product packaging(carton,carton)mechanicalequipment,printing Machine,slottingmachine,
die cutting machine, gluing machine, paper dividing machine, box pasting machine,corner cutting machine.
Q. Which payment can offer?
We can accept the payment by T/T, L/C, Western Union, Paypal,Private Account, Cash,and others.
Q. How can you guarantee the products's quality?
We adhere to strict quality control procedures that begin with product design and carry through to the end of the production
process. In the whole process, to after many test, and finally after shipment inspection, the products leave the factory.
Q. Why choose a carton packaging machine?
Safe, environmentally friendly, resource recycling, the important is on boxin carton packaging to ensure quality and
cost-effective.
Q. How is your after sales service?
We can offer good technical support and good warranty for you after sales as professional manufacturer.
