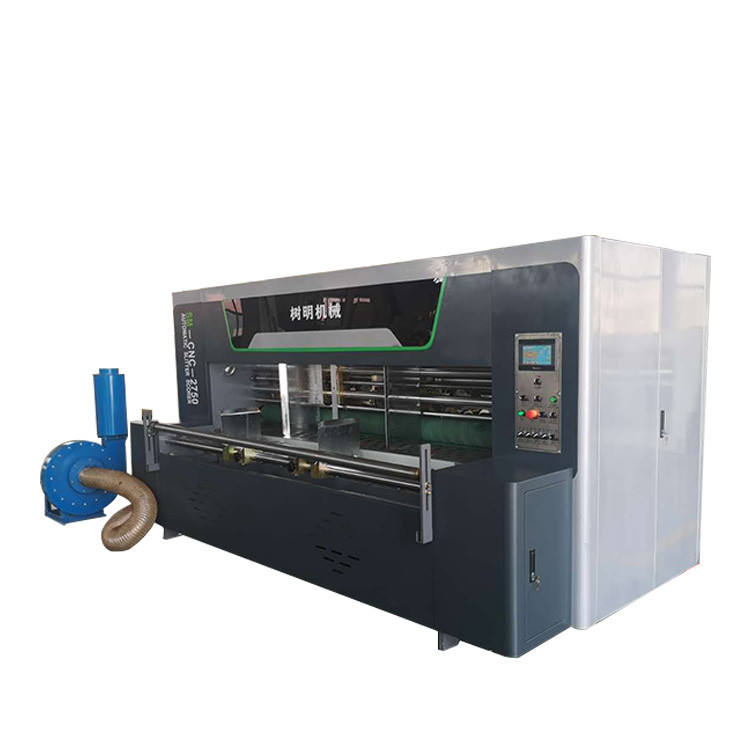

Ce Corrugated Cardboard 180m/Min Slitter Scorer

Ce Corrugated Cardboard 180m/Min Slitter Scorer

  • Ce Corrugated Cardboard 180m/Min Slitter Scorer
  • Ce Corrugated Cardboard 180m/Min Slitter Scorer
  • Ce Corrugated Cardboard 180m/Min Slitter Scorer
  • Ce Corrugated Cardboard 180m/Min Slitter Scorer
Ce Corrugated Cardboard 180m/Min Slitter Scorer
Product Details:
Place of Origin: China
Brand Name: Soome
Certification: CE
Model Number: SM-BD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact
Packaging Details: plastic film
Delivery Time: 50 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 set per year
Contact Now
Detailed Product Description
Voltage: 380V Automatic Grade: Automatic
Condition: New Driven Type: Electric
Packaging Type: Film Packaging Material: Plastic
Dimension(l*w*h): 3000*1600*1900 Type: Packaging Line
High Light:

Cardboard Slitter Scorer

,

Corrugated Slitter Scorer

,

180m/min slitter scorer corrugated



CE Slitter Scorer Corrugated Cardboard Knife Cutter And Line Making Machine





Model SMBD-ANC-2750 SMBD-ANC-3250
No.s of slitting scoring 4/6 5/8 6/10
Max.production speed 180m/min
Max.feeding width The Max.slitting between the two blades:2250mm The Max.slitting between the two blades:2750mm
Max.slitting width 2600mm 3100mm
Min.slitting width 200mm 200mm
Min.feeding length 200mm



200mm

Min.scoring distance

40*135mm



40*135mm
Gap adjustment Manual Manual
Main motor power 10kw 12kw
Dimensions L*W*H 1570*3450*1500mm 1570*3950*1500mm
Weigh 2780kg 2980kg



Type:
OTHER, Other
Warranty:
1 YEAR
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Field maintenance and repair service
Local Service Location:
Egypt, pakistan, INDIA
Showroom Location:
Egypt, pakistan, INDIA
Video outgoing-inspection:
Provided
Machinery Test Report:
not available
Marketing Type:
Ordinary Product
Warranty of core components:
1 YEAR
Core Components:
MOTOR
Condition:
New
Application:
Machinery & Hardware, Device
Packaging Type:
Film, case
Packaging Material:
plastic, wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220v/380v/440v
Power:
7kw/7.5kw
Place of Origin:
Hebei, China
Brand Name:
Soome
Weight:
1.5T
Dimension(L*W*H):
3190*940*1820
Certification:
CE
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Key Selling Points:
Remote Monitoring
Color:
customized requriments
blade:
4-7
scorer:
6-12
voltage:
customized requriments
payment:
30% deposit and balance befroe shipment
keyword:
thin blades creasing

Ce Corrugated Cardboard 180m/Min Slitter Scorer 0

Ce Corrugated Cardboard 180m/Min Slitter Scorer 1

Ce Corrugated Cardboard 180m/Min Slitter Scorer 2

Ce Corrugated Cardboard 180m/Min Slitter Scorer 3





Function and features:





FEEDING UNIT:



The baffle size for screw adjustment,easy to operate.



Can set the qty.of paperboard,automatic stop the feeding after finishing.



Automatic feeding paper, Improve the safe operation,decreased the working load.



Cutting indentation for long cardboard.





SLITTER SCORER UNIT:



Electric adjusted the space of slitter blade,auto pneumatic locking, Double guide optical axis,Double locking cylinder, stable operation, Convenient adjustment.The knife rest built-in polyurethane rubber, dust prevention,reduce the failure rate.



Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr



Adopt eight roll , two roll-rang feeding, then scoring ,easy to adjust.It could be do slitting only without scoring, avoid error when scoring.



Adopt automatic and manual two kinds grinding type.



Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.



HRB bearing,long time running.





Mechanical parts



Taiwan HIWIN linear guide way.



Order changing used HIWIN precision ball screw.

Bearings:Germany FAG,China HRB famous brand.

Synchronous belt:Japan SUBAK.

Adopt raw material tungsten alloy thin blade
