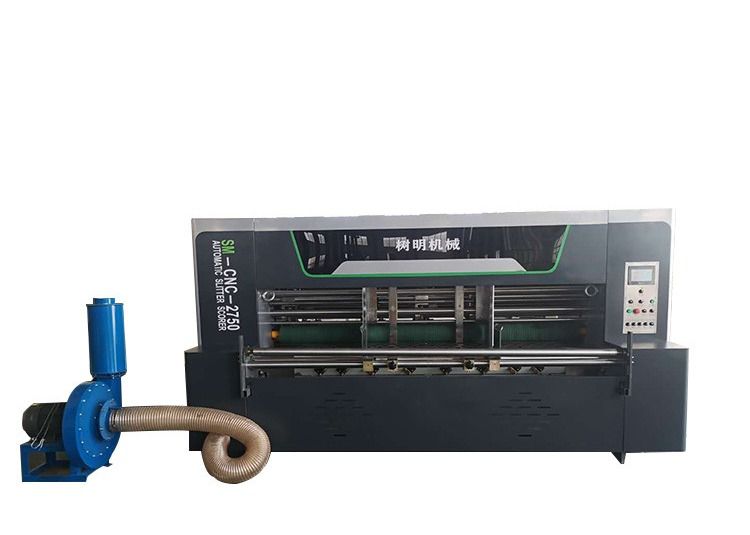

10kw Rotary Thin Blade Slitter Scorer Machine

Place of Origin China
Brand Name Soome
Certification CE
Model Number SM-BD
Minimum Order Quantity 1 set
Price Contact
Packaging Details plastic film
Delivery Time 50 days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 set per year
Product Details
Voltage 380V Automatic Grade Automatic
Condition New Driven Type Electric
Packaging Type Film Packaging Material Plastic
Dimension(l*w*h) 3000*1600*1900 Type Packaging Line
High Light

rotary thin blade slitter scorer machine


10kw Thin Blade Slitter Scorer Machine


rotary slitter scorer

Leave a Message
Product Description

Computerized Nc Corrugated Then Knife Cutting Rotary Slitter Scorer Machine To USA

No.s of slitting scoring4/6 5/8 6/10
Max.production speed180m/min
Max.feeding widthThe Max.slitting between the two blades:2250mmThe Max.slitting between the two blades:2750mm
Max.slitting width2600mm3100mm
Min.slitting width200mm200mm
Min.feeding length200mm


Min.scoring distance


Gap adjustmentManualManual
Main motor power10kw12kw
Dimensions L*W*H1570*3450*1500mm1570*3950*1500mm


10kw	 Rotary Thin Blade Slitter Scorer Machine 0

10kw	 Rotary Thin Blade Slitter Scorer Machine 1

10kw	 Rotary Thin Blade Slitter Scorer Machine 2

10kw	 Rotary Thin Blade Slitter Scorer Machine 3


Function and features:
The baffle size for screw adjustment,easy to operate.
Can set the qty.of paperboard,automatic stop the feeding after finishing.
Automatic feeding paper, Improve the safe operation,decreased the working load.
Cutting indentation for long cardboard.
Electric adjusted the space of slitter blade,auto pneumatic locking,Double guide optical axis,Double locking cylinder,stable operation,Convenient adjustment.The knife rest built-in polyurethane rubber, dust prevention,reduce the failure rate.
Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr
Adopt eight roll , two roll-rang feeding, then scoring ,easy to adjust.It could be do slitting only without scoring, avoid error when scoring.
Adopt automatic and manual two kinds grinding type.
Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
HRB bearing,long time running.
Mechanical parts
Taiwan HIWIN linear guide way.
Order changing used HIWIN precision ball screw.
Bearings:Germany FAG,China HRB famous brand.
Synchronous belt:Japan SUBAK.
Adopt raw material tungsten alloy thin blade

Touch screenWEINVIEWTaiwan
Circuit breakerSHILINTaiwan
Electric relaySchneiderFrance
Main motorYongshunGuangzhou
Proximity switchOMRONJapan
Air cylinderTianaoChina
Frequency transformerMitsubishiJapan
Blade260×158 8 holeChengdu Shengong
Electromagnetic valveTianaoChina


























Control system


Slitter and scorer order changed motor:Taiwan Delta AC servo motor(26sets for 6 blades 10 scorers)

Slitter and scorer order changed drive:Taiwan Delta AC servo drive(26sets for 6 blades 10 scorers)

Machine motor:Taiwan TECO frequency motor.

MCGS color touch screen.

Taiwan Delta PLC.

Position test sensor:Korea Autonics

Low voltage apparatus:France Schneider air switch,switch button, AC contactor,etc.
