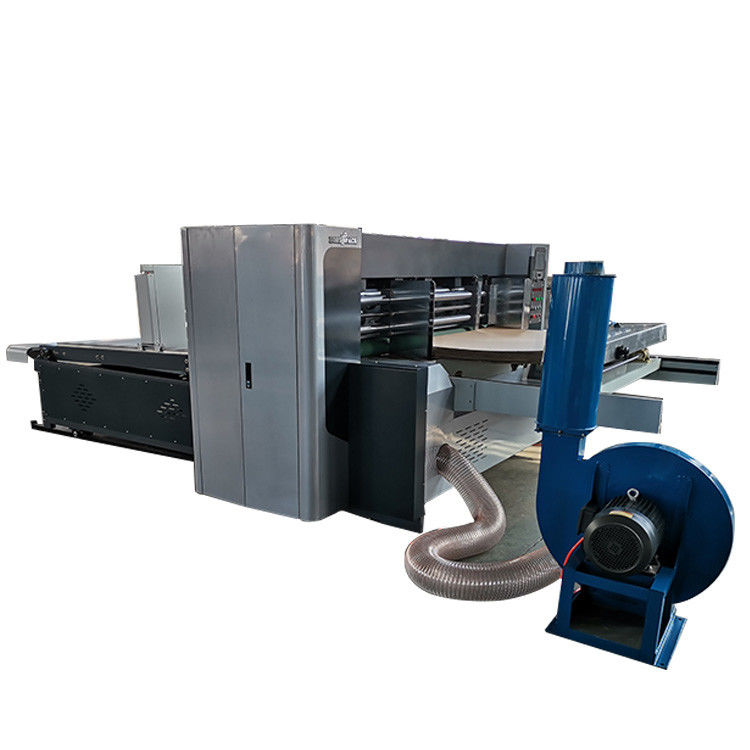

Paper Board Slitter Scorer Lead Edge Corrugated Machine

Paper Board Slitter Scorer Lead Edge Corrugated Machine

  • Paper Board Slitter Scorer Lead Edge Corrugated Machine
Paper Board Slitter Scorer Lead Edge Corrugated Machine
Product Details:
Place of Origin: China
Brand Name: Soome
Certification: CE
Model Number: SM-BD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact
Packaging Details: plastic film
Delivery Time: 50 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 set per year
Contact Now
Detailed Product Description
Voltage: 380V Automatic Grade: Automatic
Condition: New Driven Type: Electric
Packaging Type: Film Packaging Material: Plastic
Dimension(l*w*h): 3000*1600*1900 Type: Packaging Line
High Light:

paper board slitter scorer


paper board slitter scorer machine


slitter scorer corrugated for paper board



Exclusive Price Discounts Paper Board Slitter Scorer Lead Edge Corrugated Machine



Model SMBD-ANC-2750 SMBD-ANC-3250
No.s of slitting scoring 4/6 5/8 6/10
Max.production speed 180m/min
Max.feeding width The Max.slitting between the two blades:2250mm The Max.slitting between the two blades:2750mm
Max.slitting width 2600mm 3100mm
Min.slitting width 200mm 200mm
Min.feeding length 200mm



Min.scoring distance



Gap adjustment Manual Manual
Main motor power 10kw 12kw
Dimensions L*W*H 1570*3450*1500mm 1570*3950*1500mm
Weigh 2780kg 2980kg



Paper Board Slitter Scorer Lead Edge Corrugated Machine 0

Paper Board Slitter Scorer Lead Edge Corrugated Machine 1

Function and features:


Automatic suction feeding,saving manpower and labor intensity,preventing cardboard from running askew,and ensuring the safety of staff operation.Axis-adding thin blade slitter scorer machine,because of the use of front and rear double rubber axis design,greatly reduces the length requirements of cardboard,not only meets the cutting size of conventional cardboard,but also can be used for cutting small size cardboard.Electrically adjust the working distance of the cutter,automatically lock,improve work efficiency.


1. Manual or automatic paper feeding table is available

2. Automatic independent adjustment of prepressing wheel, paper dividing knife block and line pressing wheel

3. Manual/automatic knife sharpening

4. Automatic adjustment of cardboard height and pressure (optional)

5. Slight adjustment

6. Automatic counting

7. Accuracy of paper sorting and line pressing is ±0.5mm

8. Human-machine interface -- CONTROLLED by PLC, controlled by single independent stepping motor for paper cutting blade row, automatic single speed of 1-20 seconds, error accuracy ±0.5 mm.

9. The operation is very humanized, no technical content, ordinary workers can operate.

10. Cutting part: high quality tungsten steel alloy blade, long service life, no fracturing, no burrs.

11. Both sides of the thin blade adopt rubber wheel to press the cardboard to cut, to overcome the phenomenon of non-pressure line, separate board, deviation, straightness difference.

12. This machine can store 999 group orders


Mechanical parts


Taiwan HIWIN linear guide way.

Order changing used HIWIN precision ball screw.

Bearings:Germany FAG,China HRB famous brand.

Synchronous belt:Japan SUBAK.

Adopt raw material tungsten alloy thin blade


Name Brand From
Touch screen WEINVIEW Taiwan
PLC Panasonnic Japan
Circuit breaker SHILIN Taiwan
Electric relay Schneider France
Push-button ABB Switzerland
Main motor Yongshun Guangzhou
Driving motor YANKONG CHINA
Decelerator YONGKUN Taiwan
Photosensor OMRON Japan
Proximity switch OMRON Japan
Air cylinder Tianao China
Frequency transformer Mitsubishi Japan
Blade 260×158 8 hole Chengdu Shengong
Electromagnetic valve Tianao China

























Control system


Slitter and scorer order changed motor:Taiwan Delta AC servo motor(26sets for 6 blades 10 scorers)

Slitter and scorer order changed drive:Taiwan Delta AC servo drive(26sets for 6 blades 10 scorers)

Machine motor:Taiwan TECO frequency motor.

MCGS color touch screen.

Taiwan Delta PLC.

Position test sensor:Korea Autonics

Low voltage apparatus:France Schneider air switch,switch button, AC contactor,etc.


Q. Your company is a manufacturer or a foreign trade company?
Yes. We are manufacturer. HengYi carton machinery co., Itd is specialized in the production of packaging(carton)machine
Machineryand equipment manufacturers, main product packaging(carton,carton)mechanicalequipment,printing Machine,slottingmachine,
die cutting machine, gluing machine, paper dividing machine, box pasting machine,corner cutting machine.
Q. Which payment can offer?
We can accept the payment by T/T, L/C, Western Union, Paypal,Private Account, Cash,and others.
Q. How can you guarantee the products's quality?
We adhere to strict quality control procedures that begin with product design and carry through to the end of the production
process. In the whole process, to after many test, and finally after shipment inspection, the products leave the factory.
Q. Why choose a carton packaging machine?
Safe, environmentally friendly, resource recycling, the important is on boxin carton packaging to ensure quality and
Q. How is your after sales service?
We can offer good technical support and good warranty for you after sales as professional manufacturer.
