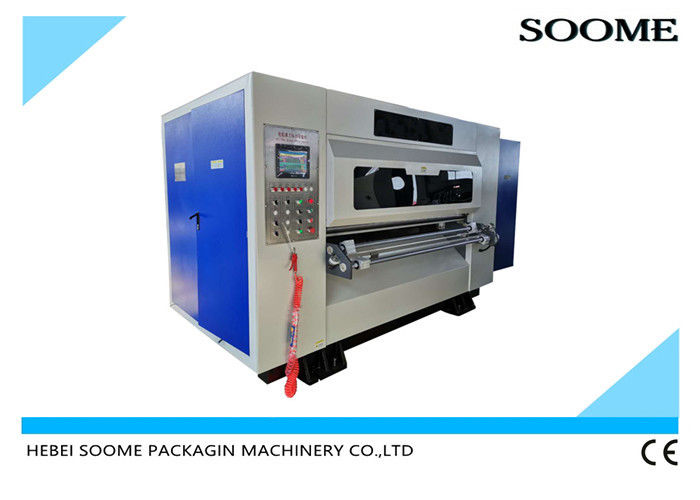

Electric Blade Slitter Scorer For Corrugated Paperboard

Basic Information
Place of Origin: Made in China
Brand Name: SOOME
Certification: CE
Model Number: SMBD-QDD-3000
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case or film
Delivery Time: 14 days after deposit
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 30 sets per month
Detail Information
Product Name: Full-Electric Adjustment Slitter Scorer Condition: New
Driven Type: Electric Type: Thin Blade Slitter Scorer
Function: For Corrugated Paper Slitting Color: Customer's Request
Keywords: Thin Blade Slitter Scorer Machine Voltage: 220V/380V/440V
Place Of Origin: Hebei, China
High Light:

Blade Slitter Scorer

,

Electric Slitter Scorer

,

slitter scorer corrugated


Product Description

Automatic Slitter Scorer Machine For Corrugated Paperboard With Electric Blades

1. Summarize



Automatic slitter scorer machine for corrugated paperboard with electric blades,adopt two shafts in front and back of the slitter, can minimize the length of paperboard machining. Not only meet the conventional cutting board size, can be also used for cutting small paperboard pallets and other specifications. Electric-controlling adjusts thin blades and scorer movement is adjusted by manual-controlling.



2. Features and Functions



1.The work height can be electric adjusted and the orders can be changed quickly when two machines work together.
2.Standard YCT (electromagnetic adjustable speed motor) to adjust the speed (Option: dual frequency converter ).
3.Blade & scorer both move by manual (Option: blade & scorer both move by electric).
4.Slitting part: adopt high quality tungsten steel alloy thin blade, sharp and long service life, slice more tidy, non-pressing and non-burr.
5.Grinding part: adopt automatic and manual two kinds pneumatic grinding type. It can be grinding when working, improved the work efficiency.
6.Scoring part: adopt 5 points scoring, scoring distance adjusted synchronously, blazonry and easy to bend the carton sheet.
7.Adopt China famous brand or imported electric elements, reliable performance.
8.Electric left-right rectification function to cooperate the position of paper sheet.



3. Technical Parameters



TYPE



SMBD-QDD

-1600

SMBD-QDD

-1800

SMBD-QDD

-2000

SMBD-QDD

-2500

SMBD-QDD

-2700

SMBD-QDD

-3000

Effective

width

1400mm 1600mm 1800mm 2300mm 2500mm 2800mm
Speed 130m/min 130m/min 120m/min 100m/min 100m/min 80m/min
Total power 4kw 4kw 4kw 5kw 5kw 7.5kw

Min.

Slitter-

spacing

130mm 130mm 130mm 130mm 130mm 130mm

Min.

Score-

spacing

130mm 130mm 130mm 130mm 130mm 130mm

Min.

Paper

length

300mm 300mm 300mm 300mm 300mm 300mm

Dimensions

L*W*H

(mm)

2250*770

*1350

2450*770

*1350

2650*770

*1350

3150*770

*1350

3350*770

*1350

3650*770

*1350









































Electric Blade Slitter Scorer For Corrugated Paperboard 0
