Place of Origin: | Made in China |
Brand Name: | SOOME |
Certification: | CE |
Model Number: | SMHQ-ZX-1800 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | wooden case or film. |
Delivery Time: | 14 Days after deposit |
Payment Terms: | L/C, T/T, MoneyGram |
Supply Ability: | 30 sets per month |

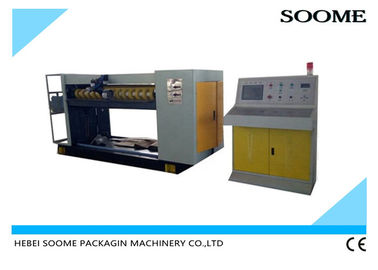

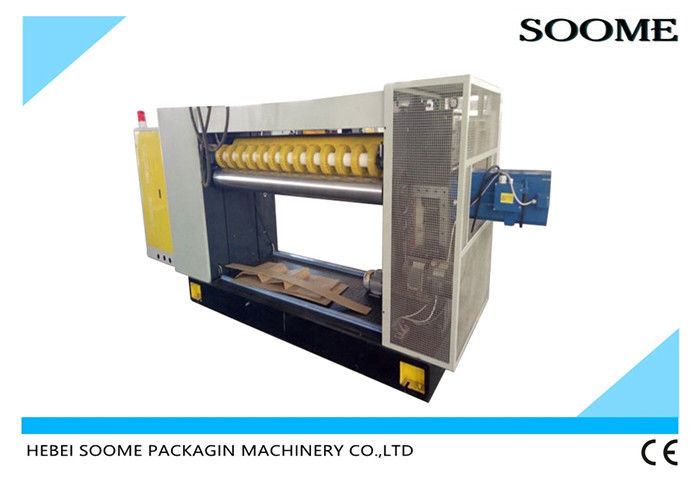

Product Name: | Computerized Spiral Blade Cutting Machine | Usage: | Paperboard Cutting |
---|---|---|---|
Type: | Cutting Machine | Condition: | New |
Place Of Origin: | Hebei, China | Brand Name: | Brand Name |
Automatic Grade: | Semi-Automatic | Voltage: | 220V/380V/440V |
Dimensions(L*W*H): | 3500x1300x1560mm | Weight: | 2.5t |
Highlight: | Computerized corrugated automatic plant,Computerised corrugated automatic plant |
1. Summarize
Corrugated carton box making computerized cutting machine with spiral blade adopts servo-controlling computer adjusting the working of it. The feeding paperboard will be pressed and driven by rubber rolls. Then spiral blades can be cut off the paperboard. There is also rubber rolls on the back of spiral blades pressing and driving finished paperboard.
2. Features and Characteristics
1. With single or double layers structure for choice.
2. Colorful touch screen display all kinds of production information which can be checked revised ,added or canceled.
3. Special structural design, particularly well mechanical strength wall and base.
4. Special high-speed helical cutter for cutting cardboard smooth without burr.
5. Blade adjustment and changing design, fast and convenient.
6. Drive box adopts oil pump type high precision gear drive with low noise, steady.
7. AC servo motor driven cutting high efficiency, high precision.
3.Technical Parameters
Type | SMHQ-ZX-1600 | SMHQ-ZX-1800 |
Effective working width(mm) | 1600 | 1800 |
Wallboard width(mm) | 1800 | 2000 |
Design speed(m/min) | 130 | 130 |
Economic speed(m/min) | 90-120 | 90-120 |
Machine size(mm) | 3100*1300*1500 | 3300*1300*1500 |
Operation cabinet size(mm) | 1000*600*1400 | 1000*600*1400 |
