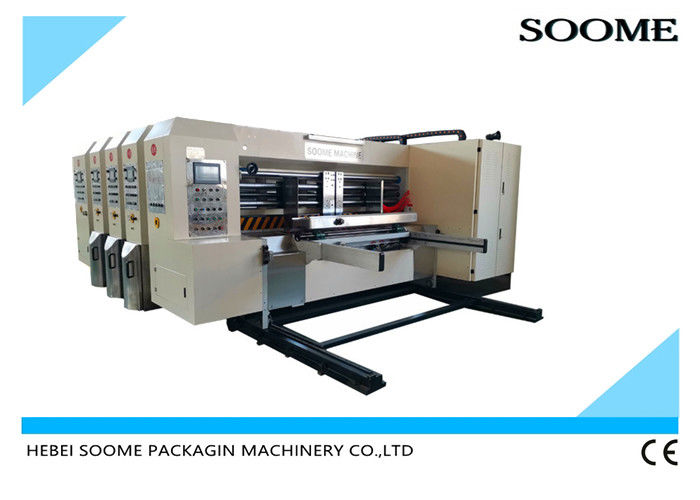

Rotary Die Cutter Stacker 12kw Automatic Corrugation Machine

  • Rotary Die Cutter Stacker 12kw Automatic Corrugation Machine
  • Rotary Die Cutter Stacker 12kw Automatic Corrugation Machine
Place of Origin Heibei Province China
Brand Name SOOME
Certification CE Certification
Model Number SMYS_QY_2600
Minimum Order Quantity 1set
Price negotiation
Packaging Details wooden case with plastic film
Delivery Time 25days after deopist
Payment Terms Western Union, T/T, L/C
Supply Ability 100per/mounth
Product Details
Voltage 220V/380V/240V Design Speed 60pcs/min
Warranty 1 Year Power 10/12kw
Application Machinery & Hardware,Medical,Commodity,Chemical Driven Type Electric And Pneumatic
Automatic Grade Automatic Packaging Type Cartons,Case,Film
Weight 15T Usage Carton Box Printing Slotting
High Light

12kw Rotary Die Cutter Stacker

,

12kw Die Cutter Stacker
Leave a Message
Product Description

Automatic Corrugated Box High Speed Printer Slotter Rotary Die Cutter Stacker

Printing roller



1. Outer diameter: Ø408.4(incl. edition),seamless steel pipe, with surface grinding, hard chrome plating.

2. Printing roller made of high quality steel, with surface grinding and hard chrome plating.

3. Dynamic balancing correction, stable operation.

4. Ratchet wheel fixed rolled shaft.

5. Install & uninstall printing edition controlled by electric.



Printing pressing roller



1. Outer diameter: Ø176mm,seamless steel pipe, with surface grinding, hard chrome plating.

2. Dynamic balancing correction, stable operation.

3. Automatic locking on adjustment of pressing roller space, adjust scope is 0-11mm.

4. Automatic return to zero device, decrease the paper waste.



Anilox roller : Ø216mm(as per customer required



1. With surface grinding on the steel pipe,pressing checkered, chrome plating.

2. Dynamic balancing correction, stable operation.

3. Cooperated with pneumatic lifting device.

4. Matched with surpass clutch, distribute and clean the ink more easily.

5. Optional: Ceramic anilox roller equipped with ink scraper, make the printing effect better.



Rubber roller



1. Outer diameter: Ø208mm.

2. Wrapped with wear-resisting rubber on the steel pipe surface.

3. Rubber roller with special grinding to reach good effect of ink transmission.

Adopt automatic locking for the space adjustment between rubber rollers.

Single shaft with dual cutter. Electric adjust the carton height with high precision.

1. Creaser and pre-creaser Ø180mm,above crease wrapped with optimal rubber will not damage the paper.

2. Creaser, pre-creaser, diecutting cutter holder move together by NC controller.

3. Spacing adjustment of creaser and pre-creaser adopt self-locking mechanism, scope is 0-11mm.



Rubber mat roller



1. Equipped with rubber mat holder Ø404*5pcs.

2. Axial direction auto circulation translation.

3. Equipped with linear compensation device, with average diecutting of rubber mat.

4. With pneumatic lifting device, protect the rubber mat.

5. International famous Maxdura anvil blanket.



Techincal index:



SMYS-QY-2600 Unit SMYS-QY-2600
Plate roller diameter mm 408
Plate roller length mm 2500
Inner width of machine mm 2600
Speed pcs/min 120
Max printing area mm 1200×2200
Max feeding paper size mm 1200×2400
Feeding paper by skip mm 1400x2400
Min feeding paper size mm 350×720
Board thickness mm 2-11
Print plate thickness mm 7.2
Print roller axle circle-oriented regulating degree 360°revolving
Topping precision mm 360°revolving

Rotary Die Cutter Stacker 12kw Automatic Corrugation Machine 0

Rotary Die Cutter Stacker 12kw Automatic Corrugation Machine 1
