| Place of Origin: | Hebei Province China |
| Brand Name: | SOOME |
| Certification: | CE Certification |
| Model Number: | ZXJ-QⅠ2600/2800/3000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | ZXJ-Q I 3000 Automatic Carton Box Folder Gluer Machine With Strapping Machine packing by wooden case with plastic film |
| Delivery Time: | 24 after depoist |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100per/mounth |
| Dimension(L*W*H):: | 12000*3500*2000mm | Voltage:: | 380/440V |
|---|---|---|---|
| Weight:: | 7tons, 5.5-7.5tons | Min Cardboard:: | 170*450mm |
| Dimension:: | 12000*3400*1600mm | Color:: | Client's Request |
| Application Board Type: | Ckness: 3layer Or 5layer | Power Required:: | 10-12KW |
| Max Cardboard:: | 1200*2800mm | Warranty:: | 1 Year |
| High Light: | flexo folder gluer machine,auto folder gluer machine |
||

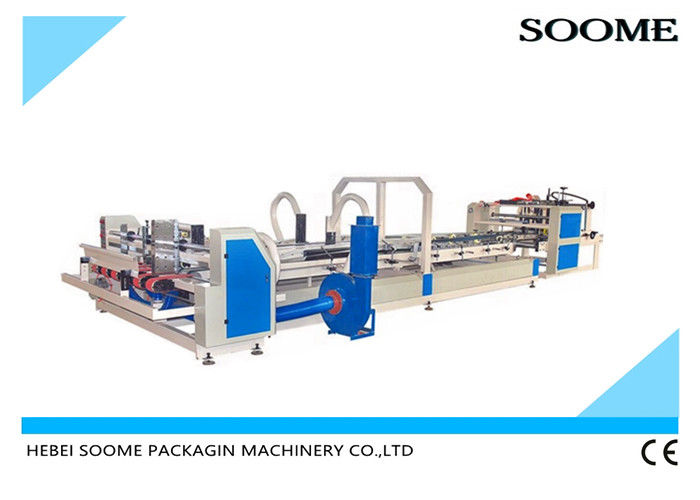

The machine includes feeding part, gluing and stacking part. Digital control, PLC adjust width (optional,conventional model without), double frequency motor working synchronous, control easy,fast,accurately, feed ,glue folder, count and stack automatically, high speed,save laborcost.
1. Vaccume suction feeding
2. Gluing controlled, cleaning easy
3. Stacking and counting are simple and reliable
Exclusive price discounts automatic folding carton box gluing machine is consisted of three sections: vacuum feeding section, gluing & folding section, countering & stacking section. Frequency conversion motor can adjust the speed. PLC & Touch Screen control system is easy for operation and running stable. Average speed is 150sheets/min. Energy Conservation. High Speed. Saving Labor Cost.
Feeding unit
Adopted leather belt delivery feeding with airdraft.
All convery belts were tooth nailed for accuracy. It equipped re-pressing function so that even more accurate when folding.
Guling and Folding unit:
Simple structure and high reliability, glue quantity adjustable, cleaning easily
Stainless steel glue wheel adopted, long life and saving glue cost
Imported quality rubber belt adopted, automatic folding
With paperboard rectify device and creasing rectify device
Counter and Stacker unit:
Automatic re-adjusting if happen paper skew. Lowen defective rate.
Improving folding accuracy if happen paper skew through differential adjusting function. Scissors shapetail could not happen.
Automatic accounting, shape adjusting then stacking. All carton can be piled up according to a cartain quanlity.
Can match with automatic strapping machine.
Main Technology Parameters:
| Model | ZXJ-QⅠ2600 | ZXJ-QⅠ2800 | ZXJ-QⅠ3000 |
| Max cardboard size | 1200×2400 | 1200×2600 | 1200×2800 |
| Min cardboard size | 170*450 | 170*450 | 170*450 |
| Dimension | L12500×W3000×H1600 | L12500*W3200*H1600 | L12500*W3400*H1600 |
| Motor power | 10kw | 12kw | 12kw |
| Machine weight | 5500kg | 6500kg | 7500kg |
| Application board thickness | 3layer or 5layer | ||
