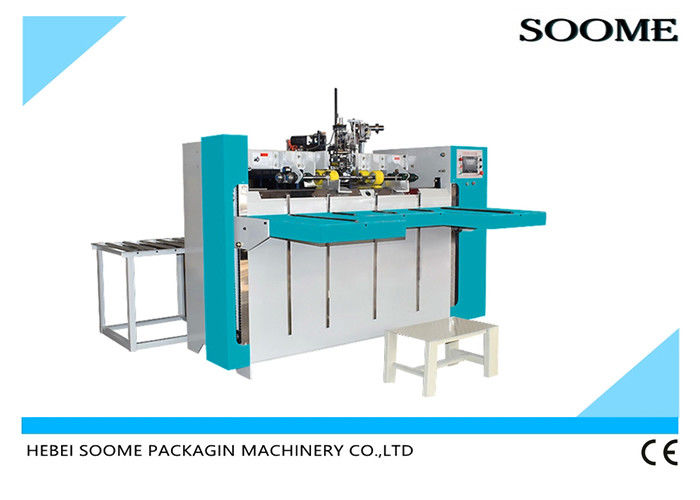

Corrugated Paperboard Stitching 12.5kw Automatic Corrugation Machine

Place of Origin Heibei Province China
Brand Name SOOME
Certification CE Certification
Model Number SMDX-DP
Minimum Order Quantity 1 set
Price negotiation
Packaging Details Corrugated Paperboard Stitching Machne Stitching Carton Box Forming Device packing by wooden case and filling with plastic film
Delivery Time 24 after depoist
Payment Terms L/C, T/T, Western Union
Supply Ability 100 per/mounth
Product Details
Application Machinery & Hardware Condition New
Packaging Type Cartons,Case,Film Power 12.5kw
Weight 2000kg Precison ±0.1mm
Driven Type Electric Speed 450 Staples
Paperboard Type 3/5/7 Ply Paperboard Power 6HP
High Light

6HP automatic carton box making machine

,

0.1mm Automatic Corrugation Machine

Leave a Message
Product Description

Corrugated Paperboard Stitching Machne Stitching Carton Box Forming Device

Machine features:



The main function and components Can nail a single nail, two nail,strengthen nail one time. One minute quick change size. Easy operation without experience. Paper feeder can count automatically. Tied into buldles sent. Omron PLC control system. Chint contacts. Taiwan electromagnetic clutch,All switch control box using domestic brands.From Stapling to the semi-finished products to finished goods, only two people is OK. Simple operation and reduced salary. Automatic accounting after the segment, the number of sheets can do a good job of setting the number of products(1-99) sub-stack convey is not sent to client. It can be covered nails whether with covering or without covering. The use of touch-screen control, nail away from the touch screen can be set directly facilitate the operation. Yaskswa servo control, nail away from the longer and more stable, more accurate. Bearing all of Japan KOKO,NACH l brand. Stud mining the entire set of all production of tool steel imported from Japan, computer gongs precision machining. Bottom die and the blade are made of tungsten steel imported from Japan(wear) . Advantages: Nails from:30-120 mm(can be adjusted.) No cover box/case can be covered nails. The use of touch-screen control, nail away from the touch screen can be set directly facilitate the operation. Yaskswa servo control, nail away from the longer and more stable, more accurate.



Technical index:



Power 6HP
Length 4500mm
Width 2100mm
Weight 2000kg
Speed 450staples
Stitching Pitch 30-70mm
Number of Stitching 1-99Stitches
Max(L+W)X2 2460mm
Min(L+W)x2 606mm
Max H+CX2 1515mm
Min H+CX2 300mm
Hignt of feeder 900mm
