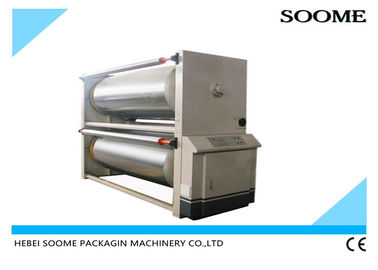

Corrugated Paperboard Production Line 360° Range Preheater Machine

Corrugated Paperboard Production Line 360° Range Preheater Machine

  • Corrugated Paperboard Production Line 360° Range Preheater Machine
  • Corrugated Paperboard Production Line 360° Range Preheater Machine
Corrugated Paperboard Production Line 360° Range Preheater Machine
Product Details:
Place of Origin: Hebei Province China
Brand Name: SOOME
Certification: CE Certification
Model Number: PH-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: PH-100 Preheater Machine For Corrugated Paperboard Production Line In 360° Range packing by wooden case and filling with plastic film
Delivery Time: 24 after depoist
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 per/mounth
Contact Now
Detailed Product Description
Condition: New Usage: Making Carton
Warranty: 1 Year Voltage: 380V 50HZ
Application: Commodity,Chemical Packaging Type: Cartons,Case,Film
Automatic Grade:: Semi-automatic Driven Type:: Steam
Highlight:

Making Carton preheater machine

,

Carton Making preheater machine

PH-100 Preheater Machine For Corrugated Paperboard Production Line In 360° Range

Machine description:



This machine is used for heating liner (pre-heating for raw paper), and dry to control temperature and humidity

Machine function:

Electric to adjust the wrap angle, preheating area can be in 360° range butterfly seal structure on two sides,saving the steam and improving heating efficiency Soft siphon style structure,making the drainage more thoroughly All the surfaces of rollers have been accurate ground and plating chromed



Technical index:



Working Width 2200mm
Diameter of the preheating roller
 Φ900mm
Diameter of the wrap angle
 Φ110mm
Steam temperature
 150-200℃
Steam pressure
 0.8-1.3Mpa



Components brand:



Components Name Brand
Steam Joint
Fujian
Heating Cylinder
Hebei
Bearing
Haerbin
Reducer
Shandong
Connector
Schneider
Steam Trap China

Corrugated Paperboard Production Line 360° Range Preheater Machine 0





















































































Corrugated Paperboard Production Line 360° Range Preheater Machine 1
