Control Paper Mill Roller Up Down 2200mm Hydraulic Mill Roll Stand
|Place of Origin||Hebei Province China|
|Minimum Order Quantity||1 set|
|Packaging Details||RSH-V5 Hydraulic Mill Roll Stand Control For Paper Mill Roller Up-Down packing by wooden case and filling with plastic film|
|Delivery Time||24 after depoist|
|Payment Terms||L/C, T/T, Western Union|
|Supply Ability||100 per/mounth|
|Voltage||380 V 50 HZ||Weight||4.5t|
|Automatic Grade||Automatic||Packaging Type||Cartons,Case,Film|
900mm Hydraulic Mill Roll Stand,
1500mm Hydraulic Mill Roll Stand

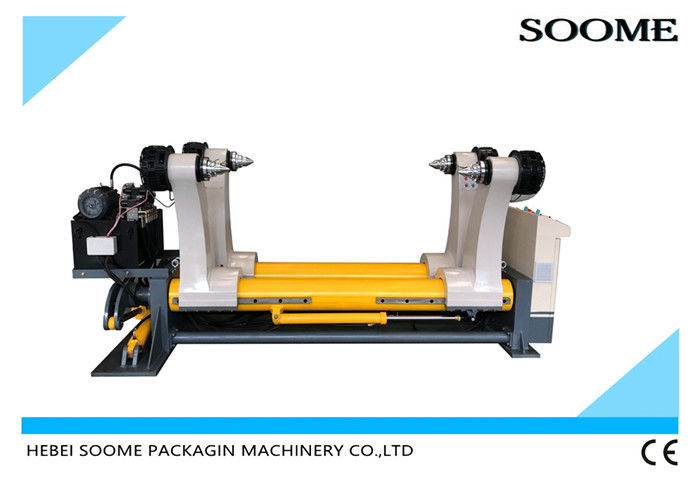

RSH-V5 Hydraulic Mill Roll Stand Control For Paper Mill Roller Up-Down
This machine is used for supporting the paper roll, supply the paper to the production line.
Each arm setup four directions button, it is easy to operate
It can be loading two paper rolls at the same time, without stopping the machine for changing paper roll
The whole machine use 6 cylinders fully hydraulic controlled, hydraulic control arm lift and down, clamping and open, left and right moving
Tension control: multipoint pneumatic brakes, <>brakes good performance, loses heat fast
The chuck adopt inner expansion type or teeth type, reduce the destruction of the paper core. saving paper
1. Corrugated machinery.
2. Hydraulic mill roll stand control for paper mill roller up-down,
3. Clamp-open and centering.
1. Hydraulic mill roll stand for corrugated (corrugating machine)paperboard production line,The sturcture is double rotary shafts with four arms;Support two paper mill rolls on both arms at the same time.
2. Hydraulic control for paper mill roller up-down,clamp-open and centering. Or motorized clamp-open and centering.
3. Web tension is controlled by pneumatic brake or manual brake ; Springiness chucks are optional.
There are many mechanical types of products in our company (three or five or seven layer corrugated production line and so on). With large quantities of models and complete specifications, our products can meet every demand of different clients.
Machine Technical Parameter:
|Max. Working Width||2200mm|
|Min. Working Width||900mm|
|Max. Paper Mill Dia.||1500mm|
|Main Shaft Dia.||Φ242mm|
|Max. Working Pneumatic Pressure||0.6-0.9Mpa|
|Max. Supporting Weight (One side)||3T|
|Pneumatic Source Pressure(Mpa)||0.4---0.8Mpa|
Main Components Brand:
|Chuck||China 3/4 Inch|
