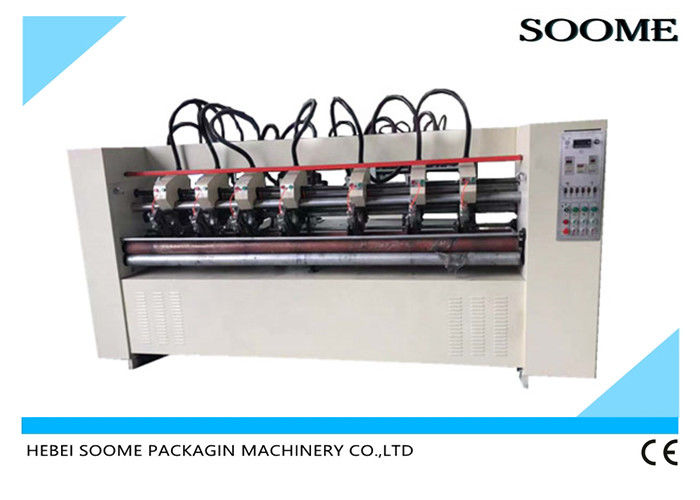

Automatic Slitter Scorer Machine For Corrugated Paperboard With Electric Blades

Place of Origin Made in China
Brand Name SOOME
Certification CE
Model Number SMBD-DD-3000
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details wooden case or film
Delivery Time 14 days after deposit
Payment Terms L/C, T/T, MoneyGram
Supply Ability 30 sets per month
Product Details
Product Name Electric Thin Blade Manual Scorer Machine Condition New
Driven Type Electric Type Thin Blade Slitter Scorer
Function For Corrugated Paper Slitting Color Customer's Request
Keywords Thin Blade Slitter Scorer Machine Voltage 220V/380V/440V
Place Of Origin Hebei, China
High Light

corrugated slitter machine

,

slitter scorer machine

Leave a Message
Product Description

Automatic Slitter Scorer Machine For Corrugated Paperboard With Electric Blades

1. Summarize



Automatic slitter scorer machine for corrugated paperboard with electric blades,adopt two shafts in front and back of the slitter, can minimize the length of paperboard machining. Not only meet the conventional cutting board size, can be also used for cutting small paperboard pallets and other specifications. Electric-controlling adjusts thin blades and scorer movement is adjusted by manual-controlling.



2. Features and Functions



1. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
2. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 300mm.
3. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
4. Grinding part: adopt manual and pneumatic two types of blade grinding , it could be grinding when working, improve work efficiency.
5. Blade and creaser both move by electric, and automatic locking.
6. The scorer part adopt above lower button for rectification, can make the scorers align center. Above row scorers can pneumatic lift up and down.



3. Technical Parameters



TYPE



SMBD-QDD

-1600

SMBD-QDD

-1800

SMBD-QDD

-2000

SMBD-QDD

-2500

SMBD-QDD

-2700

SMBD-QDD

-3000

Effective

width

1400mm 1600mm 1800mm 2300mm 2500mm 2800mm
Speed 130m/min 130m/min 120m/min 100m/min 100m/min 80m/min
Total power 4kw 4kw 4kw 5kw 5kw 7.5kw

Min.

Slitter-

spacing

130mm 130mm 130mm 130mm 130mm 130mm

Min.

Score-

spacing

130mm 130mm 130mm 130mm 130mm 130mm

Min.

Paper

length

300mm 300mm 300mm 300mm 300mm 300mm

Dimensions

L*W*H

(mm)

2250*770

*1350

2450*770

*1350

2650*770

*1350

3150*770

*1350

3350*770

*1350

3650*770

*1350
