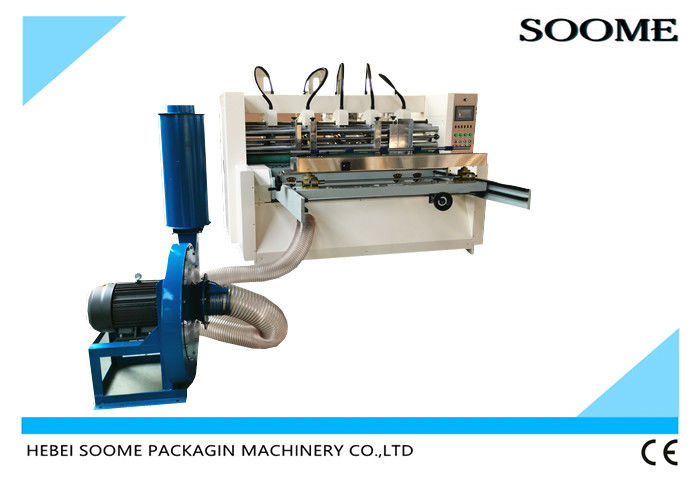

Auto Lead Edge Feeder Thin Knife Blade Slitter Scorer Machine Mulit Color Choose

Basic Information
Place of Origin: Hebei Province China
Brand Name: SOOME
Certification: CE Certification
Model Number: SMBD-ZDSL-2000
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case with plastic film
Delivery Time: 25after depoist
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100per/mounth
Detail Information
Voltage: 220V/380V420V Condition: New
Automatic Grade: Semi-Automatic Packaging Type: Cartons,Film,Case
Application: Machinery & Hardware,Commodity,Food,Beverage After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training
Power: 15kw-75kw Color: Customer's Request
Driven Type: Electric Penumatic Warranty: 1 Year
High Light:

corrugated slitter machine

,

cardboard slitting machine


Product Description

Auto Lead Edge Feeder Thin Knife Blade Slitter Scorer Machine Mulit Color Choose

Automatic suction feeding,saving manpower and labor intensity,preventing cardboard from running askew,and ensuring the safety of staff operation.Axis-adding thin blade slitter scorer machine,because of the use of front and rear double rubber axis design,greatly reduces the length requirements of cardboard,not only meets the cutting size of conventional cardboard,but also can be used for cutting small size cardboard.Electrically adjust the working distance of the cutter,automatically lock,improve work efficiency.



Characteristic:



1: The machine adopts leading edge automatic feeding mode, frequency converter control , labor saving is greatly saved, and the edge of the paperboard with thin knife is smooth and neat, and the corrugation is straight and non -degumming, which improves the quality of the outer tube of the incision.

2: This machine is eight axis machine, It can cut and cut the cardboard without pressing line, it can also cut and press the line board.which greatly improves the working efficiency.

3:There are two kinds of sharpening knives, manual automatic grinding mode, each group of knife can be electrically adjusted, and work independently, saving time and effort. The machine adopts dual frequency conversion control, runs smoothly, low noise, and paper quality is good, so it is an ideal choice for customers.



Detail image:



1.The baffle size for screw sdjustment ,easy to  operate.Can set the paperboard,automatic stop the feeding after finishing.Automatic feeding paper,improve the safe operation,decreased the working load.

2.Slitting part:adopt high quality tungsten steel blade, sharp and long work-life,slice more tidy,non-pressing and non-burr electric adjusted the space of slitter blade,

auto penumatic locking,double guide optical axis,double locking cylinder,stable operation,convenient adjustment.The knife rest build-in polyurethane rubber ,dust prevention,reduce the failure rate.



Technical index:



ZDSL-2000 ZDSL-2200 ZDSL-2500 ZDSL-2800
1800 2000 2300 2600
350 350 350 350
120 (Manual type) 130 (Electric type)
30 (Manual type) 130 ( Electric type)



Electric appliance:



Touch screen WEINVIEW Taiwan
PLC Panasonnic Japan
Circuit breaker SHILIN Taiwan
Electric relay Schneider France
Push-button ABB Switzerland
Main motor Yongshun Guangzhou
Actuator YANKONG CHINA
Driving motor YANKONG CHINA
Decelerator YONGKUN Taiwan
Photosensor OMRON Japan
Proximity switch OMRON Japan
Air cylinder Tianao China

Auto Lead Edge Feeder Thin Knife Blade Slitter Scorer Machine Mulit Color Choose 0

Auto Lead Edge Feeder Thin Knife Blade Slitter Scorer Machine Mulit Color Choose 1

Auto Lead Edge Feeder Thin Knife Blade Slitter Scorer Machine Mulit Color Choose 2

Auto Lead Edge Feeder Thin Knife Blade Slitter Scorer Machine Mulit Color Choose 3
