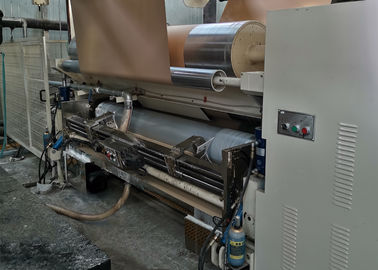

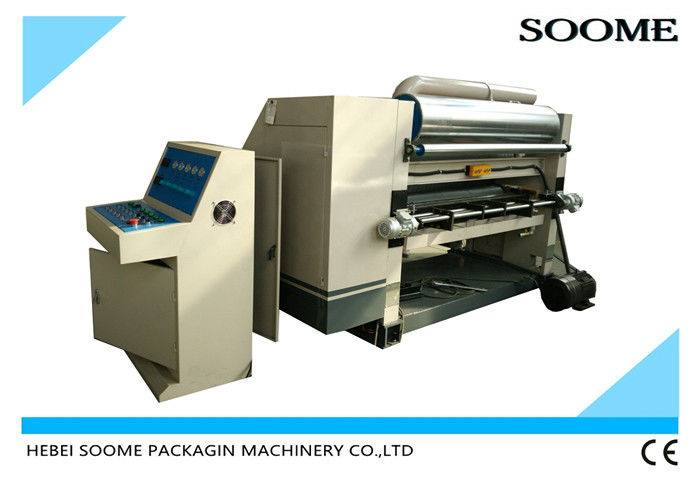

Single Face Automatic Corrugation Machine With Oil And Steam Controlling

Place of Origin Made in China
Brand Name SOOME
Certification CE
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details wooden case or film
Delivery Time 14 days after deposit
Payment Terms L/C, T/T, MoneyGram
Supply Ability 30 sets per month
Product Details
Brand Name SOOME Condition New
Machine Type Corrugated Paper Making Heating Source Steam/oil
Max.Design Speed 100-200m/min Work Width 1600mm/1800mm/2000mm/2200mm
High Light

cardboard manufacturing machine

,

corrugated box manufacturing machine

Leave a Message
Product Description

Single Face Automatic Corrugated Machinery With Oil And Steam Controlling

1. Summarize



Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The production line
consists of the mill roll stand, liner( medium paper ) pre-heater, single facer machine, conveyor bridge , gluing machine, double facer machine, slitter scorer, cut-off, conveyer and stacker, heating system, air compression system and glue making system and so on.



2. Features and Characteristics



1) Design speed :120-180m/min
Effective width:1400-2500mm

2) Corrugated roller diameter:

  Vacuum suction type pulling cardboard with wind control device.

3) Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.
Used gimbal drive with independent gear box, transmission more stable, close style gear transmission oilness lubricated, prolong
the use life of gear.

4) The upper corrugating roller, pressure roller and glue roller adopt pneumatic control.



3. Technical Parameters



Type G-150/C-150/A-150/O-220
Dia.of flute roller 280mm/320mm/360mm/380mm
Work width 1600mm/1800mm/2000mm/2200mm
Heating source oil/steam/electricity
Voltage 380
Speed customized
