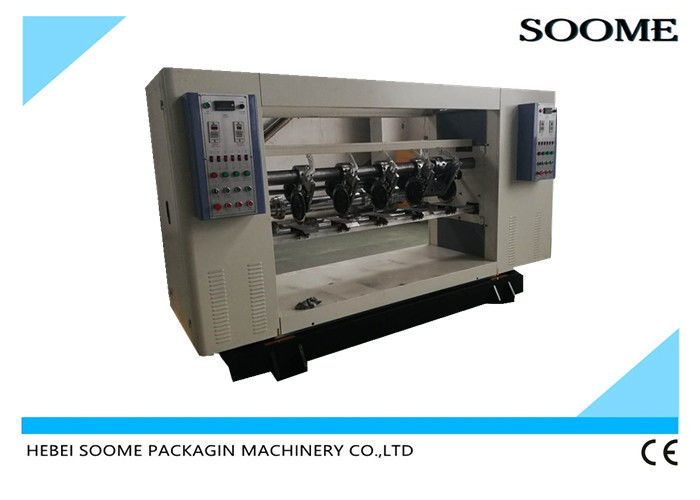

Automatic Feeder Thin Blade Slitting Machine Corrugated Cardboard Making

Basic Information
Place of Origin: Made in China
Brand Name: SOOME
Certification: CE
Model Number: YSBD-ANC
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or wooden case
Delivery Time: One month after deposit
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 30 sets/month
Detail Information
Type: Paper Cutting Automatic Grade: Automatic
Application: Machinery & Hardware Driven Type: Electric
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Free Spare Parts, Video Technical Support, Field Installation Condition
Voltage: 220V/380V/440V Packaging Material: Wood, Film
High Light:

cardboard manufacturing machine

,

corrugated box manufacturing machine


Product Description

Automatic Feeder Corrugated Cardboard Making Thin Blade Slitting Machine



Summarize



This kind of thin blade slitter scorer machine was controlling the operation of the machine by electric. Electric-controlling can adjust the thin blades and scorers right around the left, the thin blades were controlled up and down by computerized screen.



Features



1. Adopt high quality tungsten steel blade, sharp and long working life, slice more tidy, non-pressing and non-burr.

2. Slitters and scorers are inverter controlled, speed synchronizes with board speed.

3. Electric score-depth adjust.

4. Alloyed steel thin-blades, sharp and long life of over million meters, auto sharpening.

5. Standard motorized body left-right rectification system.

6. Individual sealed electrical cabinet, dust-free,constant temperature and humidity ensure longer life.



Function and Characteristic



1. The convex flattening adopts dymatic optical axis, full-plate printing without drag marks.

2. Adopt 5 points scoring, scoring disance in-phase adjust, blazonry and easy to bend the carton sheet.

3. Single screw structure, less zero return origin, simple maintenance, small errors.

4. Two scheduling modes: fast scheduling and zero scheduling.

5. The machine has compact structure, small vibration and long service life.



Technical Index



Type SMBD-HY-1800 SMBD-HY-2000 SMBD-HY-2200 SMBD-HY-2500
Effective width 1700mm 1900mm 2100mm 2400mm
Speed 80m/min 80m/min 80m/min 80m/min
Blade configuration 4~6 baldes 4~6 blades 4~6 blades 4~8 blades
Press line wheel 6~10 lines 6~10 lines 6~10 lines 6~14 lines
Min slitting width 120mm 120mm 120mm 120mm
Min.indentation width 30mm 30mm 30mm 30mm
Correction scope 200mm 200mm 200mm 200mm
Total power 4kw 4kw 4kw 4kw
Size of machine 2440*900*1620 2640*900*1620 2840*900*1620 3140*900*1620

Automatic Feeder Thin Blade Slitting Machine Corrugated Cardboard Making 0
