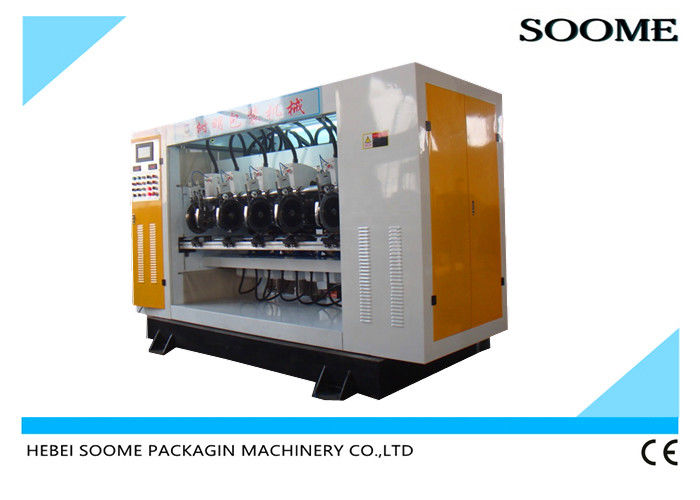

Reliable Automatic Corrugation Machine , Electric Blade Penumatic Slitter Scorer Machine

Basic Information
Place of Origin: Hebei Province China
Brand Name: SOOME
Certification: CE Certification
Model Number: SMBD-DDSJ1800
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Reliable Automatic Corrugation Machine , Electric Blade Penumatic Slitter Scorer Machine packing by wooden case with plastic film
Delivery Time: 24 days after depoist
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100per/mounth
Detail Information
Application: Machinery & Hardware,Medical,Commodity,Food,Chemical Voltage: 220V/380V
Packaging Type: Cartons,Case,Film Usage: Slitting And Creasing Machine
Design Speed: 120/150m/min After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Free Spare Parts,Video Technical Support,Field Installation
Driven Type: Electric And Pneumatic Condition: New
Model: 1800/2200/2500 Blade Texture: Tungsten Steel Alloy
High Light:

cardboard manufacturing machine


corrugated box manufacturing machine

Product Description

Electric Blade Penumatic Slitter Scorer Machine Client Choose The Device Color

It is mainly to use in the corrugator or corrugated board production line to slitte and creas the board.


Brief Introduction:


Adopt the scheduled pressure paper feeding which is stably.

Adopt thin knife separate cutting (The thickness is only 1 mm.). To make sure the separate-cut corrugated board smooth and tiny, we installed with automatic and hand grinding wheel grinding to keep the blade edge sharp.

After pre-pressing, separate cutting and creasing the paperboard to accomplish the requirement of the product. The pressed trace does not arouse the trace tearing phenomenon.

We can provide the thin knife paper-partitioning machine for transforming the corrugated board producing line


Machine Features:


1. Operating distance between electric adjust cutter and pressing line, pneumatic lifting cutter, penumatic lifting line, automatic locking.

2. Alloyed steel thin-blades, sharp and long life of over million meters, auto sharpening.

3. Socring parts:adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bendd the carton sheet.

4. Pre-pressed paper feeding insures the stable papers transmit.

5. Thin edge slitting with automatic and manual grindstone grinding to keep edge sharp and make slit paper smooth and tidy.

6. Press lines on slit pre-pressed paper board ensure the original lines without crack.

7. The thin edge slitter used for corrugated board production line can be provided.

8. The machine can be provided to corrugated paperboard production line.

9. With special alloy knives, long life for using.




1. Electric and pneumatic blade

2. Eleciric and pneumatic scorer

3. Fast changing order system,high efficient and precision

4. Keep track of speed

5. Automatic grinding,optional:suction waste

6. Up and down pressure line synchronous adjustment,down pressure line can be fine-tuned


Technical index:


Model 1800 2200 2500
Efficient width 1850mm 2250mm 2550
Min. slitting width 120mm
Min. creasing width 120mm
Blade model Φ260*158*1.3mm
Creasing roller model (up)φ162mm(down)φ162mm
Correction range ±100mm
QTY of blade/scorer 5/8 6/10 7/12
Power 8kw 10kw 11kw
Depth of creasing 0-12mm
Design speed 120/150/180 m/min
Types of scorer Five-point press /three-point press/ convex-to-flat press/ multi-press
